Economic Pallet Truck 3000 Kg Nylon Wheel

Product Description

Economic Pallet Truck 3000 kg nylon wheel

Hand pallet truck also known as manual pallet truck, hand pallet truck when use the carrying
goods fork into the tray hole,by the ability to drive hydraulic system to realize the pallet load
lifting and falling, and pulled by human complete handling operations.
2.It is the simplest and most effective tray in the transport, the most common type of loading
and unloading, handling tools,widely used in logistics,warehouses, factories, hospitals, schools,
shopping malls, airports, stadiums, station, airport and so on

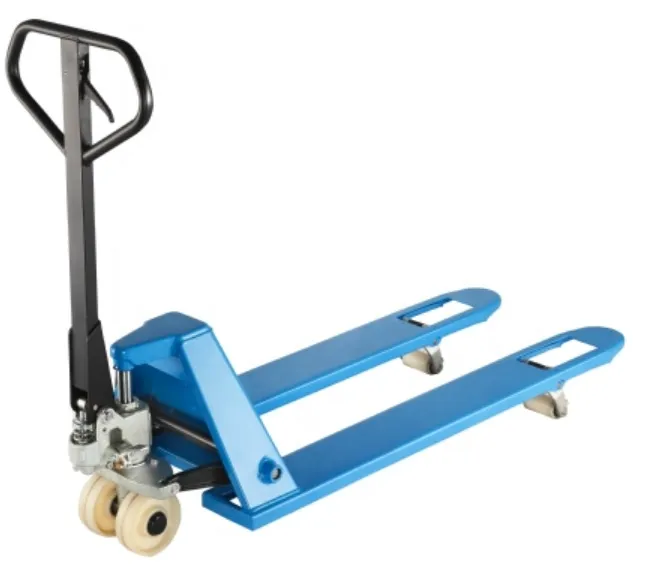

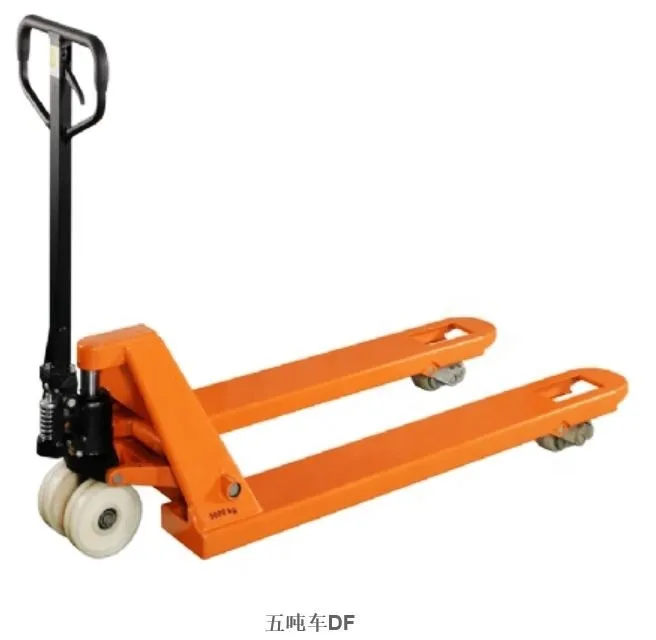

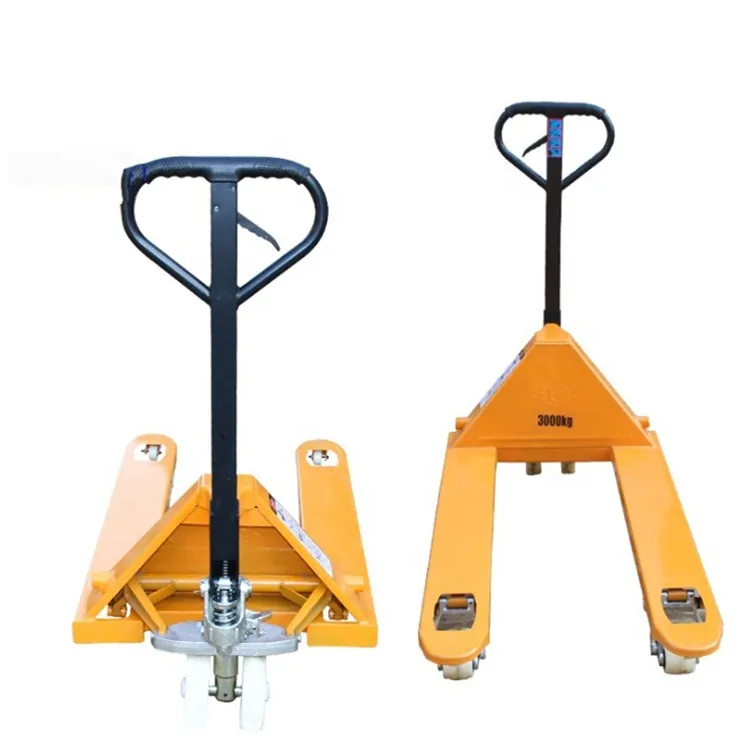

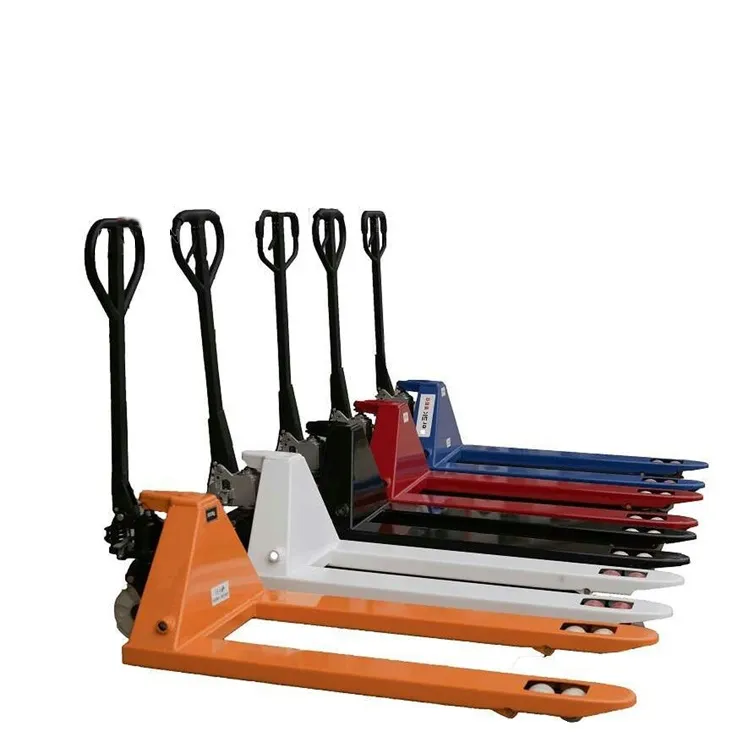

Pallet truck pics as belows:
Economic Pallet Truck 3000 Kg Nylon Wheel

Pallet truck Product Introduction:

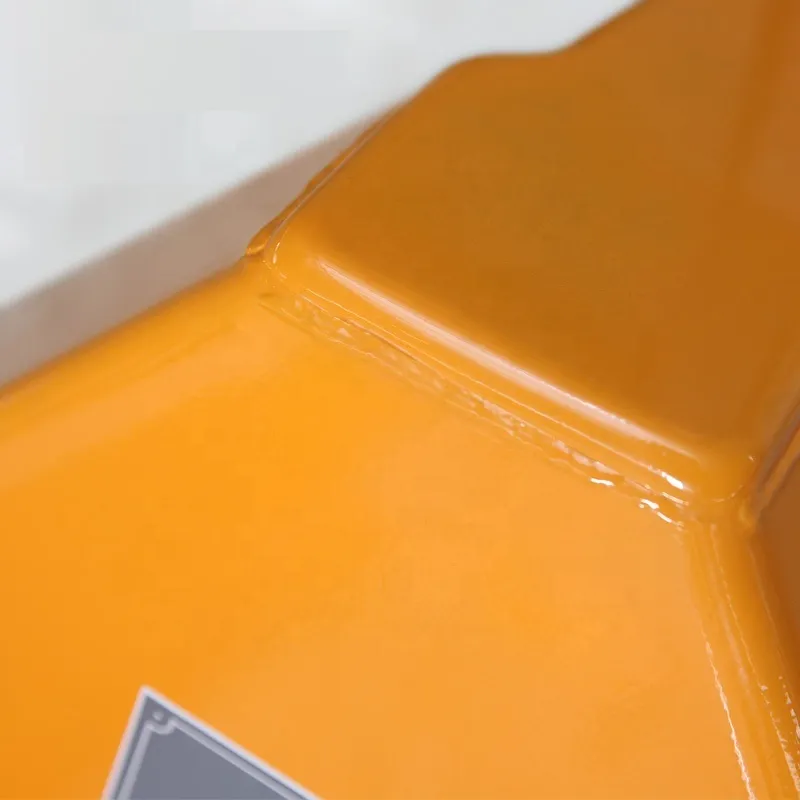

1. Make of high quality Steel, with electrostatic spray surface treatment.

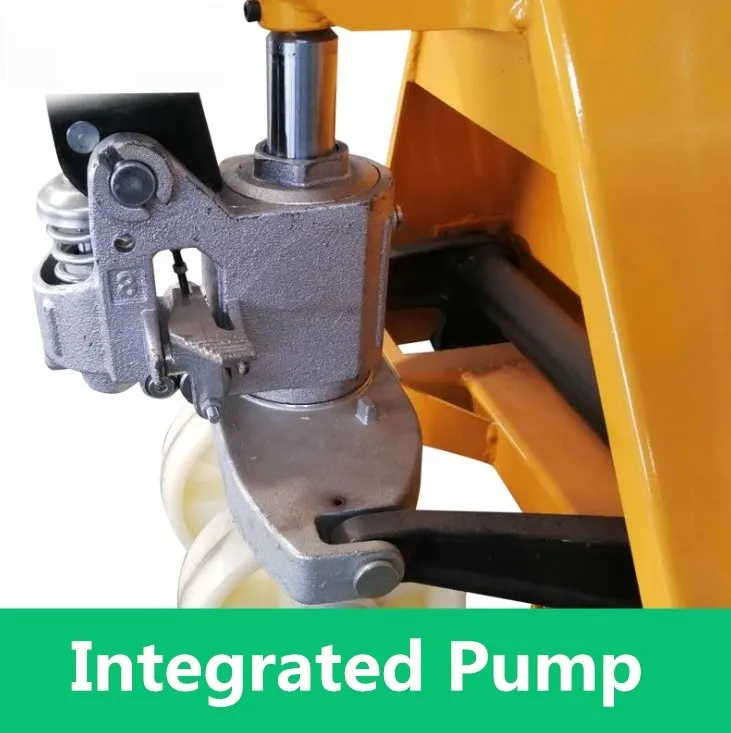

2. Integral casting hydro-cylinder, elegant, firm and durable.

3. Imported original seal ring, long service life. Chrome-plating piston rod.

4. Install overflow valve with overload protection. It can effectively avoid overload when using, lower the repair cost.

5. The moving part is fitted with alloy bushing block. It can absorb unbalance loading, wear resistant, extend the service life and easy to replace.

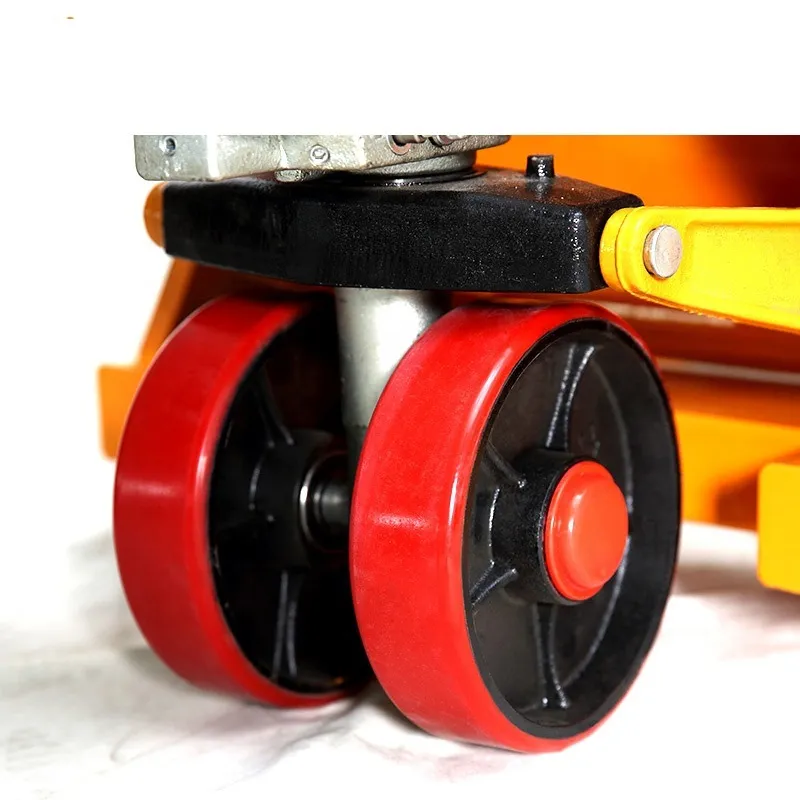

6. Integral casting wheel carrier. Equip with double front wheels, strong loading capacity.

7. Install front and rear guiding wheels, protect the front wheels from the impact, extend the wheels service life.

Product parameter as belows:

Model	CBY.AC 2.0	CBY.AC 3.0	CBY.AC 5.0
Lifting capacity (kg)	2000	3000	5000
Lowered fork hight (mm)	80	80	80
Max height hight (mm)	190	190	190
Fork size (mm)	55*160	55*160	55*160
Width of fork size (mm)	550/685	550/685	685
Length of forks(mm)	1100/1200	1100/1200	1200
Steering wheel(mm)	70*80	70*80	70*80
Foont wheel(mm)	50*180	50*180	50*180
Self weight (kg)	62-70	65-72	180
