Product Description

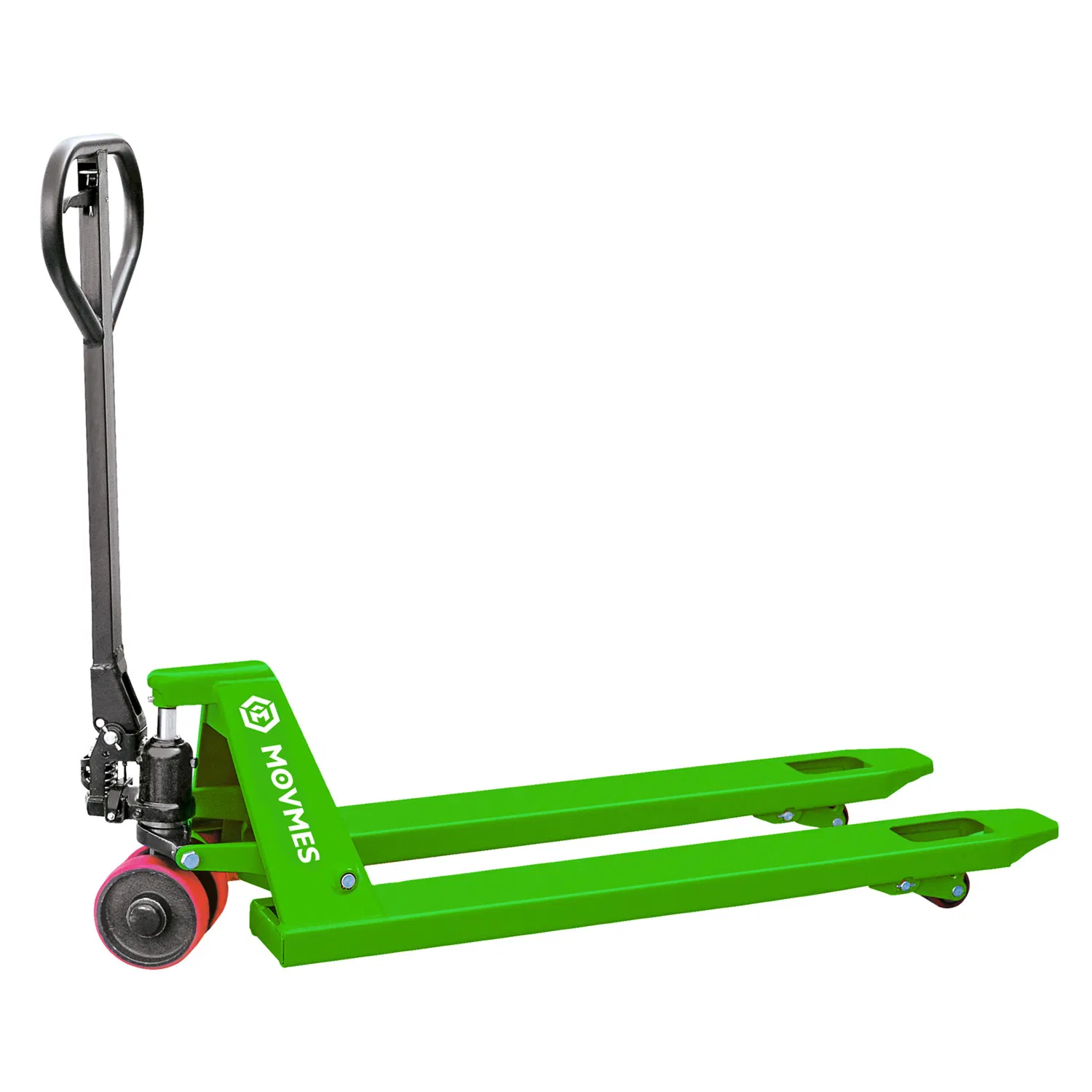

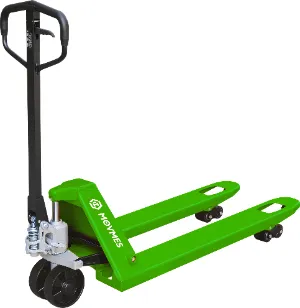

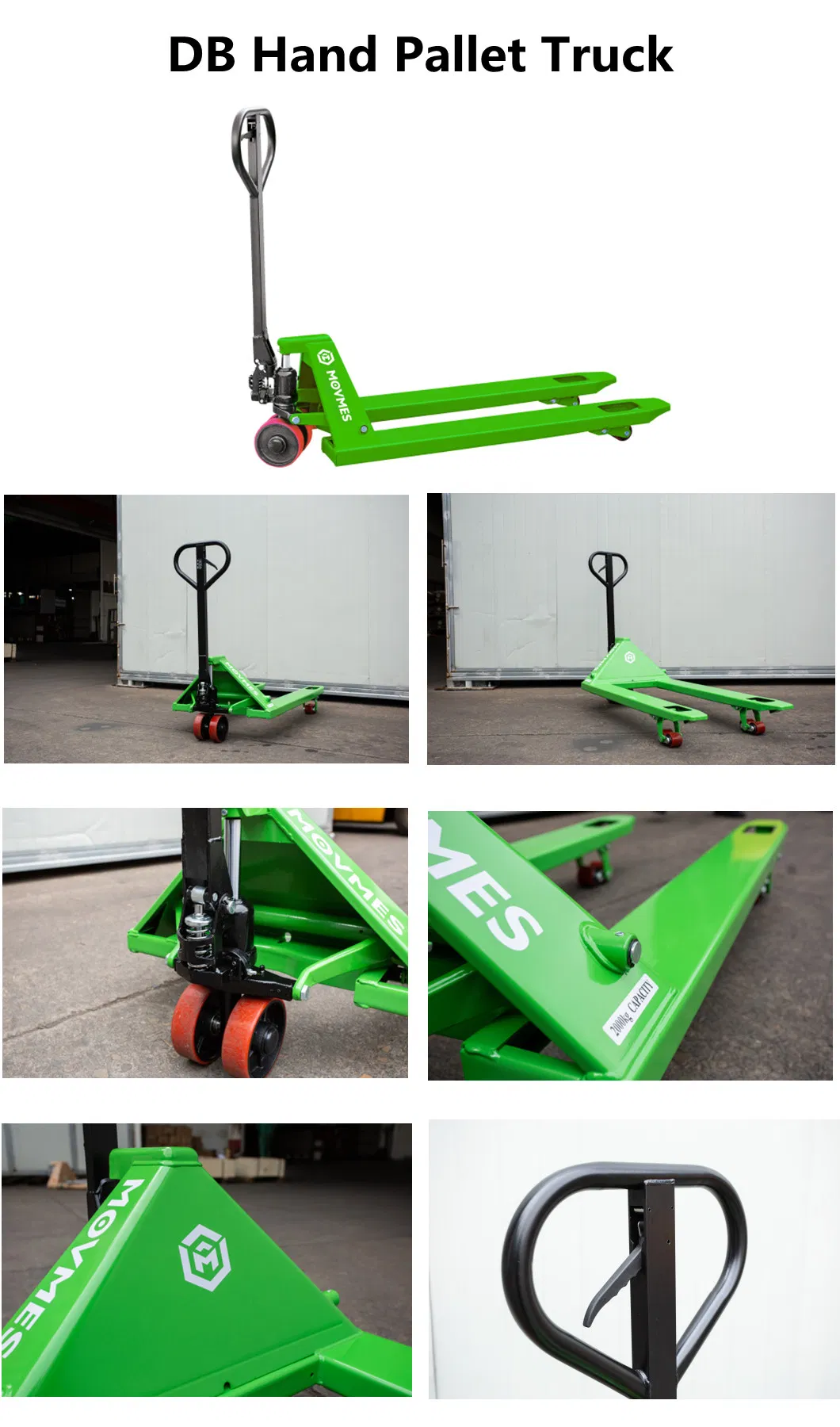

Hot selling hand pallet truck with 1150/1220 mm Fork Length

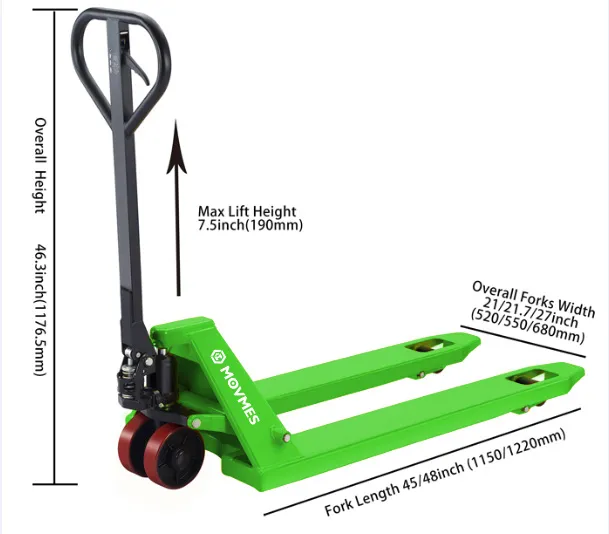

Parameter
| Model | DB | |
| Capacity | Q(kg) | 2000 |
| Lowered fork height | h13(mm) | 75 |
| Steering wheel | mm | Dia160 |
| Fork wheel single | mm | Dia70x80 |
| Fork wheel tandem | mm | Dia70x60 |
| Max.lift height | h3(mm) | 190 |
| Total height | h14(mm) | 1176.5 |
| Overall length | I1(mm) | 1520/1590 |
| Fork length | I(mm) | 1150/1220 |
| Width overall forks | b5(mm) | 520/550/680 |
| Ground clearance,centre of wheelbase | m2(mm) | 22 |
| Aisle width for pallets 1000x1200 crossways | Ast(mm) | 1720/1790 |
| Aisle width for pallets 800x1200lengthways | Ast(mm) | 1770/1790 |
| Turning radius | Wa(mm) | 1265/1335 |
| Service weight(with battery) | Kg | 53-62 |

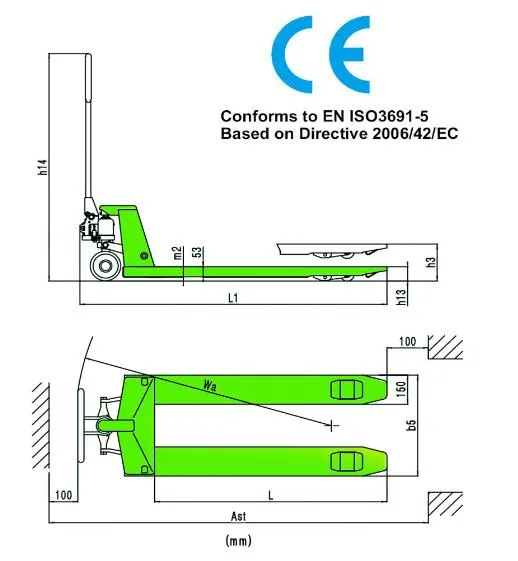

Design Drawing
MOVMES has the professional design team.While reducing costs, we are committed to every small features to improve work efficiency, reduction of safety risks for employee and improve customer utilization.
Advantages:
Economic design pallet truck
1).Standard epoxy powder coat finish which is resistant to chips and normal corrosion.
2).Exceptionally strong but light weight steel construction,service weight is only 55kgs.

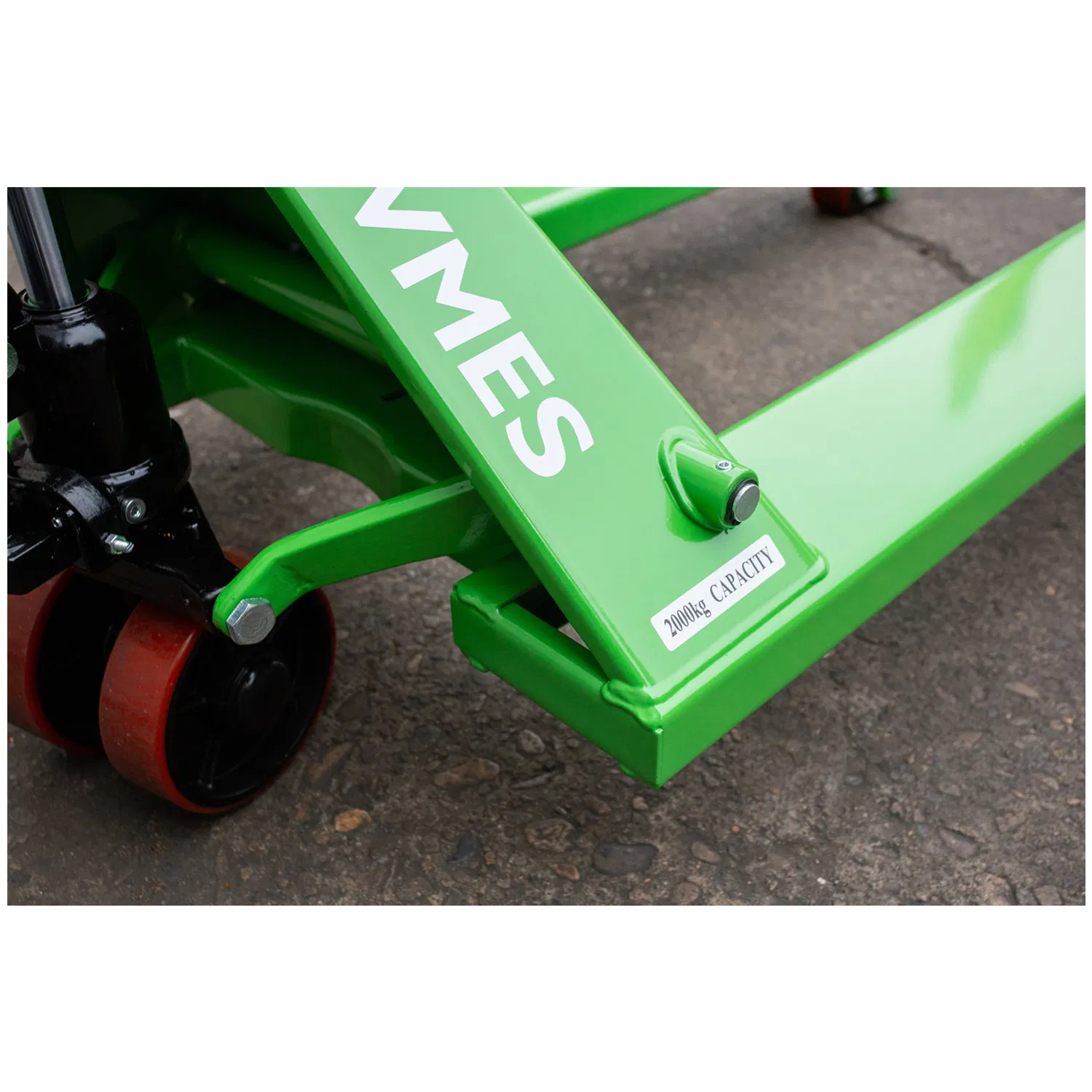

3).With welded joints and reinforced fork tips for most durability in the toughest applications.

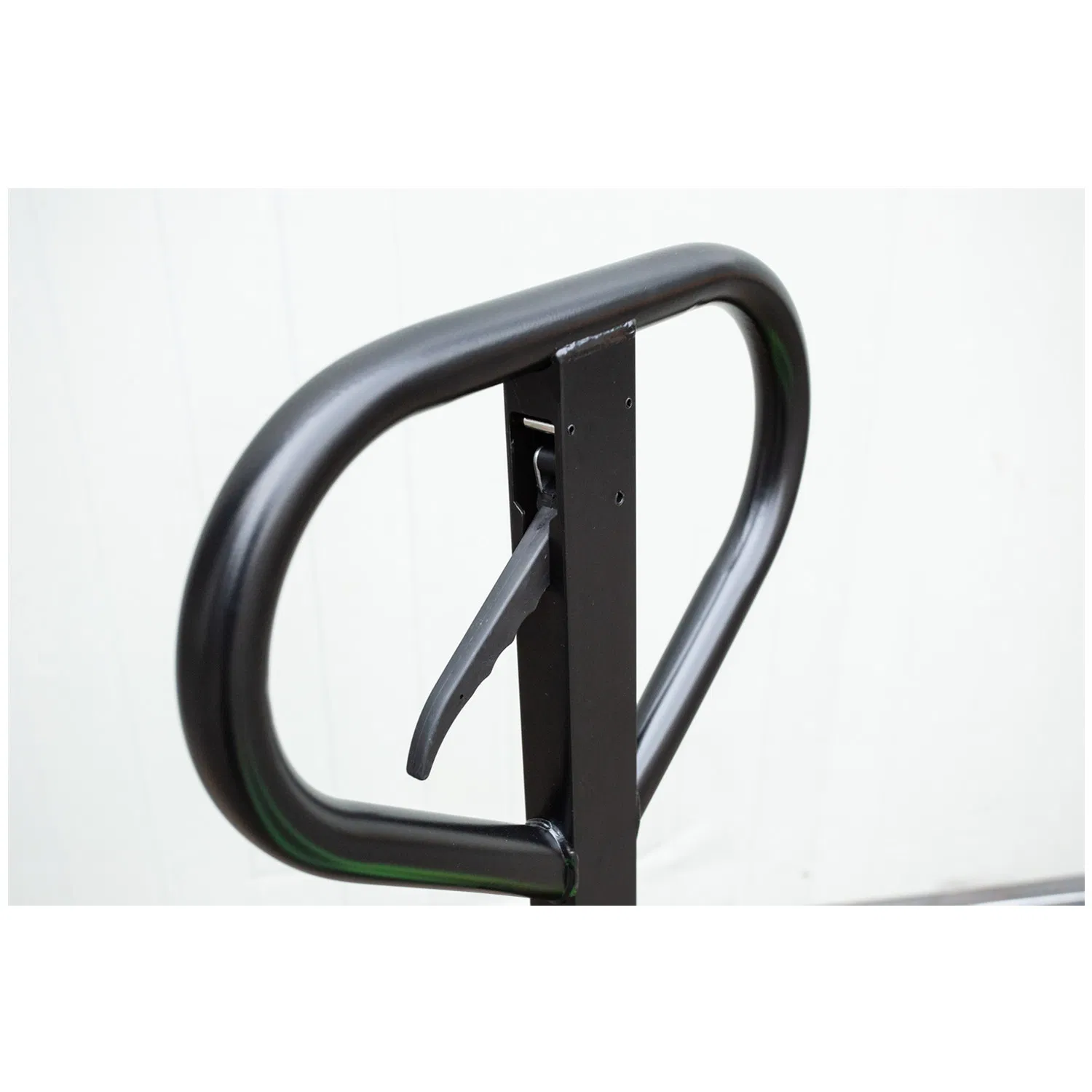

4).3 position hand control -raise,lower,neutral.
5).Excellent turning angle of 190 degrees facilities.
6).Number of pump strokes 12 times,lift height per stoke 11mm.
7).Reliable oil leak-proof hydraulic system.
Option:1)nylon wheel ,polyurethane wheel ,rubber wheel ,single fork roller or tandem fork roller.
2).Fork length:800mm,900mm,1000mm,1100mm
 | |
 | |
 |

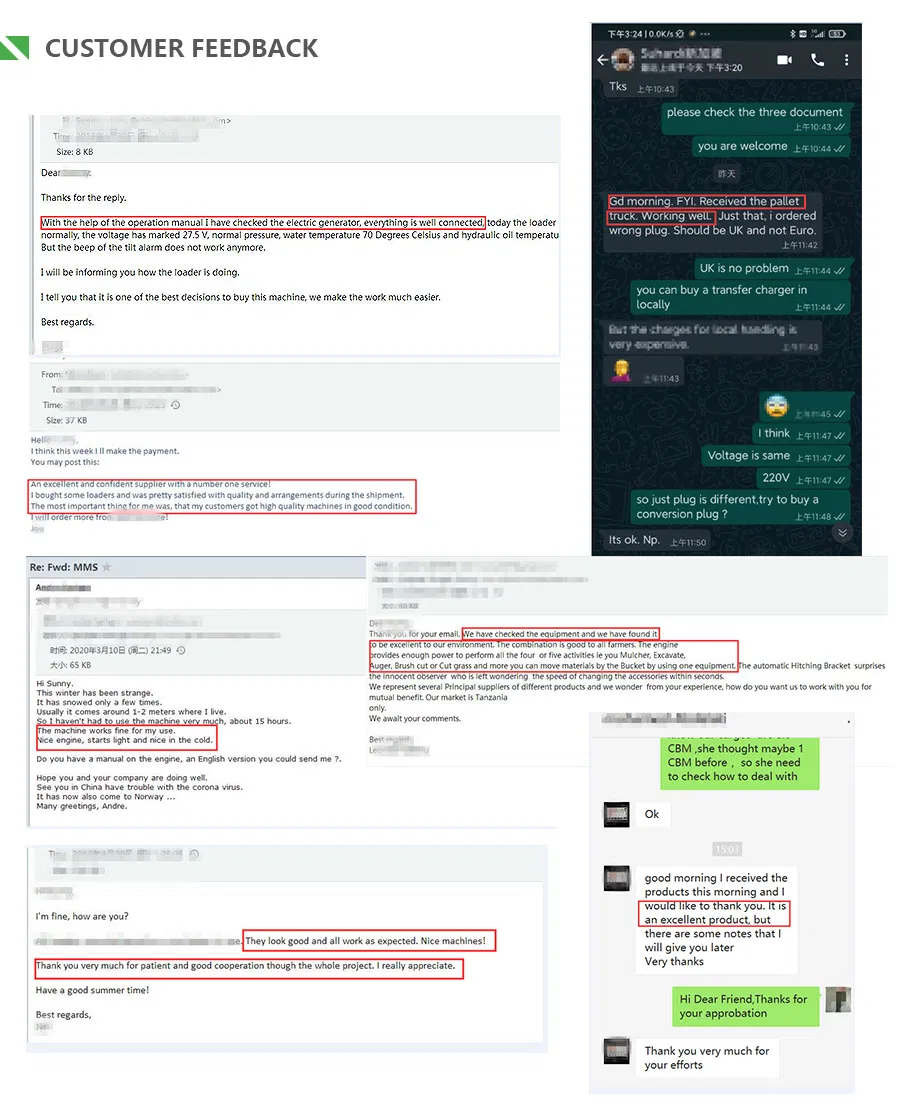

Customer Feedback
Certification:
ISO9002:1995
ISO9001:2008(Quality management system)
ISO14001:2004(Environmental management system)
OHSAS18001:2007(Occupational Health and Safety management system)
We got TUV/GS/CE certificate for hand pallet truck early in 1991,who was the first manufacture in China.For material handling equipment of Manual Lift Trucks and Electric Lifting Trucks,up to 90% products have approved CE certificate from TUV,our products have approved CE standards of EN3691-5:2014 and EN3691-1:2012

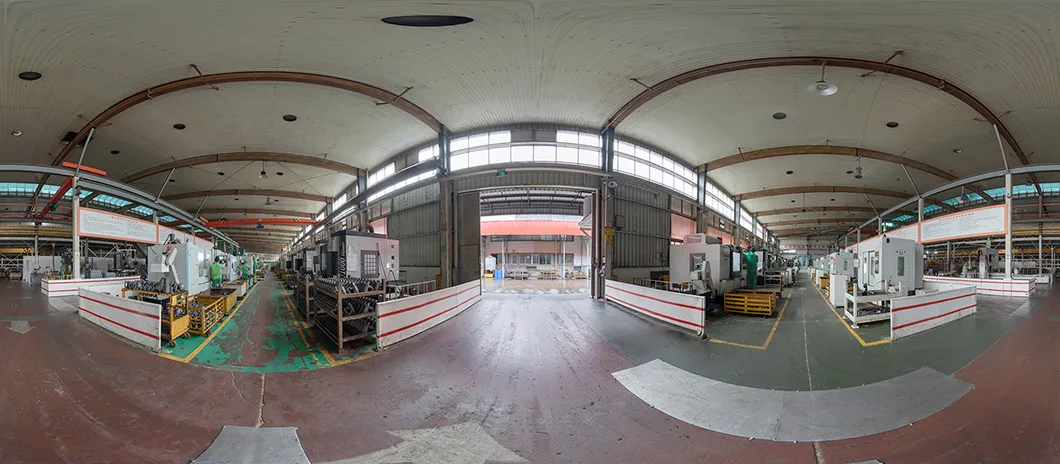

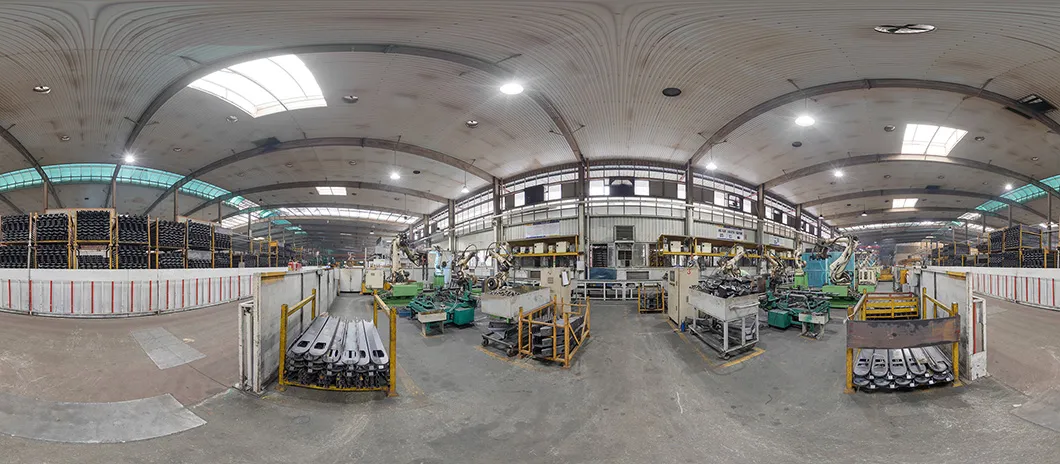

Prodection Process
Tesing System
Product test before delivery:
Total five test items:
1.Strengthening test detection
2.Stability detection
3.Detection of climbing performance and current
4.Debugging and testing of braking performance
5.Testing of technical parameters

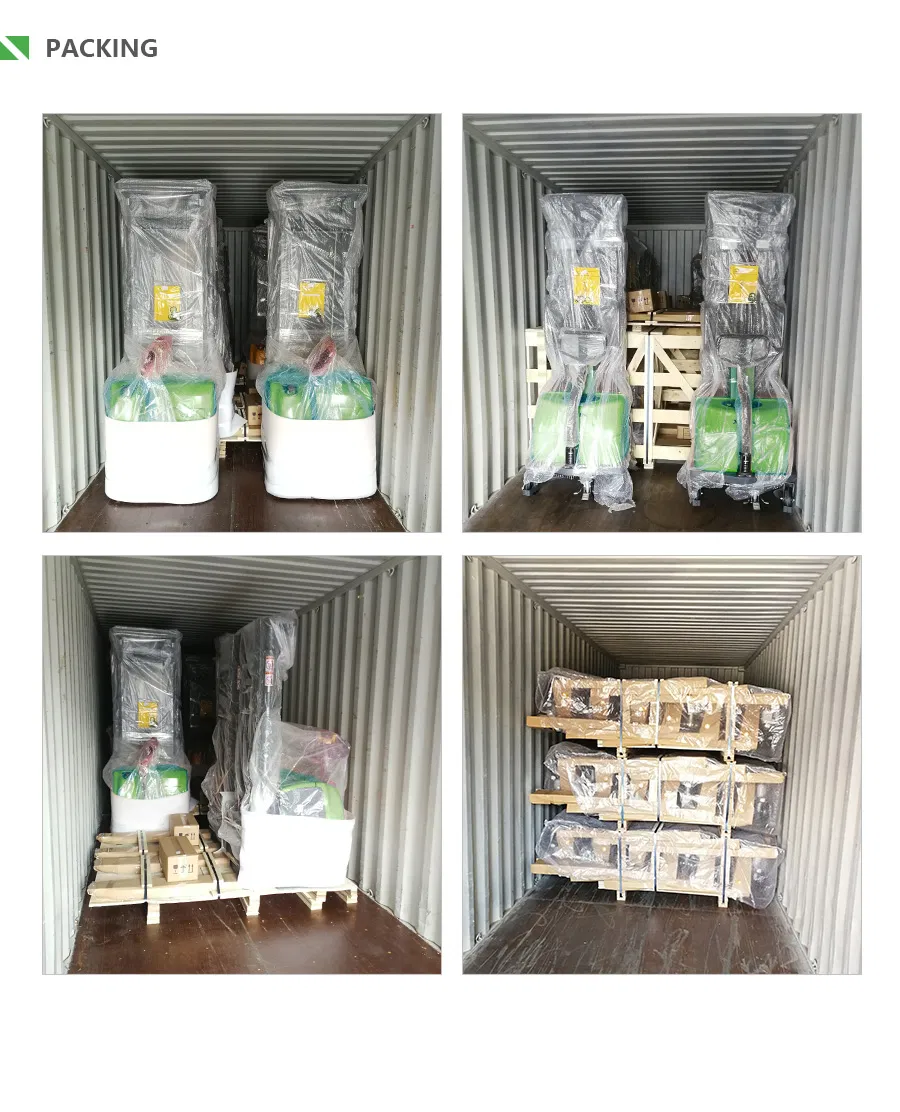

Strong Packing
MOVMES according to the delivery requirements of each customer, we carefully package each TRUCK. Before delivery, we will take photos and videos, and only after getting the customer's approval will we send them away.
Usually MOVMES producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q1: How about the continuous working time for the electric truck series ? And How long time to charge the battery full ?
A1: MOVMES battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 3--6 hours to charge the battery.
Q2: What's the specification of the chargers?
A2: Our chargers voltage could be 24V /48V ,Side-way battery with roll-out system is very convenient replacement. Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.
Q3: Can MOVMES provide customized products? OEM or ODM products?
A3: Yes, Since 1985,MOVMES is always professionally in developing and producing warehouse logistic equipment ,such as manual/electric pallet trucks&slackers, reach trucks, forklifts and so on.We do OEM for Toyota/ Jungheinrich/ Clark / Hyster / Yale etc.
Q4: How long is the Warranty for MOVMES product?
A4: MOVMES provides one year warranty.During the warranty period we provide wearing parts for free which are damaged by non-human.
