How to Size a Hydraulic Cylinder: A Complete Guide

Introduction

Hydraulic cylinders are essential components in various industrial and mobile applications, including construction machinery, manufacturing equipment, and material handling systems. Proper sizing of a hydraulic cylinder is critical to ensuring efficient operation, optimal force generation, and system longevity. In this guide, we will walk through the key factors involved in sizing a hydraulic cylinder correctly.

Key Considerations for Sizing a Hydraulic Cylinder

1. Determine the Required Force

The primary function of a hydraulic cylinder is to generate force to move a load. The force a cylinder can produce is calculated using the formula:

F = P *A

Where:

- F = Force (in pounds or Newtons)

- P = Hydraulic pressure (in PSI or bar)

- A = Piston area (in square inches or square centimeters)

To determine the required force:

- Consider the weight or resistance that needs to be overcome.

- Factor in friction, load variations, and safety margins (typically 10–20%).

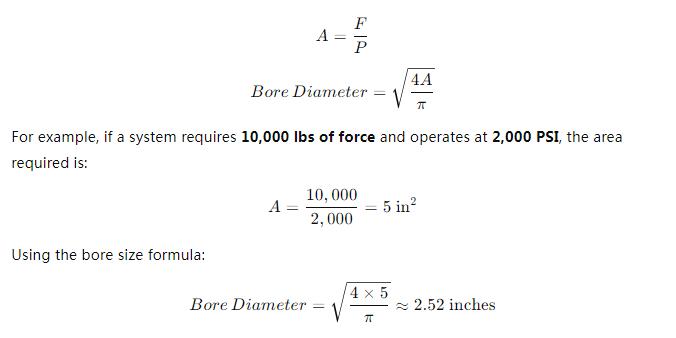

2. Calculate the Bore Size

The bore size (diameter of the piston) determines the cylinder’s force output. To find the necessary bore size:

3. Select the Right Rod Diameter

The rod diameter affects the cylinder’s strength and stability. Choosing a rod that is too thin can lead to buckling under compression loads. The appropriate rod size depends on:

- Cylinder stroke length (longer strokes require larger rods).

- Load conditions (higher loads need thicker rods).

A general rule:

- For strokes less than 36 inches, rod diameter should be at least 1/2 of the bore diameter.

- For strokes greater than 36 inches, rod diameter should be at least 2/3 of the bore diameter.

4. Determine the Stroke Length

The stroke length is the distance the piston travels between its fully retracted and extended positions. Consider:

- Required range of motion for the application.

- Space constraints for retraction and extension.

- Safety factors to prevent over-extension or bottoming out.

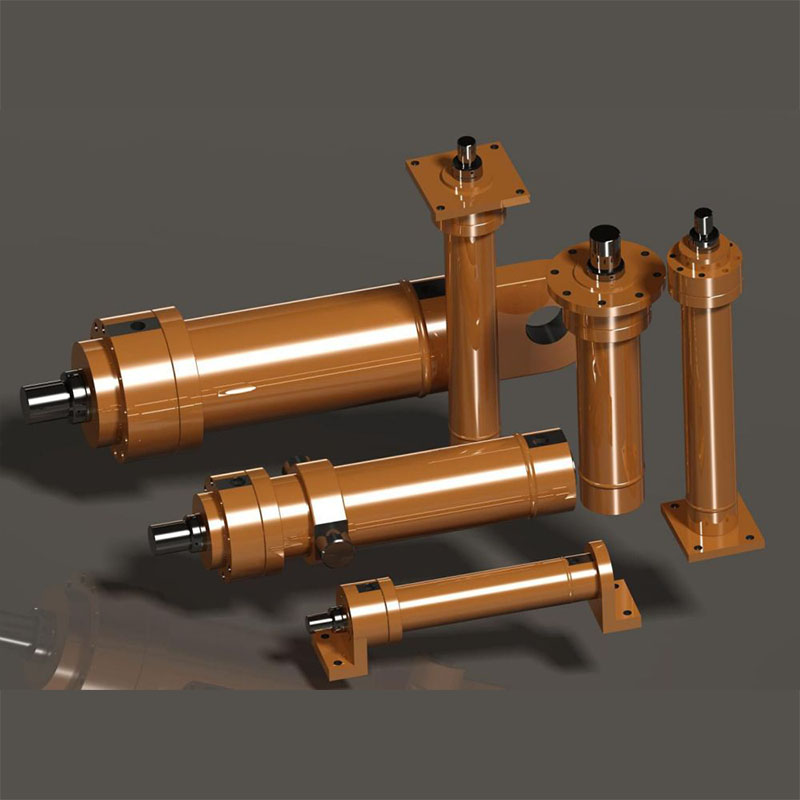

5. Consider Mounting Options

Mounting style affects the cylinder’s performance and alignment. Common types include:

- Flange Mounts – Provide a rigid connection for heavy loads.

- Clevis Mounts – Allow pivoting and angular movement.

- Trunnion Mounts – Used for applications requiring rotational movement.

6. Check Speed and Flow Requirements

Cylinder speed depends on the hydraulic pump’s flow rate:

Velocity=FlowRate/PistonArea

Ensure the hydraulic system can provide adequate flow for the desired speed.

Final Thoughts

Properly sizing a hydraulic cylinder ensures efficiency, safety, and durability in any application. By considering force, bore size, rod diameter, stroke length, and mounting options, you can optimize cylinder performance and extend its lifespan.

Would you like help choosing a hydraulic cylinder for a specific application? Let me know!
