Understanding Plate Heat Exchangers: Efficiency, Design, and Applications

In the realm of industrial processes and HVAC systems, heat exchangers play a pivotal role in transferring heat from one medium to another. Among the various types of heat exchangers, the Plate Heat Exchanger (PHE) stands out for its efficiency, compact design, and versatility. In this blog, we will delve into the fundamentals of Plate Heat Exchangers, their working principles, design features, and applications across different industries.

What is a Plate Heat Exchanger?

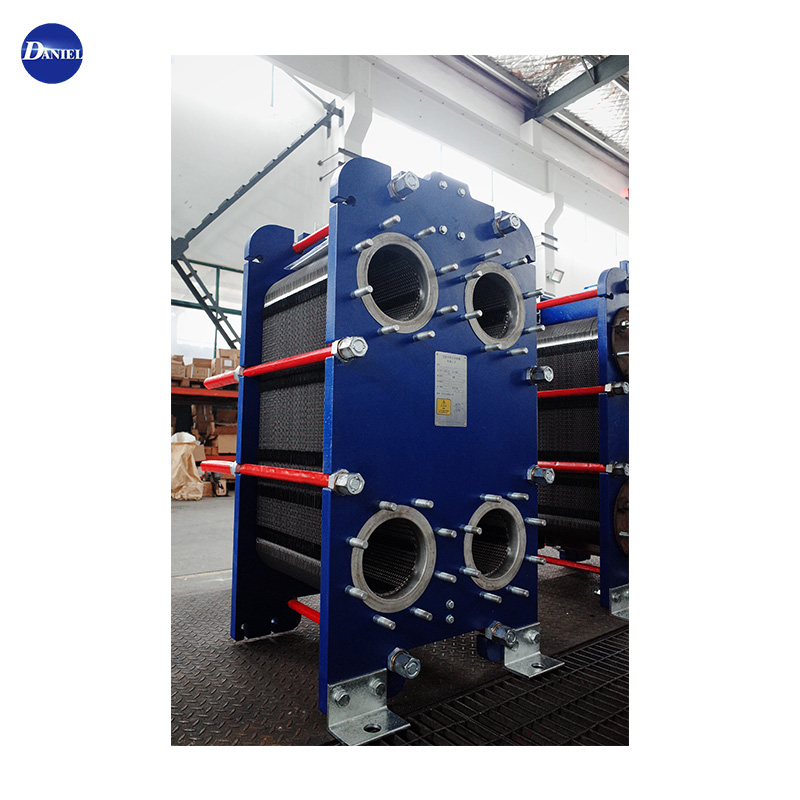

A Plate Heat Exchanger (PHE) is a type of heat exchanger that uses metal plates to transfer heat between two fluids. Unlike conventional heat exchangers, which rely on tubes, PHEs leverage the large surface area of plates to achieve efficient heat transfer. This design enables PHEs to handle high thermal loads in a relatively small footprint.

Working Principle

The basic working principle of a Plate Heat Exchanger involves the alternating arrangement of metal plates, which are separated by gaskets or seals. Fluids flow in counter-current paths on either side of each plate. The high surface area of the plates allows for efficient heat transfer between the fluids without mixing them. The design also ensures that temperature gradients are minimized, optimizing the heat exchange process.

Design Features

1. Plates: The plates are typically made from stainless steel or other corrosion-resistant materials. They are often corrugated to increase surface area and turbulence, enhancing heat transfer efficiency.

2. Gaskets: These are placed between the plates to prevent leaks and ensure the fluids remain separate. The choice of gasket material depends on the operating temperature and the nature of the fluids involved.

3. Frame: The plates are held together in a frame, which can be tightened or loosened to adjust the heat exchanger's capacity. This modular design allows for easy maintenance and scalability.

4. Flow Configuration: PHEs can be configured in various flow arrangements, such as parallel flow, counter-flow, and cross-flow, depending on the specific application requirements.

Advantages of Plate Heat Exchangers

1. High Efficiency: The large surface area of the plates enables efficient heat transfer, reducing energy consumption.

2. Compact Size: PHEs offer a high heat transfer rate in a compact design, saving valuable space in industrial setups.

3. Flexibility: The modular design allows for easy maintenance, expansion, and customization.

4. Cost-Effective: Lower material costs and reduced energy consumption contribute to the overall cost-effectiveness of PHEs.

Applications

Plate Heat Exchangers find applications across a wide range of industries due to their versatility and efficiency:

1. HVAC Systems: Used for heating, cooling, and ventilation in residential, commercial, and industrial buildings.

2. Food and Beverage: Essential in pasteurization, sterilization, and other thermal processes.

3. Chemical Processing: Utilized for heat recovery, condensation, and cooling in chemical plants.

4. Power Generation: Employed in waste heat recovery and cooling of power generation equipment.

5. Marine Applications: Used in ship cooling systems and desalination processes.

Conclusion

Plate Heat Exchangers are a vital component in many thermal management systems, offering high efficiency, compact design, and flexibility. Their ability to handle diverse applications makes them a preferred choice in various industries. As technology advances, we can expect further innovations in PHE design and materials, enhancing their performance and expanding their applicability.
