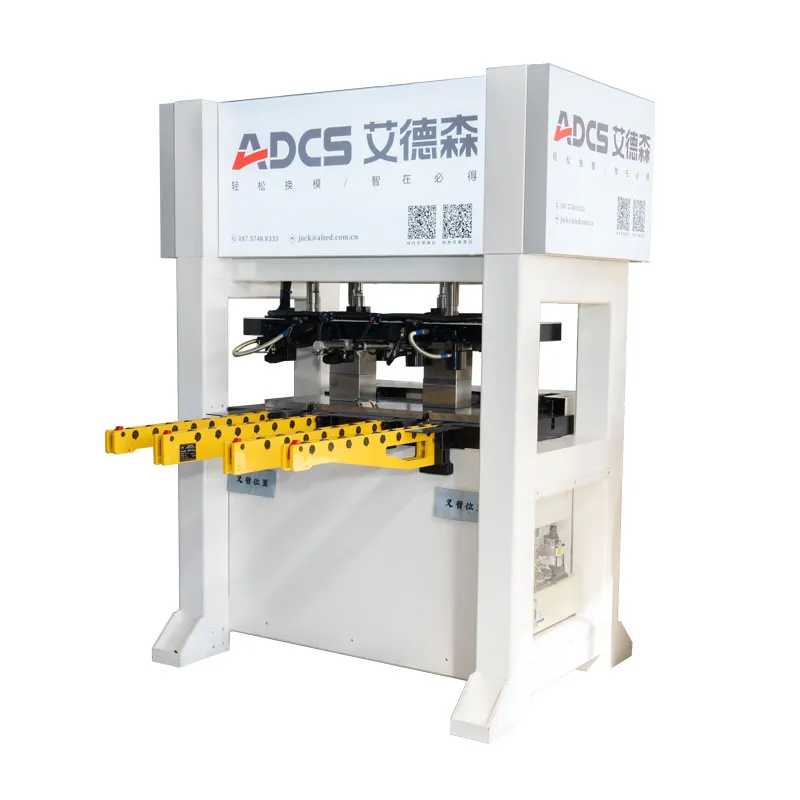

Understanding the Quick Die Change System: Revolutionizing Manufacturing Efficiency

In the fast-paced world of manufacturing, efficiency is key to staying competitive. One of the most significant advancements in this realm is the Quick Die Change (QDC) system. Designed to minimize downtime and maximize productivity, QDC systems have become essential in various industries, particularly in automotive, metal stamping, and plastic molding. This blog will explore how the Quick Die Change system is revolutionizing manufacturing processes and why it's a game-changer for businesses aiming to boost efficiency.

1. What is a Quick Die Change System?

A Quick Die Change system is a set of techniques, equipment, and procedures that enable the rapid changeover of dies in manufacturing processes. Traditional die changeovers can be time-consuming, often requiring hours of manual labor. QDC systems significantly reduce this time, sometimes to just a few minutes, by streamlining the changeover process through automation and standardized procedures.

2. How Does It Work?

The core of a QDC system lies in its ability to automate and simplify the die change process. Here’s how it typically works:

- Die Clamping: Hydraulic or magnetic clamping systems are commonly used to secure the die in place. These systems are designed for quick release and easy re-clamping, allowing for faster die changes without the need for manual adjustments.

- Die Lifters: These are integrated into the press bed, allowing the die to be easily moved in and out of position. Die lifters can be powered by hydraulic, pneumatic, or electric systems, facilitating smooth and rapid movement.

- Roller or Sliding Rails: To further ease the movement of the dies, roller or sliding rails are often installed, enabling workers to slide the die into position with minimal effort.

- Positioning Systems: Automated positioning systems ensure that the new die is correctly aligned, eliminating the need for manual adjustments and reducing the risk of errors.

3. Benefits of Implementing a Quick Die Change System

The advantages of adopting a QDC system are numerous, making it a worthwhile investment for any manufacturing operation:

- Reduced Downtime: By significantly cutting down the time required to change dies, QDC systems enable manufacturers to switch between production runs more quickly, reducing downtime and increasing overall production capacity.

- Increased Flexibility: QDC systems allow manufacturers to produce smaller batches and quickly switch between different products, enhancing the ability to respond to market demands and customer needs.

- Improved Safety: Automation and standardized procedures reduce the need for manual labor during die changes, decreasing the risk of accidents and injuries on the shop floor.

- Cost Savings: Although the initial investment in a QDC system can be substantial, the long-term savings in labor costs, reduced downtime, and increased production efficiency make it a cost-effective solution.

- Enhanced Product Quality: The precision and consistency offered by QDC systems ensure that dies are always correctly positioned, leading to higher quality products with fewer defects.

4. Applications of Quick Die Change Systems

QDC systems are particularly valuable in industries where frequent die changes are necessary. Here are a few examples:

- Automotive Industry: The production of various car models and parts often requires multiple die changes. QDC systems enable automotive manufacturers to switch dies quickly and efficiently, keeping up with high demand and tight production schedules.

- Metal Stamping: In metal stamping operations, QDC systems allow for rapid changeovers between different stamping dies, facilitating the production of diverse parts without significant downtime.

- Plastic Molding: In plastic injection molding, QDC systems enable quick transitions between molds, allowing manufacturers to produce a variety of plastic components efficiently.

Conclusion

The Quick Die Change system is a transformative innovation that enhances manufacturing efficiency, safety, and flexibility. By reducing downtime and enabling rapid changeovers, QDC systems help manufacturers stay competitive in an increasingly demanding market. For businesses looking to optimize their production processes, investing in a Quick Die Change system is a strategic move that can lead to significant long-term benefits.
