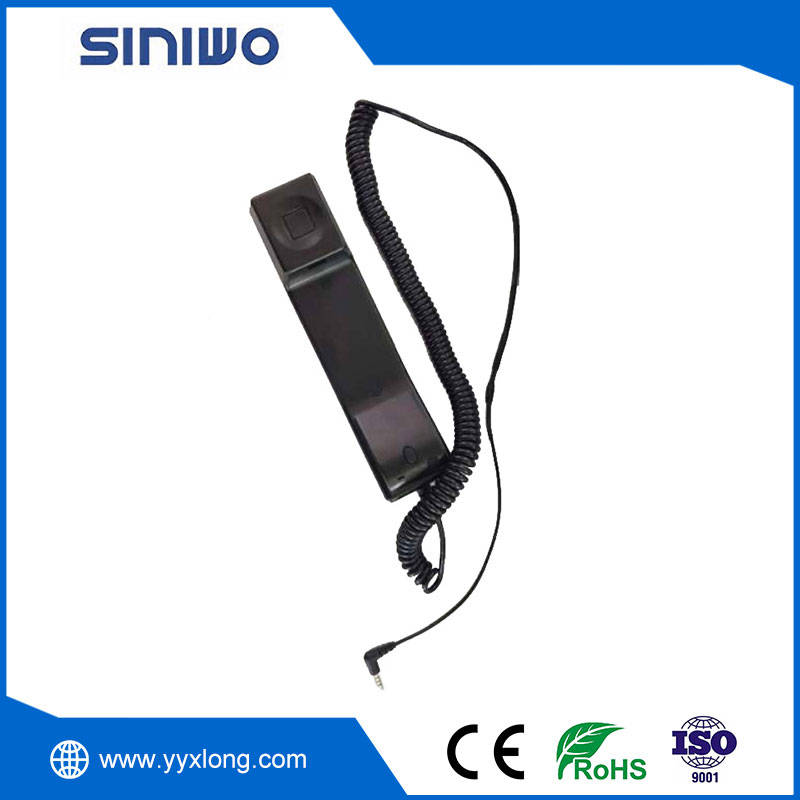

What are the parts of a telephone handset?

A telephone handset, often referred to simply as a handset, is an integral part of traditional and many modern telephones. It contains several essential components that enable voice communication. Here’s a detailed look at the parts of a telephone handset:

1. Earpiece (Receiver)

Function: Converts electrical signals back into sound so you can hear the other person.

Components: Contains a small speaker or receiver element.

2. Microphone (Transmitter)

Function: Captures your voice and converts it into electrical signals to be transmitted to the other party.

Components: Contains a small microphone or transmitter element.

3. Housing

Function: The outer shell of the handset that holds all the components together.

Materials: Usually made of plastic or other durable materials.

Design: Ergonomically designed to fit comfortably in the hand and against the ear.

4. Cord

Function: Connects the handset to the base unit of the phone.

Types: Coiled cord (for flexibility) or straight cord.

Wiring: Contains wires that carry the electrical signals between the handset and the base unit.

5. Speaker Element

Function: Part of the earpiece that converts electrical signals into sound.

Technology: Typically a dynamic speaker or piezoelectric element.

6. Microphone Element

Function: Part of the microphone that captures sound and converts it into electrical signals.

Technology: Can be a carbon microphone (in older models), dynamic, electret, or condenser microphone.

7. Push-to-Talk Button (Optional)

Function: Allows the user to control when to transmit their voice.

Usage: Common in walkie-talkies and some specialized telephone systems.

8. Volume Control (Optional)

Function: Allows the user to adjust the volume of the earpiece.

Location: Can be a dial or buttons located on the handset.

9. Hookswitch (Plunger)

Function: Engages or disengages the phone line when the handset is lifted or replaced on the base unit.

Location: Typically located in the base unit but activated by the handset being placed on or lifted off the cradle.

10. Internal Wiring and Connectors

Function: Connects the internal components (earpiece, microphone, and any controls) to the cord.

Components: Includes soldered connections and connectors for modular plugs.

11. Acoustic Tubes and Sound Chambers

Function: Enhance sound quality by directing and amplifying sound waves.

Design: Precisely engineered cavities within the handset.

12. Cradle or Hook

Function: Holds the handset when not in use and activates the hookswitch.

Design: Part of the base unit but interacts directly with the handset.
