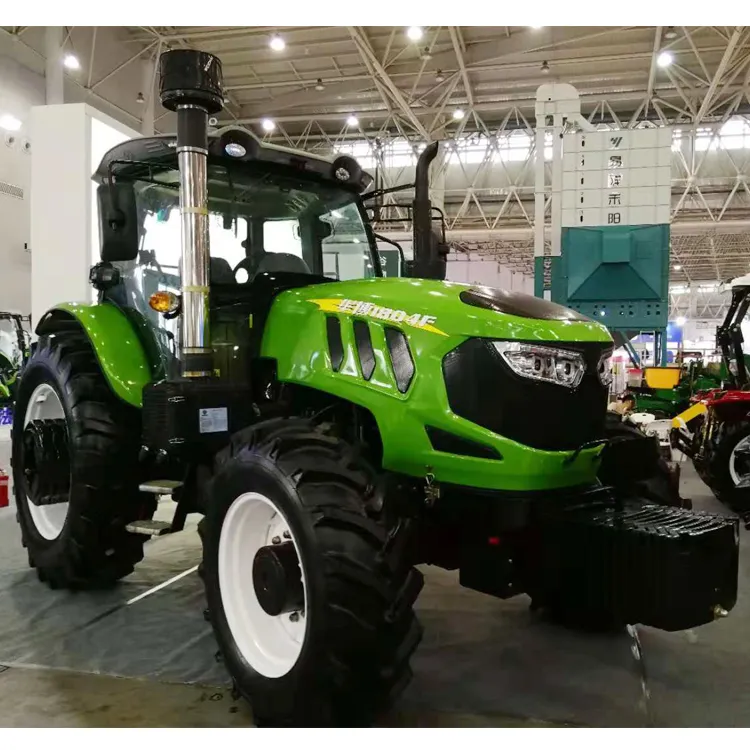

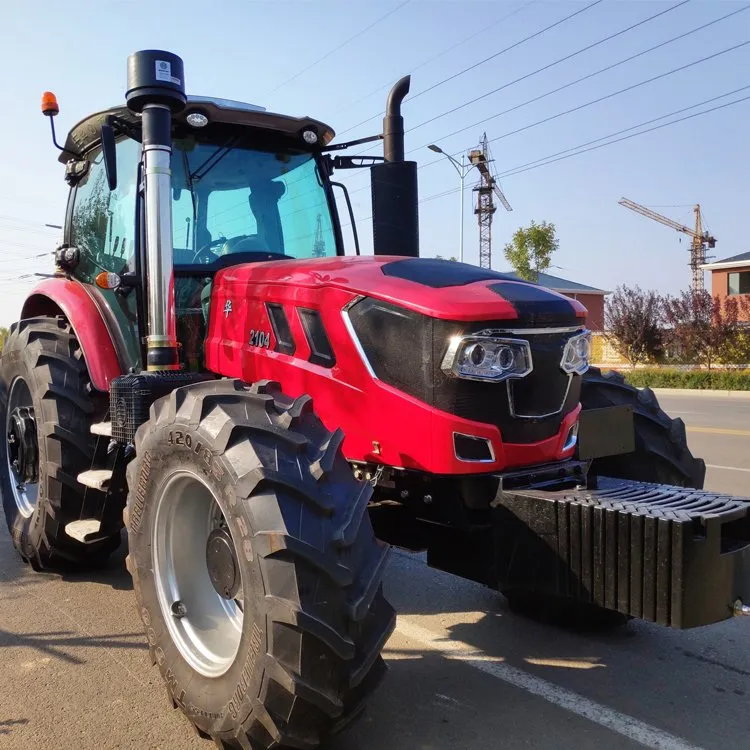

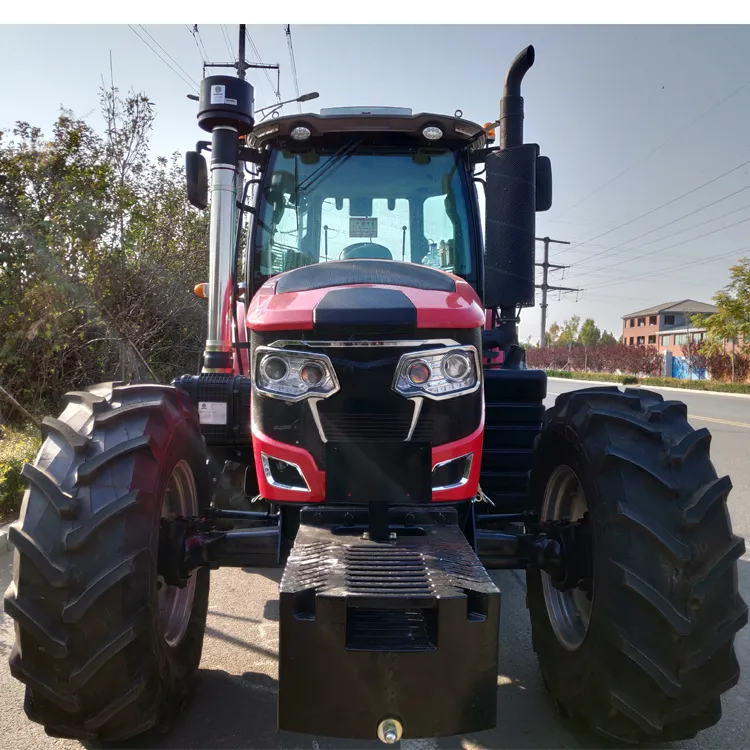

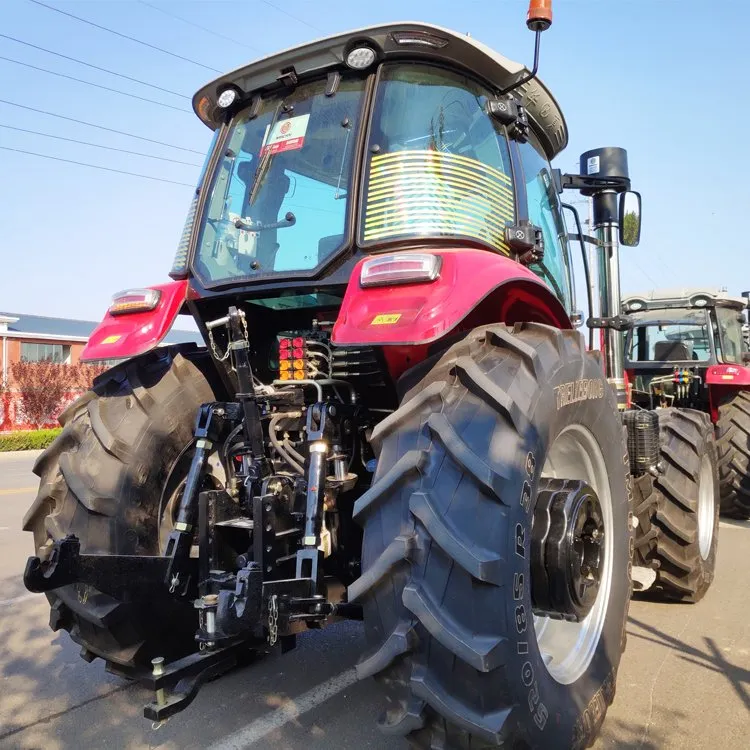

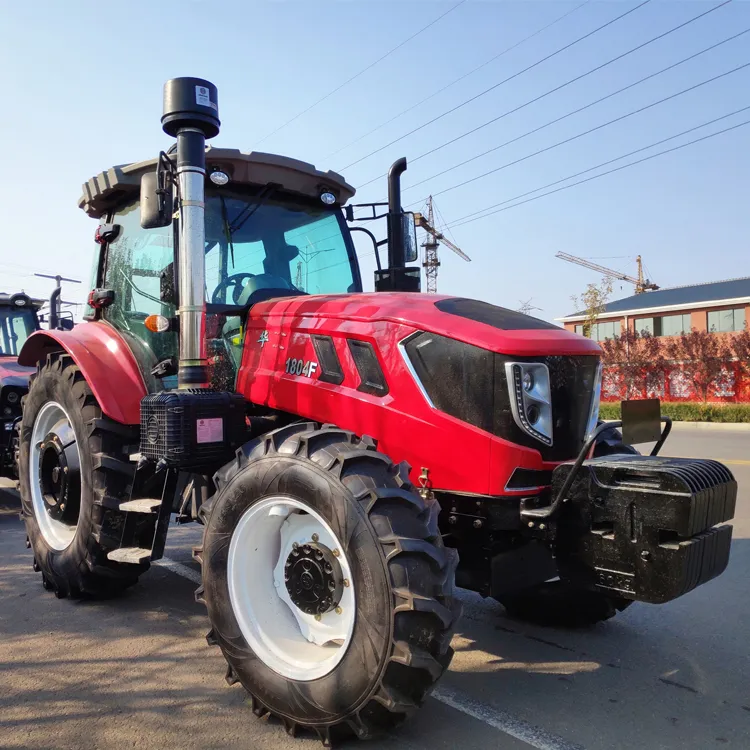

1504 Tractors 150HP 4WD

Product Description

Tractor

Products Model	HX1504
Wheel Drive	4*4
Horse Power	150
Dimension(LWH)	506023452940)mm
Minimum Service Quality	5700KG
Front Wheel Tread	1784-2202mm(Can Be Adjustable)
Rear Wheel Tread	1650-2285mm(Can Be Adjustable)
Wheel Base	2582 mm
Minimum Ground Clearance	480mm (front Axle)
Gear Shifts	16F+ 8R
Tyre Size	18.4-38/14.9-26
Engine Specification
Engine Brand	Weichai / YTO
Type	Water Cooled, Vertical, 4 Stroke and Direct Injection
Exhaust Emission Standards	Europe 2
Rated Power	110.3kw
Rated Revolution	2400 r/min
Start Way	Electric Start
Gear Box	4x(2+1)X2 Shift
Clutch	ingle Chip, Dry Friction, Constant Conjunction, Double Clutch, 11 Inch Size
PTO Speed	6 Spline 760/850
Multi-way Valve	Two Group
Drive Cap	With A/C

Weifang Huaxia Tractor Manufacturing Co.,Ltd.

Lebushan Industry Park,Weifang City,Shandong Porvince,China

Web:wfhuabo.en.made-in-china.com

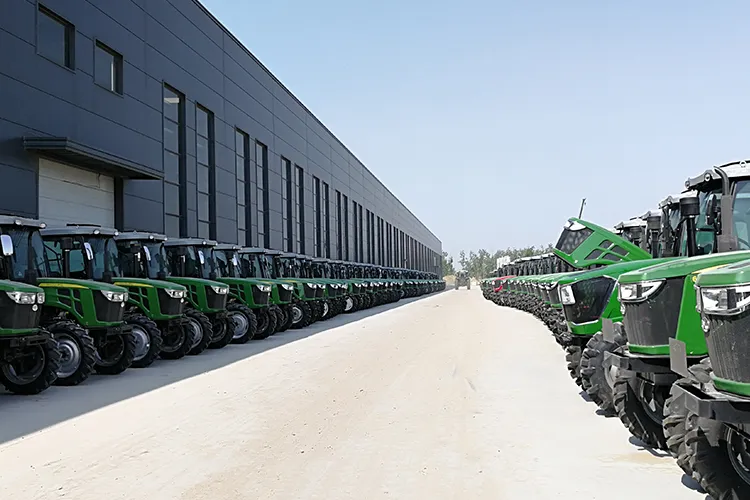

Weifang Huaxia Tractor Manufacturing Co.,Ltd. Is established in 1996 which has been invested
51million and is located in Lebushan Industry park,Weicheng District, Weifang City,Close to Jiaoji Railway,
Qingyin Expressway,And convenient transportation.Covering an area of about 140,000 square meters,
it is a modern private enterprise integrating scientific research, production and marketing. The existing
staff of more than 2000 people, including 10 technical staff, salers and foreign trade staff more than 20 people,
products are sold to all over the world. The company has strong technical force, excellent production equipment,
advanced automatic assembly line, and various inspection equipments. The company is always adhered to the
"quality first, customer first" approach to development.
