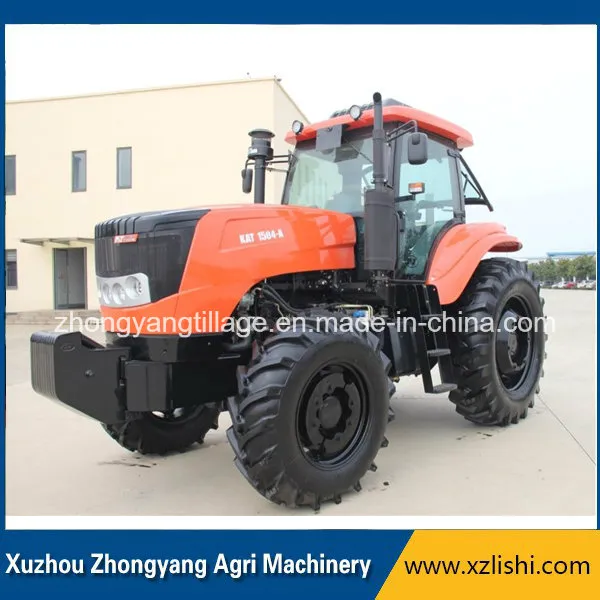

China 150HP Agricultural Tractor Kat Four Wheeled Farm Tractor (KAT 1504)

Product Description

KAT1404-A Tractor

Weichai six cylinder engine ( China Emission Standard III, turbocharger ,inter-cooling)is designed with 12 hours rated power of 111kw, fully enclosed cab, air heater, air conditioner, imported clutch, 16+4 shifts of transmission, shifting synchronizer, integrated frame, driving system with modularized structure, CARRARO front axle,construction machinery rear axle, single rear tire, front and rear counter weight, caliper disc brake, power output shaft rotation speed: 540/1000r/min, fully hydraulic front wheel steering, two groups of single/dual action hydraulic output, plough depth control method by position, floating control, and suspension mechanism of rear-mounted
Category III.

Technical Parameter

Model				KAT1504-A
Engine	Power/speed		kW/r/min	111(150)/2200
Drive Type			/	4×4
Dimension(Length/Width/Height)			mm	5620/2300/3200
Wheel Base			mm	2788
Track(Front wheel)			mm	1698-2122
Track(Rear wheel)			mm	1730-2300
Min. Ground Clearance			mm	480
Min. operation weight			kg	6400
Front counter weight			kg	500
Rated Traction Force			kN	33
No. of gears				16F+4R
Forward Gear		Speed	km/h	3-33
Reverse Gear		Speed	km/h	6-28
Tyre Model		Front Tires	/	14.9-26R1
Tyre Model		Rear Tires	/	18.4-38R1
Power-output shaft Type			/	Rear position or independent
power-output shaft rated Speed			r/min	540/1000
Max. Pull-down piston pull			kN	37
