25HP-100HP, Four Wheel, Chinese Famous Brand New Tractor New Price High Quality Hot Sale! Compact/Farming/Agriculture Four Wheel Drive Tractor

Product Description

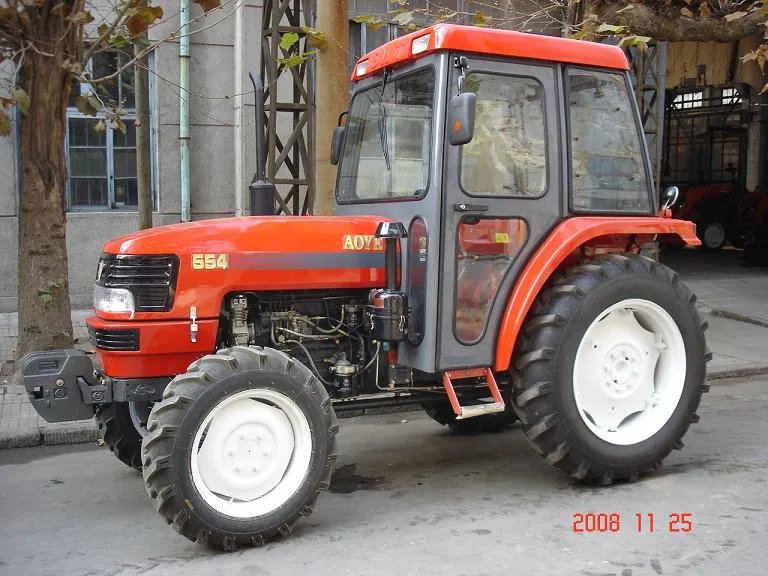

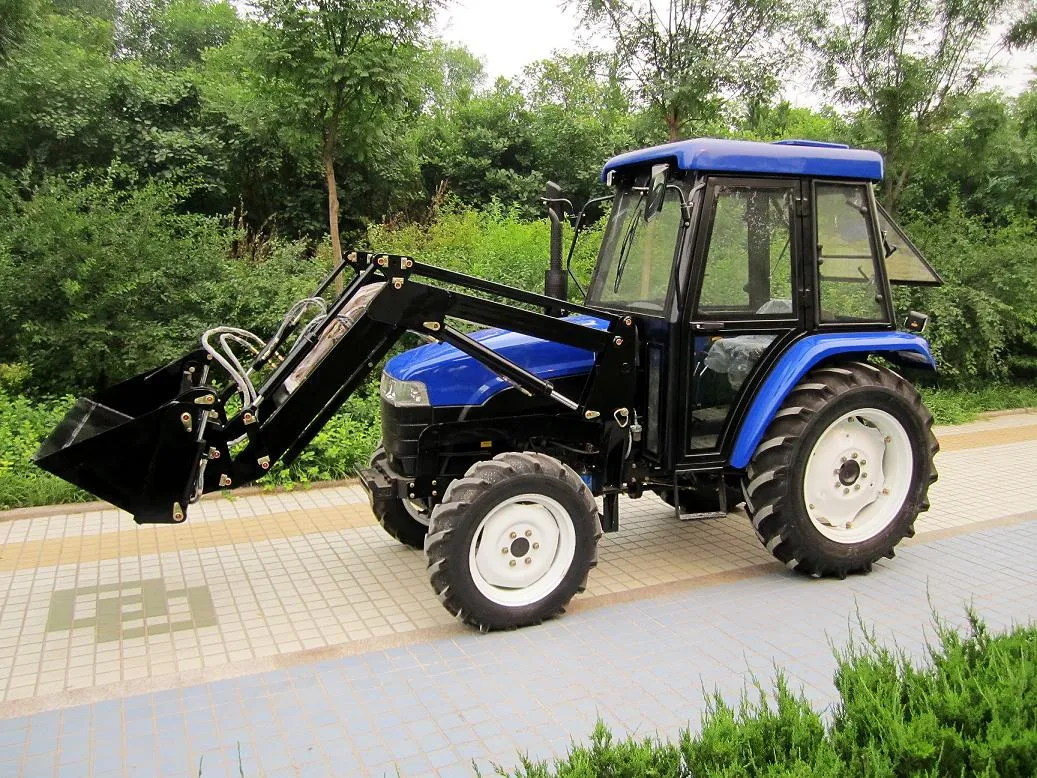

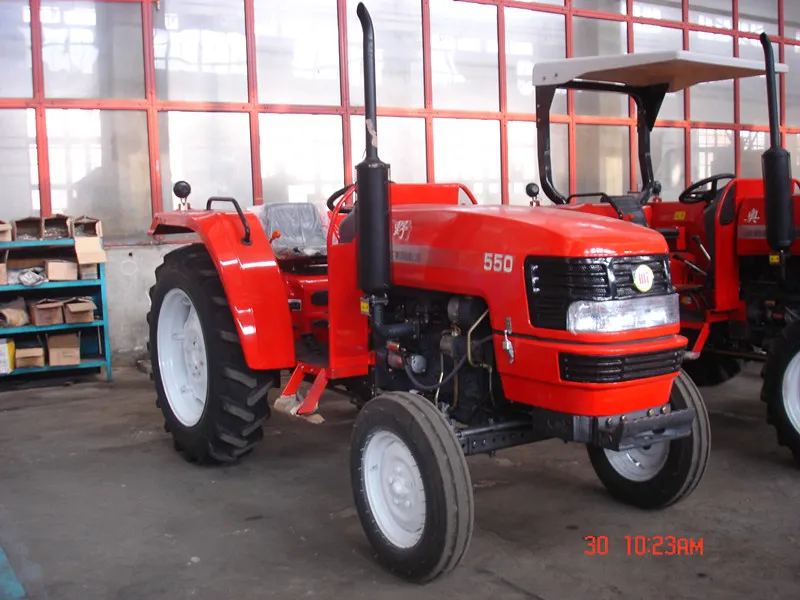

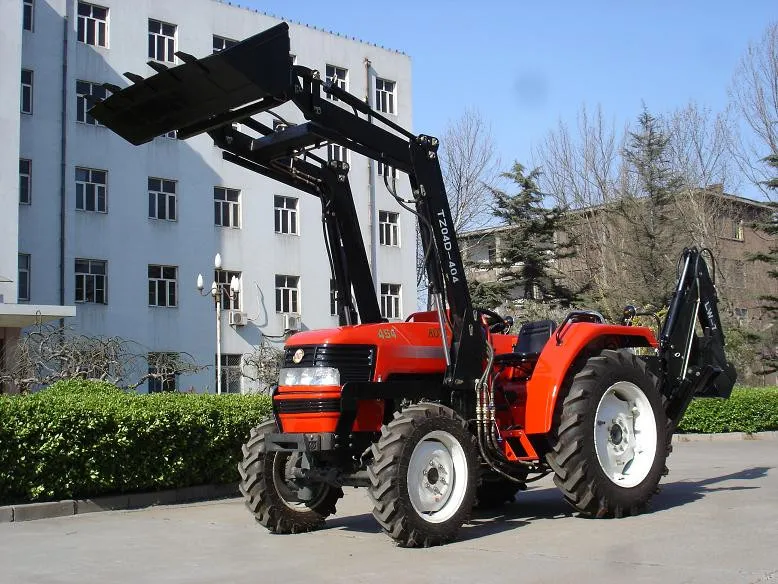

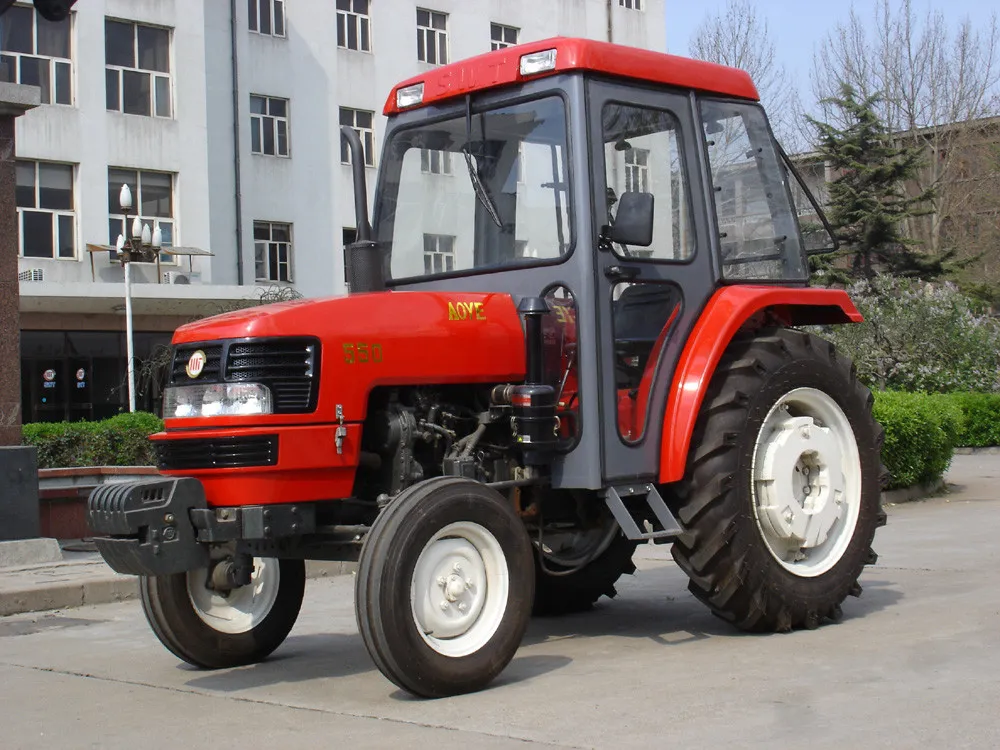

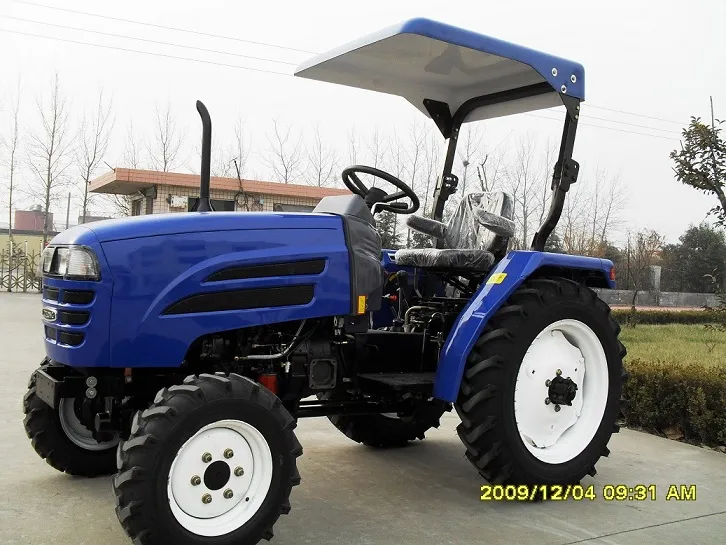

Supply tractors 18hp-140hp,four wheel drive,power steering,with famous brand diesel engine.the tractors can fit many kinds of implements,like mower,rotary tiller,plough,harrow,trailer,front loader and backhoe,etc.Please feel free to contact us if you want more information.

Model			TY184	TY204	TY224	TY254	TY284	TY304
Type			4×4 4WD
	Length		2710/2796		2768/2854
	Width		1222/1296		1514/1696
	Depth		1338		1365/1414
(mm)	Wheel base	Front wheel	1000/1200
Main Dimensions of Tractors		Rear wheel	1000-1300 Adjustable
	Tread		1512/1598
	Min. Ground Base		266
(kg)Dry Mass			1100		1106	1130
Engine	Model		290/295	295		295	2100	2102
	Type		Vertical, 2-cylinder, Water Cooled and 4-stroke
	(kw) Rated Power		13.2	14.72	16.1	18.4	20.6	22.06
	(r/min)Rated Rev.		2200	2300		2400/2500		2400
	Fuel		Diesel Oil
Tyre	Front Wheel		6.00-12/6.00-16
	Rear Wheel		8.30-24/9.50-24
Clutch			Dry-friction, Single Stage or Dry-friction, Two Stage
Steering			Mechanical Type or Hydraulic Type
Transmission Box			(3+1)×2or(4+1)×2or(4+1)×2×2(with creeper)
Suspension Type			Post Postitioned Tri-point Suspension Catalogue O			Post Postitioned Tri-point Suspension Catalogue O or I
PTO Shaft	(r/min)Type and Rev.		Non-independent Type 540 or Non-independent Type 540/1000, 540/720 or Semi-independent Type 540/1000,540/720
	Spline Size		I35 Rectangle Spline with 6 teeth(6×28.91×34.79×8.69)
