Agricultural Tractors Two Wheels Small Power 45HP Farm Tractors
Popular 45HP 2WD Mini Tractor1: JD engine;2: 4 cylinders;3: Water cooled4: Hydraulic steeringSuperiority of 45HP 2WD Farm TractorA). Assembled with creeping shift, double stage clutch, dual-way hydraulic output and hydraulic steering, which is popular on international market.B). With the characteris......
Send Inquiry
Product Description

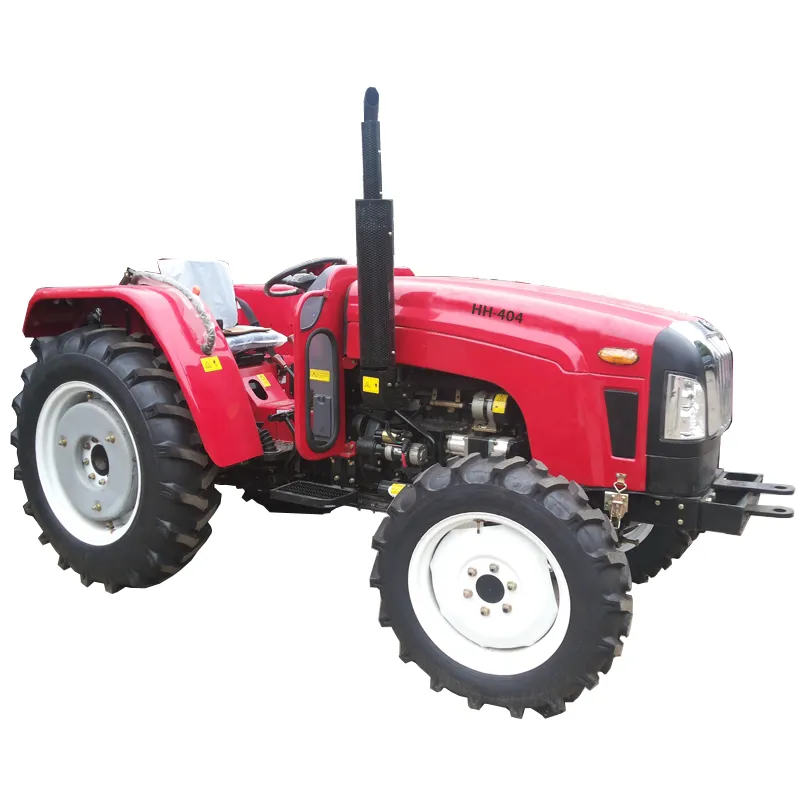

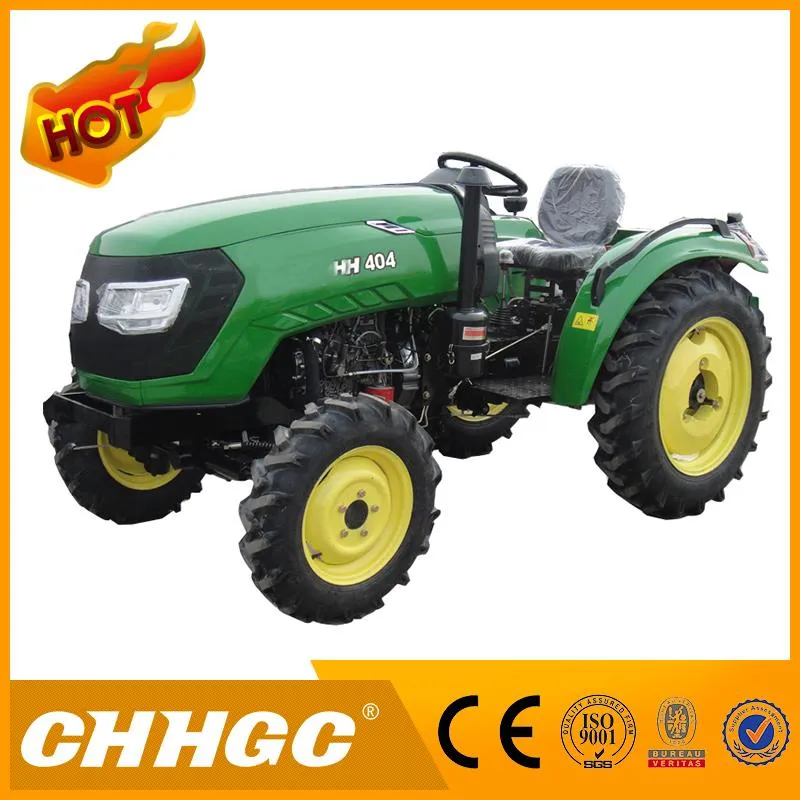

Popular 45HP 2WD Mini Tractor
1: JD engine;
2: 4 cylinders;
3: Water cooled
4: Hydraulic steering
Superiority of 45HP 2WD Farm Tractor
A). Assembled with creeping shift, double stage clutch, dual-way hydraulic output and hydraulic steering, which is popular on international market.
B). With the characteristics of compact structure, mini size, reasonable power, various function, easy operation, reliable performance and environment protected, it is a right tractor for family and farm for agriculture and gardening.
C). With front loader and back hoe, this series tractor can do various kind of job engineering
D). With the fluid driving on whole structure, it has characteristics as compact structure and agile operation, which leads it work freely in incommodious field where large machine can not achieve.
E). The working implements are connected with tractor in quick linkage type, and hydraulic pipes are connected by quick coupling, which are easy for assembly.
F). The tractor hydraulic system affords power to front loader, back hoe and tractor lift equipments. Hydraulic oil tank is designed according to the international standard, which is easy for maintenance.
Technical Data
Technical Parameters
Production Workshop
Certificate
Business Partners
FAQ
Q1. How to ship the Tractors?
A: By container, bulk ship, RORO.
Q2. Do you have different horsepower tractors?
A: Yes,we supply different model tractors and exported to many countries.
Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
T/T, deposit in advance, and balance paid before delivery from factory.
Q4. Which model tractors do you supply?
A: We supply all kinds of tractors such as walking tractors, wheel tractors etc,.
Q5. What is your terms of delivery?
A: FOB, CIF.
Q6. How about your delivery time?
A: Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: What can you guarantee to your business partner?
A: Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
1: JD engine;
2: 4 cylinders;
3: Water cooled
4: Hydraulic steering
Superiority of 45HP 2WD Farm Tractor
A). Assembled with creeping shift, double stage clutch, dual-way hydraulic output and hydraulic steering, which is popular on international market.
B). With the characteristics of compact structure, mini size, reasonable power, various function, easy operation, reliable performance and environment protected, it is a right tractor for family and farm for agriculture and gardening.
C). With front loader and back hoe, this series tractor can do various kind of job engineering
D). With the fluid driving on whole structure, it has characteristics as compact structure and agile operation, which leads it work freely in incommodious field where large machine can not achieve.
E). The working implements are connected with tractor in quick linkage type, and hydraulic pipes are connected by quick coupling, which are easy for assembly.
F). The tractor hydraulic system affords power to front loader, back hoe and tractor lift equipments. Hydraulic oil tank is designed according to the international standard, which is easy for maintenance.
Technical Data
| Model | TS450 | |||||
| General Specifications | Type | 4*2 | ||||
| Overall dimensions L*W*H(mm) | 3829*1708*2200 | |||||
| Constructional weight(kg) | 1790 | |||||
| Rated traction force(kn) | 9.1 | |||||
| Wheel base(mm) | 2044 | |||||
| Front wheel tread(mm) | 1270-1670(Adjustable) | |||||
| Rear wheel tread(mm) | 1220-1620(Adjustable) | |||||
| Min. land clearance(mm) | 420 | |||||
| Min. quality in use(kg) | 1950/2330 | |||||
| Front wheel tyre size | 6.0-16 | |||||
| Rear wheel tyre size | 12.4-28 | |||||
| Min.turning radius(mm)(Unilateral Nonbraking/Unilateral Braking) | 3800/3400 | |||||
| Theoretical speed(km/h) | Creeper | Shuttle gear | ||||
| I | 0.45 | 2.63 | ||||
| II | 0.71 | 4.13 | ||||
| III | 1.1 | 6.44 | ||||
| IV | 1.7 | 9.93 | ||||
| V | 7.91 | |||||
| VI | 12.45 | |||||
| VII | 19.4 | |||||
| VIII | 29.86 | |||||
| Reverse I | 0.6 | |||||
| Reverse II | 0.95 | |||||
| Reverse III | 1.49 | |||||
| Reverse IV | 2.28 | |||||
| Engine | Model | JD495T | ||||
| Type | Inline,Vertical,Water-cooling,Four-stroke | |||||
| 12 hours power(kw) | 33.1 | |||||
| Rated speed(r/min) | 2300 | |||||
| Fuel consumption(g/kw.h) | <=245 | |||||
| Max.torque(n.m) | >=190.8 | |||||
| Speed of Max.torque(r/min) | <=1725 | |||||
| Bore stroke(mm) | Φ95*105 | |||||
| Diesel consumption(g/kw.h) | <=2.04 | |||||
| Starting mode | Electric start | |||||
| Break System | Service brake | Mechanical\Hydraulic\Wet\Disc | ||||
| Parking brake | Locking footplate type | |||||
| Transmission | Clutch | Dry\Single piece\Double acting\Constant combining | ||||
| Gear box | 8 forward gear,4 reverse gear,straight mesh sleeve shift,additional equipment creeper,shuttle structure | |||||
| Steering | Hydraulic steering | |||||
| Steering type | Front wheel steering | |||||
| Main drive | Spiral bevel gear | |||||
| Differential mechanism | Pin-type,two planet bevel gear,closed | |||||
| Final drive | Single srage,external,planetary gear | |||||
| Operating System | Lifter tilling depth control | Linksening,force and position control | ||||
| Max.lifting capacity(kn) | >=7.5 | |||||
| Suspension type | Postposition\Three-point\I category | |||||
| Speed of P.T.O.(r/min) | (540,1000) or (720,1000) or (540,720) | |||||
| Type of P.T.O. | Postposition,semi-independent | |||||
| Traction Equipment | Swing rod | |||||
| Optional Disposition | Front ballast\Rear ballast\Air brake\Sealed luxury cabin and no hydraulic output\CC 4L68 engine | |||||

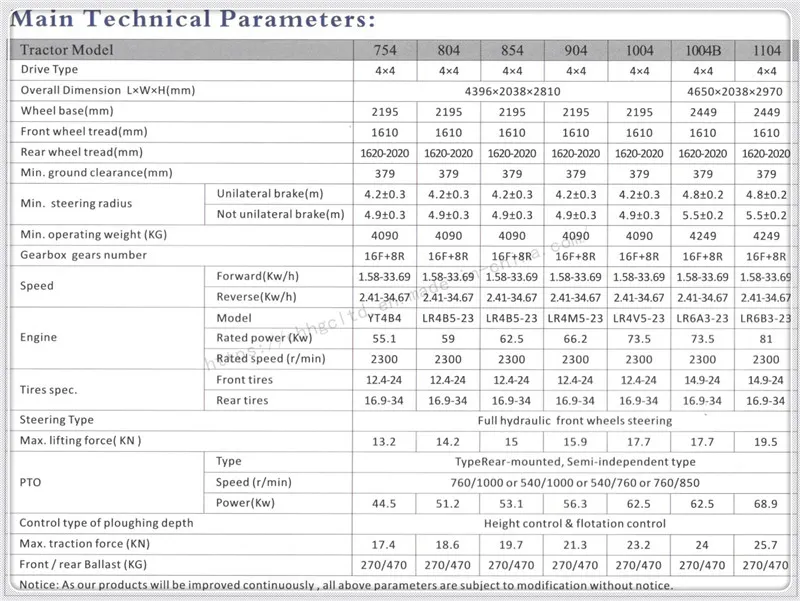

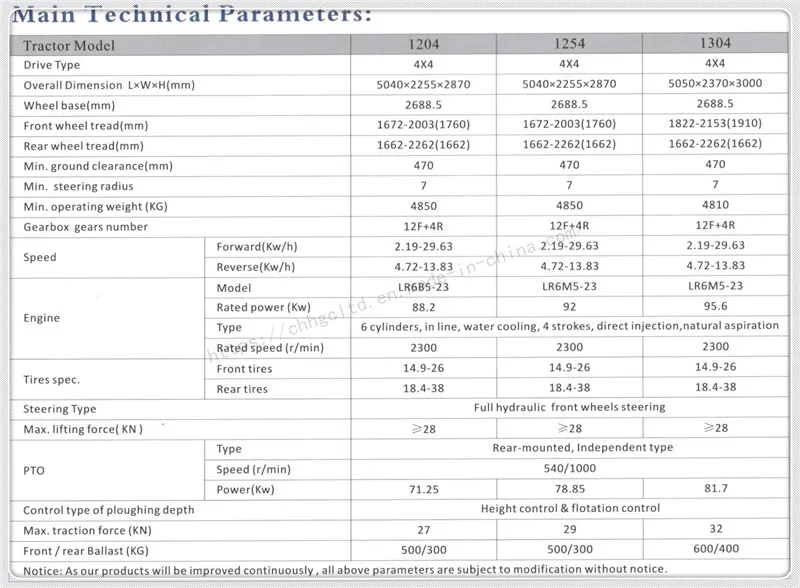

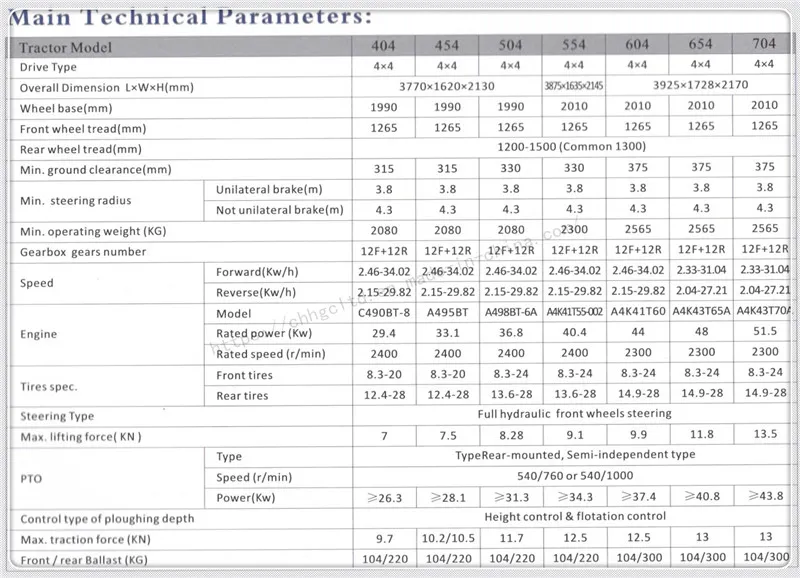

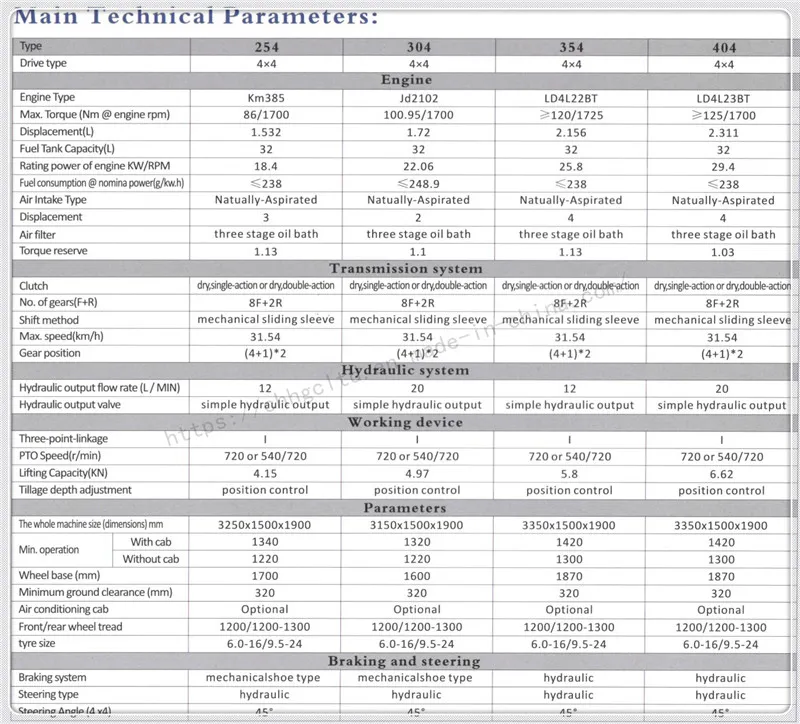

Technical Parameters

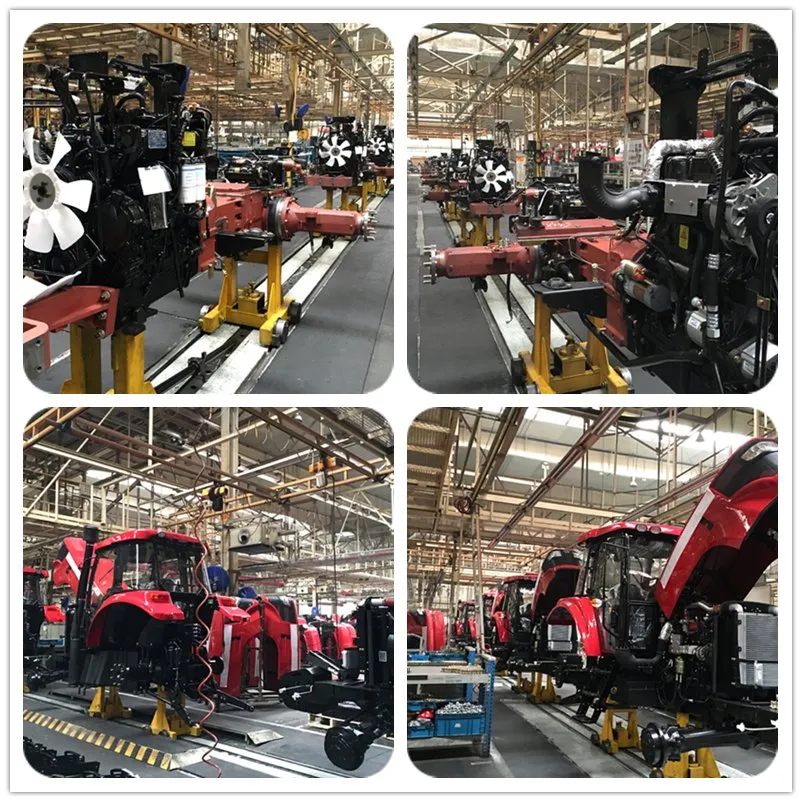

Production Workshop
Certificate
Business Partners
FAQ
Q1. How to ship the Tractors?
A: By container, bulk ship, RORO.
Q2. Do you have different horsepower tractors?
A: Yes,we supply different model tractors and exported to many countries.
Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
T/T, deposit in advance, and balance paid before delivery from factory.
Q4. Which model tractors do you supply?
A: We supply all kinds of tractors such as walking tractors, wheel tractors etc,.
Q5. What is your terms of delivery?
A: FOB, CIF.
Q6. How about your delivery time?
A: Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: What can you guarantee to your business partner?
A: Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
