Ce Cabin 100HP 110HP 4WD Agricultural Wheeled Tractor
PRODUCTION NAMECE 100HP 110HP Agricultural Wheeled Tractor with CabinQUALITY ASSURANCE(WHY CHOOSE HUAXIA TRACTOR)1.All products must go through checks before manufacturing process.2.Every production line is equipped in an individual QC to ensure well-done production. 3. We have the MOST ADVANCED HIG......
Send Inquiry
Product Description
PRODUCTION NAME
CE 100HP 110HP Agricultural Wheeled Tractor with Cabin
QUALITY ASSURANCE(WHY CHOOSE HUAXIA TRACTOR)
1.All products must go through checks before manufacturing process.
2.Every production line is equipped in an individual QC to ensure well-done production.
3. We have the MOST ADVANCED HIGH HORSE POWER TRACTOR production line in China or even the world with the highest labor productivity;
4. Reasonable prices;
5. More than 10000.00sets annual output;
6. More and more mature After-Sales Service;
7. ISO9001 and CE Certified .
SPECIFICATIONS
IMPLEMENT
Front loader,rotary tiller,snow blade,disc plough, trailer, mower,snow blower,backhoe and many others
SHIPMENT
Process wheel package,
Without cab ,20ft container load 1 unit .
With cab ,90hp to 110hp ,20ft container load 1 unit ,40ft container load 3 units.
120hp with cab ,40ft container load 2 units .
COMPANY PROFILE
we are tractor manufacturer in china for 17 years ,
our main product is 10hp to 150hp all kinds of tractor.
COMPANY PRODUCTION
Weifang Huaxia Tractor Manufacturing Co., Ltd is located in Weifang city,a famous World Kite Capital, near to Qingdao port, with very convenient transportation.
With an area of more than 80000 square meters, we mainly engaged in agricultural machinery make, such as mini tractor,middle tractor,large tractor with implements:rotavator,plough,seeder, harvester,trailer, and etc.. Currently we own 3 series, fifty types of high efficiency products,that are sold well in East Asia, South America and Africa.
With the independent R&D department and advanced technology, we specialize in creating and producing the new-style and practical agriculture machines for the worldwide market.
We aim at " practical innovation and making customers satisfactory". You are warmly welcome to contact us whenever you are in need of our products and service. We are always ready for cooperation

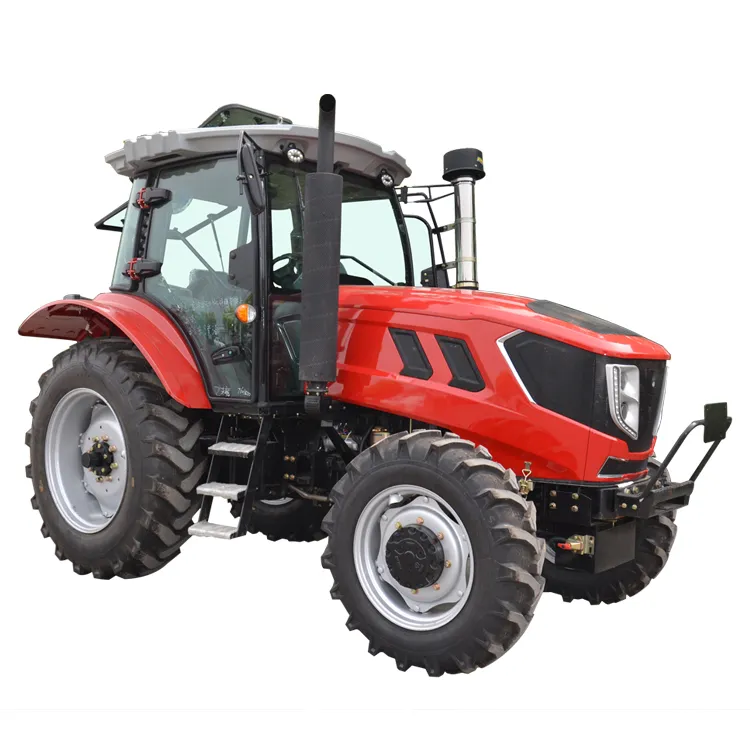

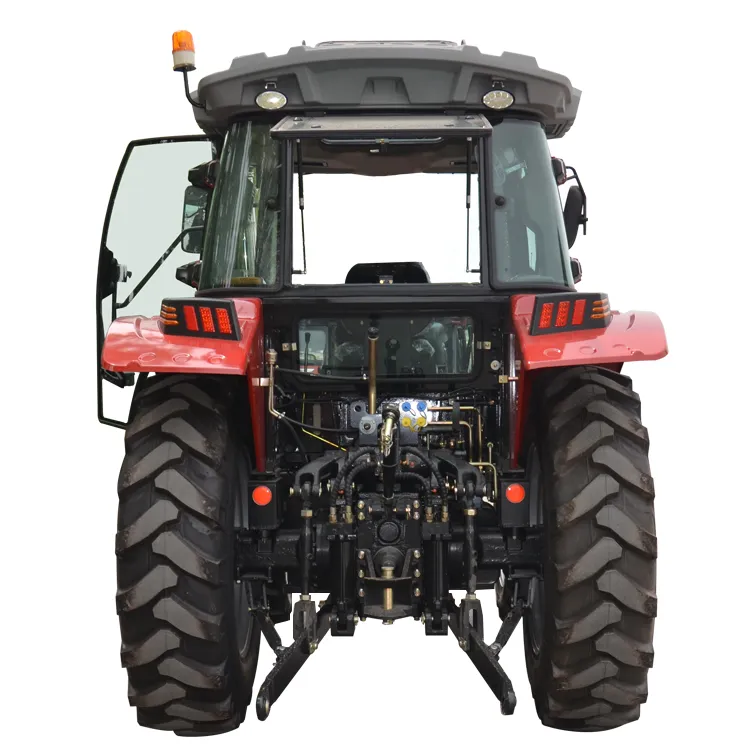

CE 100HP 110HP Agricultural Wheeled Tractor with Cabin
QUALITY ASSURANCE(WHY CHOOSE HUAXIA TRACTOR)
1.All products must go through checks before manufacturing process.
2.Every production line is equipped in an individual QC to ensure well-done production.
3. We have the MOST ADVANCED HIGH HORSE POWER TRACTOR production line in China or even the world with the highest labor productivity;
4. Reasonable prices;
5. More than 10000.00sets annual output;
6. More and more mature After-Sales Service;
7. ISO9001 and CE Certified .
SPECIFICATIONS
| Specification of Huaxia 100hp,120hp tractor | |||
| Model | HX1004 | HX1204 | |
| Drive type | 4x4 | ||
| Engine | |||
| Engine model | YTO LR4M3Z, in-line, direct injection, 4cylinder, diesel engine | YTO LR6B5-23 QUANCHAI QC6105, 6 cylinder, in-line, direct injection, diesel engine | |
| Capacity of fuel tank(L) | 150 | ||
| Rated speed (r/min) | 2300 | ||
| Engine power(kw) | 73.5 | 88.2 | |
| Lowest fuel consumption (g/kw·h) | ≤242 | ≤235 | |
| Transmission | |||
| Clutch | Dry,dual-stage type | ||
| PTO Speed(rpm) | 540/1000 or 760/1000(optional) | 540/1000 or 760/1000(optional) | |
| Gearshift | 16F+8R | ||

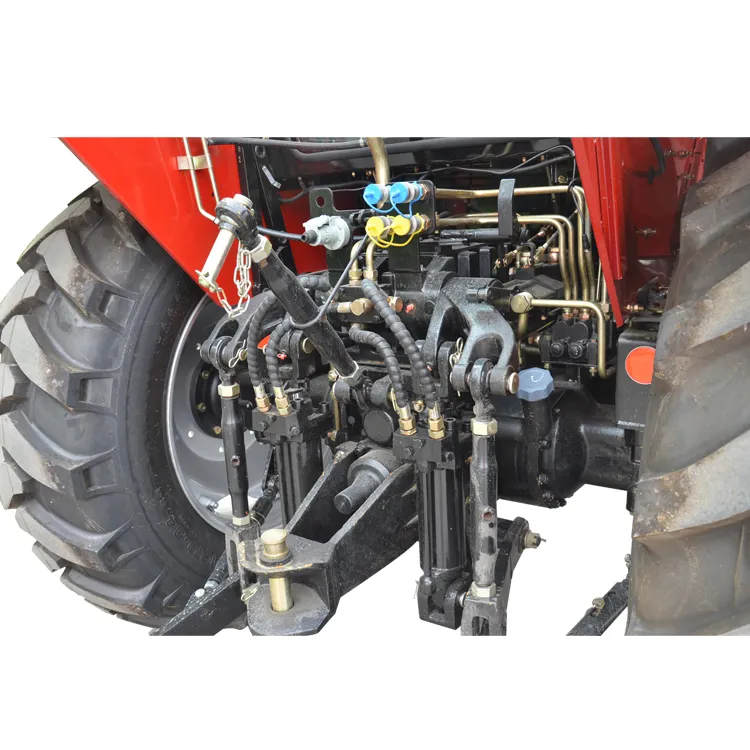

| Three point linkage | |||
| Category of 3-point link | Category II | ||
| Lifting capacity at point of 610mm(KN) | >22 | ||
| Technical parameter | |||
| steering | hydraulic steering | ||
| hydraulic outlet valve | 2-way(optional) | ||
| Weight(kg) | 3850(with cabin) | 4260(with cabin) | |
| Dimension LxWxH mm | 4530*2050*2930(with cabin) | 4593x2050x2930(with cabin) | |
| Wheel base(mm) | 2195 | ||
| Track base(mm) front wheel | 1490,1580,1650,1740 adjustable | 1490,1580,1650,1740 adjustable | |
| Track base(mm) rear wheel | 1520,1620,1740,1850 ajustable | 1520,1620,1740,1850 ajustable | |
| The smallest clearance(mm) | 405 | 405 | |
| Front tyre | 12.4-24 | 12.4-24 | |
| Rear tyre | 16.9-34 | 16.9-34/18.4-30(optional) | |
IMPLEMENT
Front loader,rotary tiller,snow blade,disc plough, trailer, mower,snow blower,backhoe and many others
SHIPMENT
Process wheel package,
Without cab ,20ft container load 1 unit .
With cab ,90hp to 110hp ,20ft container load 1 unit ,40ft container load 3 units.
120hp with cab ,40ft container load 2 units .
COMPANY PROFILE
we are tractor manufacturer in china for 17 years ,
our main product is 10hp to 150hp all kinds of tractor.
COMPANY PRODUCTION
Weifang Huaxia Tractor Manufacturing Co., Ltd is located in Weifang city,a famous World Kite Capital, near to Qingdao port, with very convenient transportation.
With an area of more than 80000 square meters, we mainly engaged in agricultural machinery make, such as mini tractor,middle tractor,large tractor with implements:rotavator,plough,seeder, harvester,trailer, and etc.. Currently we own 3 series, fifty types of high efficiency products,that are sold well in East Asia, South America and Africa.
With the independent R&D department and advanced technology, we specialize in creating and producing the new-style and practical agriculture machines for the worldwide market.
We aim at " practical innovation and making customers satisfactory". You are warmly welcome to contact us whenever you are in need of our products and service. We are always ready for cooperation
