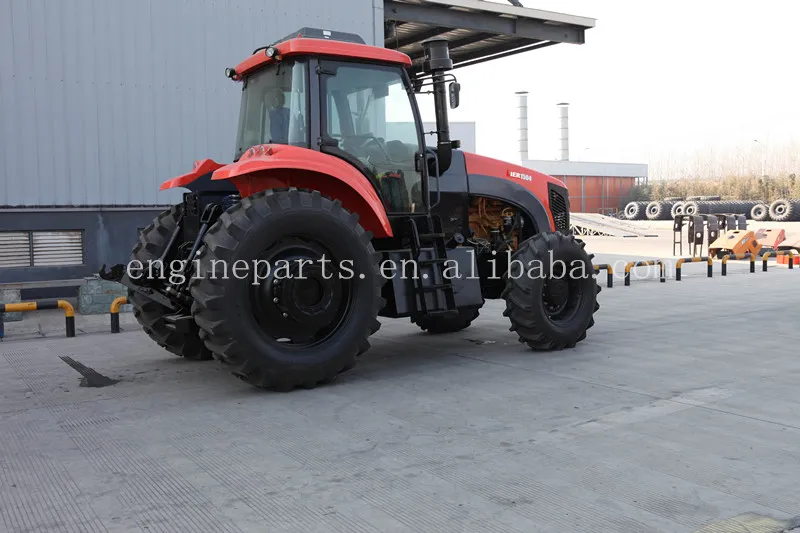

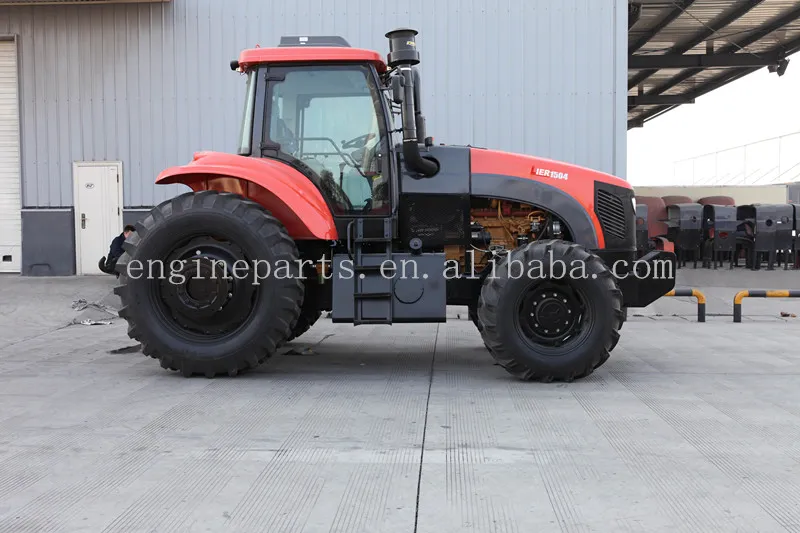

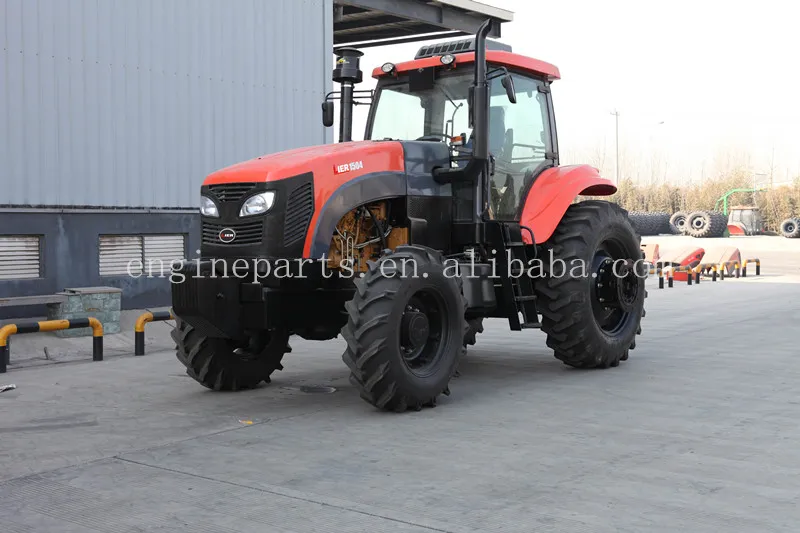

China Tractor Lier 1504
China Tractor LIER 1504Model LIER1504EnginePower/speedkW/r/min110.5(150)/2200 Specific Fuel Consumptiong/kw.h≤223Drive Type/4×4)Dimension(Length/Width/Height)mm5850/2420(dual3510)/3280Wheel Basemm3080Track(Front wheel)mm1888-2124Track(Rear wheel)mm1952-2568Min. Ground Clearancemm450......
Send Inquiry
Product Description
| Model | LIER1504 | |||
| Engine | Power/speed | kW/r/min | 110.5(150)/2200 | |
| Specific Fuel Consumption | g/kw.h | ≤223 | ||
| Drive Type | / | 4×4 | ||
| )Dimension(Length/Width/Height) | mm | 5850/2420(dual3510)/3280 | ||
| Wheel Base | mm | 3080 | ||
| Track(Front wheel) | mm | 1888-2124 | ||
| Track(Rear wheel) | mm | 1952-2568 | ||
| Min. Ground Clearance | mm | 450 | ||
| Min.running weight | kg | 7400 | ||
| Front counter weight | kg | 400 | ||
| Rated Traction Force | kN | 36 | ||
| No. of gear | 24F+8R | |||
Forward Gear | Speed | km/h | 2-29 | |
Reverse Gear | Speed | km/h | 2-19 | |
| Tyre Model | Front Tires | / | 14.9-26R1 | |
| Rear Tires | / | 18.4-38R1(dual) | ||
| Power-output shaft Type | / | Rear position or independent | ||
| power-output shaftRatedSpeed | r/min | 540/1000 | ||
| Max. Pull-down piston pull | kN | 36 | ||
| LIER1504 | Shangchai six cylinder engine (turbocharger)is designed with 12 hours rated power(110kw), fully enclosed cab, air heater, air conditioner, 24+8 shifts of transmission, shifting synchronizer, integrated frame, driving system with modularized structure, international brand front axle,construction machinery rear axle, double rear tire, caliper disc brake, revolution for power output shaft of dual revolution 540/1000r/min, fully hydraulic front wheel steering, three groups of single/dual action hydraulic output, plough depth control method by position, floating control, and suspension mechanism of rear-mounted Category 3. |
