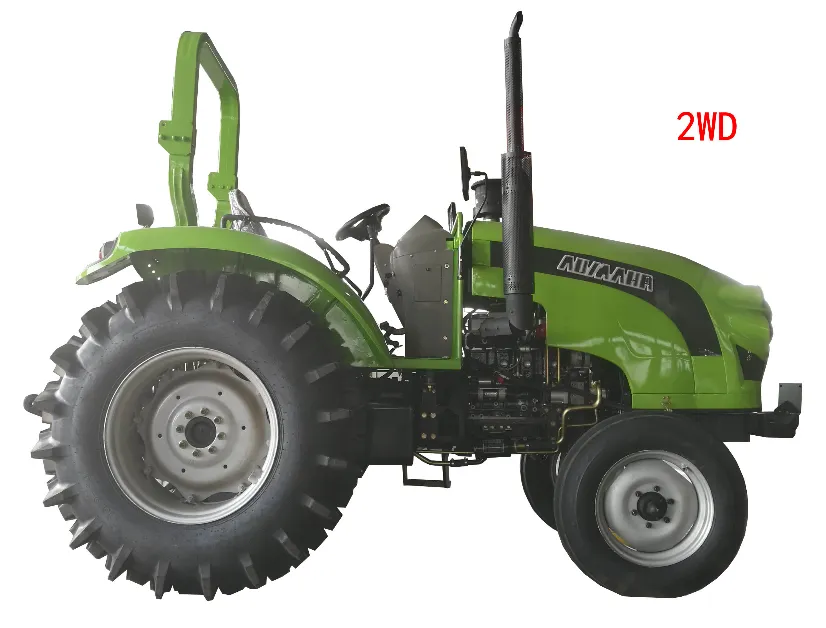

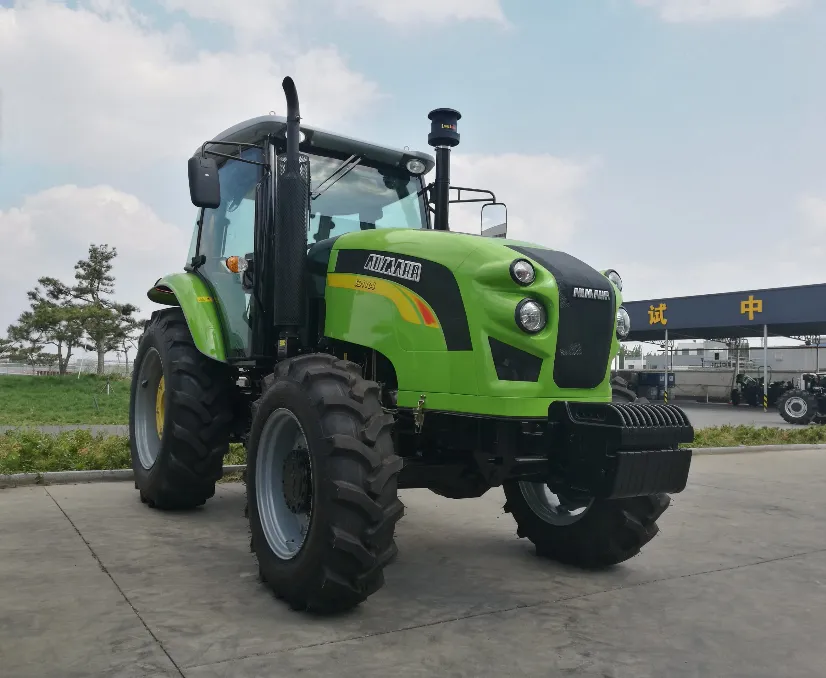

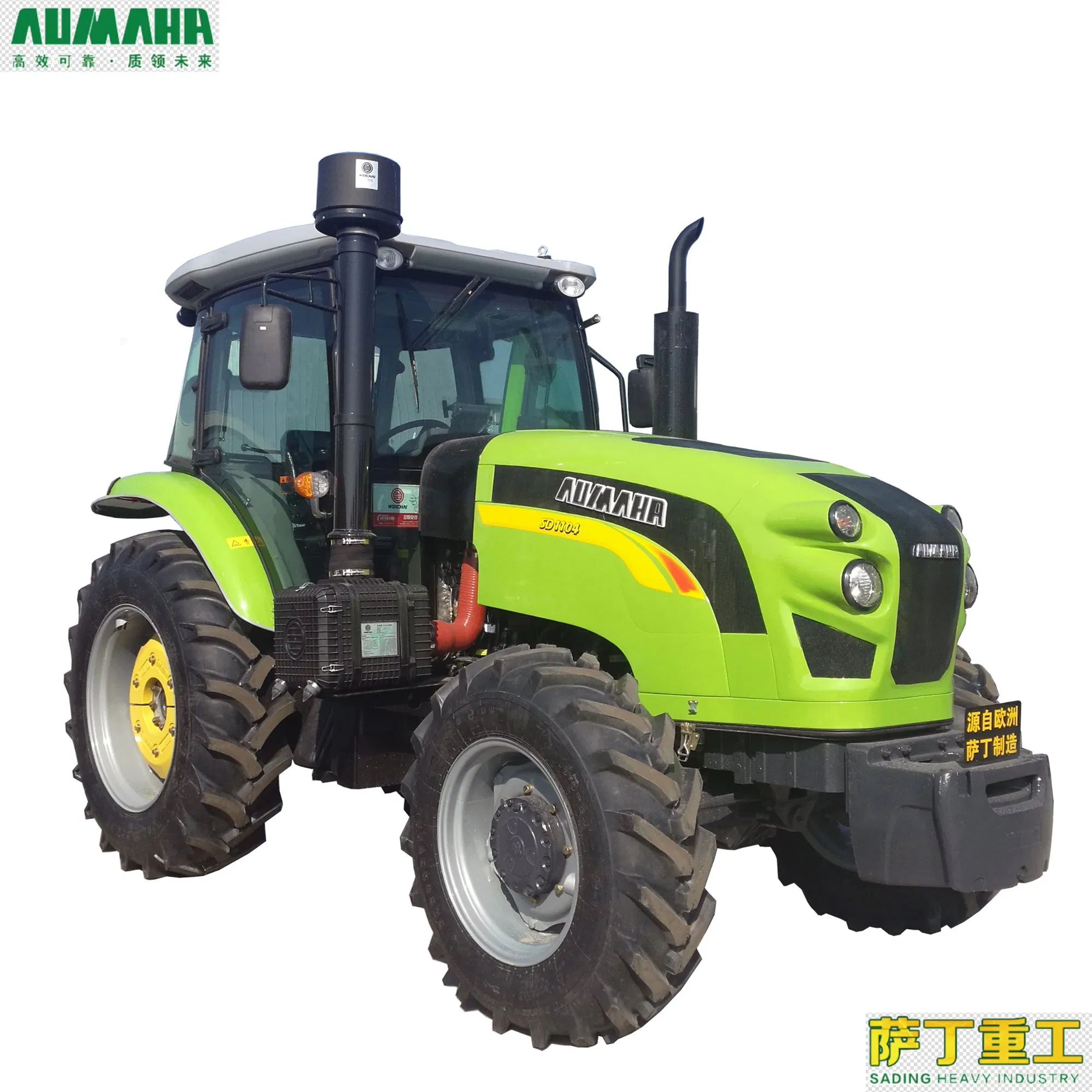

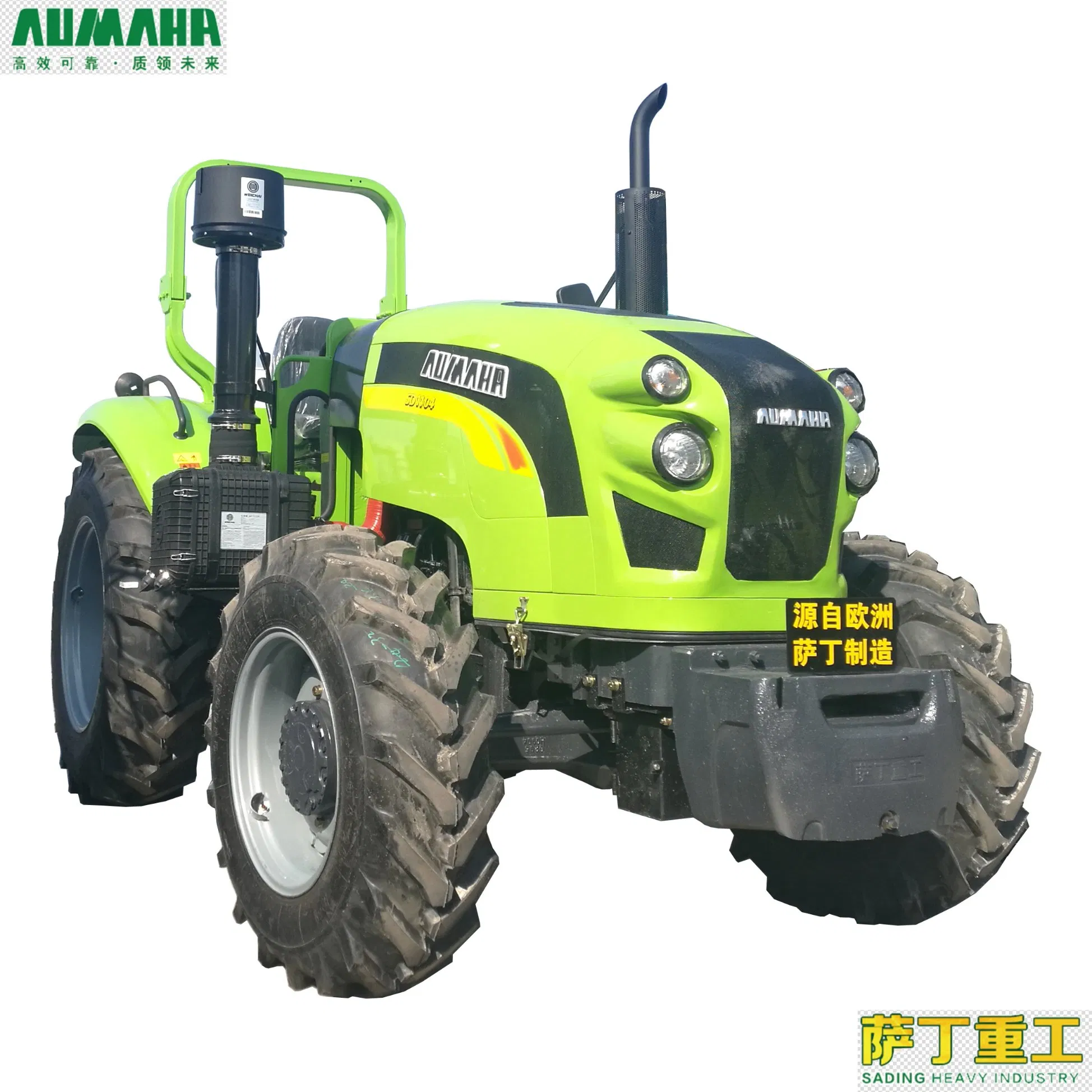

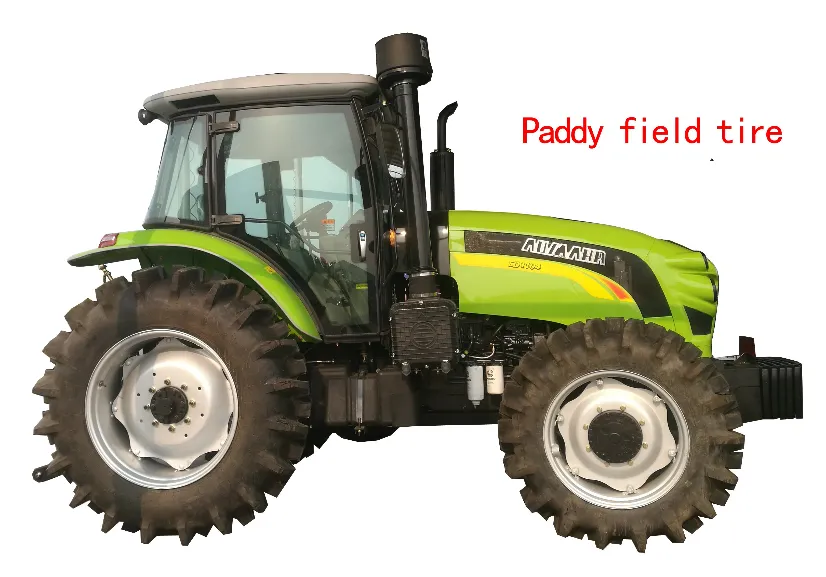

China Farm Transportion Paddy-Field 110HP 4WD 2WD Wheel Tractor with Cab

Product Description

Items	Unit	Parameter
Model		SD1100/1104
Name		Wheel tractor
Drive type		2WD/4WD
Usage		Farm, Transport
Overall dimension:	mm	4700×1986×2760
Cabin
Type		Latest safe cabin , Optional: Fan or Heater or A/C
Engine:
Type		4 cylinder, in-line, water cooled, four-stroke
Aspiration		Natural
Cylinder		4
Bore x stroke	mm	ø110×135
Displacement	L	7.13
Compression ratio		17.5:1
Rated power	Kw(hp)	80.88/(110)
Rated Rev.	r/min	2200
Steering, Brake system
Steering type		Hydraulic
Brake type		Oil bath type
Transmission system
Clutch		Double-stage
Transmission box		4x(2+1) x2 combined type
Shift gear mode		Engagement sleeve
Running system
Frame type		New enhanced frameless

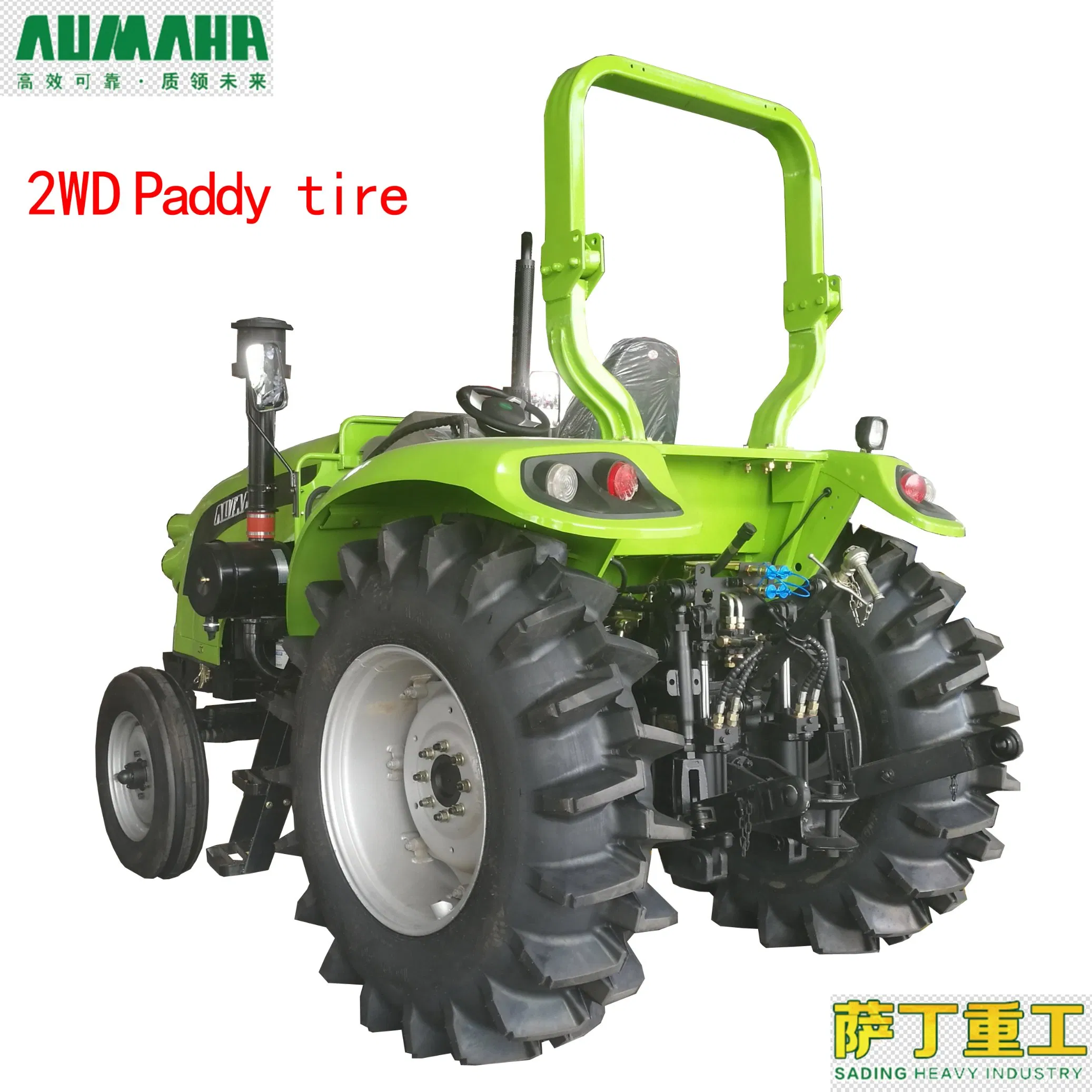

Tire (Front/Rear)		6.50-16/14.9-30(2WD),11.2-24/16.9-34(4WD) Optional: 12.4-24/ 18.4-30(4WD)
Tire pressure	kPa	230-210/180
Working device
Suspension system mode		Split type
Suspension device type		Post-position three point suspension
Category of suspension system		II category
Adjusting way		Force and position
Gear pump		CB130-F20K7
Hydraulic output device		Double-way valve
Safety valve open pressure	Mpa	17.5-18
PTO shaft type		Post-position, Independent
PTO shaft spline		6/8
PTO shaft spline diameter		ø35/ ø38
PTO shaft rev.		760/850, Optional: 540/1000
Engine cover		AUMAHR streamline
