Good Price China New Brand 100HP 4WD Farm Tractor with Powerful Diesel Engine Th- 1004
Agricultural Equipment 100HP 4WD Farm Tractor for SaleMain technical parameters of 100HP 4WD farm tractor:Main Technical Data of TH 1004 TractorTractor parametersModel NOTH-1004Type4 x 4 wheeled driveL x W x H(mm)4100 x 1810 x 2660Wheel base(mm)2072Front wheel tread(mm)1180,1280,1380(step adjustable......
Send Inquiry
Product Description
Agricultural Equipment 100HP 4WD Farm Tractor for Sale
Main technical parameters of 100HP 4WD farm tractor:
Main technical parameters of 100HP 4WD farm tractor:
| Main Technical Data of TH 1004 Tractor | ||
| Tractor parameters | Model NO | TH-1004 |
| Type | 4 x 4 wheeled drive | |
| L x W x H(mm) | 4100 x 1810 x 2660 | |
| Wheel base(mm) | 2072 | |
| Front wheel tread(mm) | 1180,1280,1380(step adjustable) | |
| Rear wheel tread(mm) | 1300-1500(stepless adjustable) | |
| Min ground clearance | 390mm | |
| Dry mass(kg) | 2825 | |
| Clutch | Dry type double-stage clutch | |
| Steering | hydraulic steering | |
| Transmission box | 12F + 12R gearshift | |
| Engine data | Engine brand | LD/QC/XC (Optional) |
| Engine model | Four-cylinder engine | |
| Engine type | Inline,cooled water,four stroke | |
| Engine Rated power | 73.5 kw | |
| Engine Rated speed | 2400(r/min) | |
| Fuel | diesel | |
| Tyre | Front Tyre | 8.3-24 |
| Rear Tyre | 14.9--30 | |
| PTO | Suspension type | Rear three point suspension |
| Pto speed | Dual-speed 540/760 or 540/1000r/min | |
| Pto shift & spine size | I38 Rectangle Spline with 6 teeth | |
| Lifting force(KN) | 20 | |
| Certification | ISO.CCC,CE | |

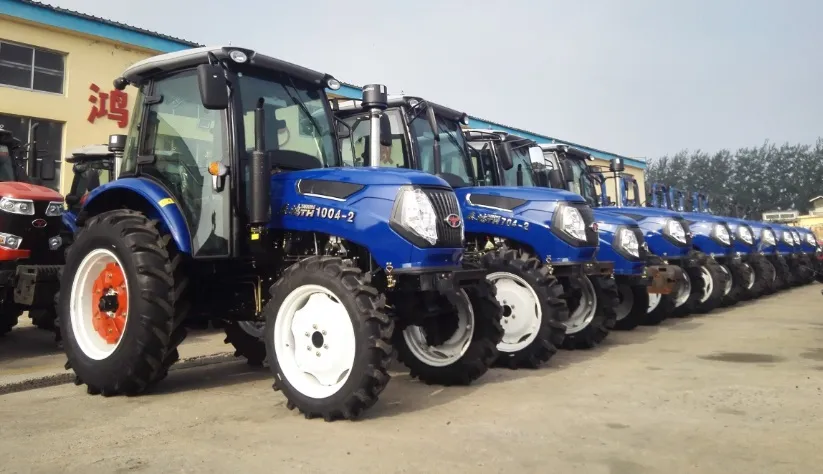

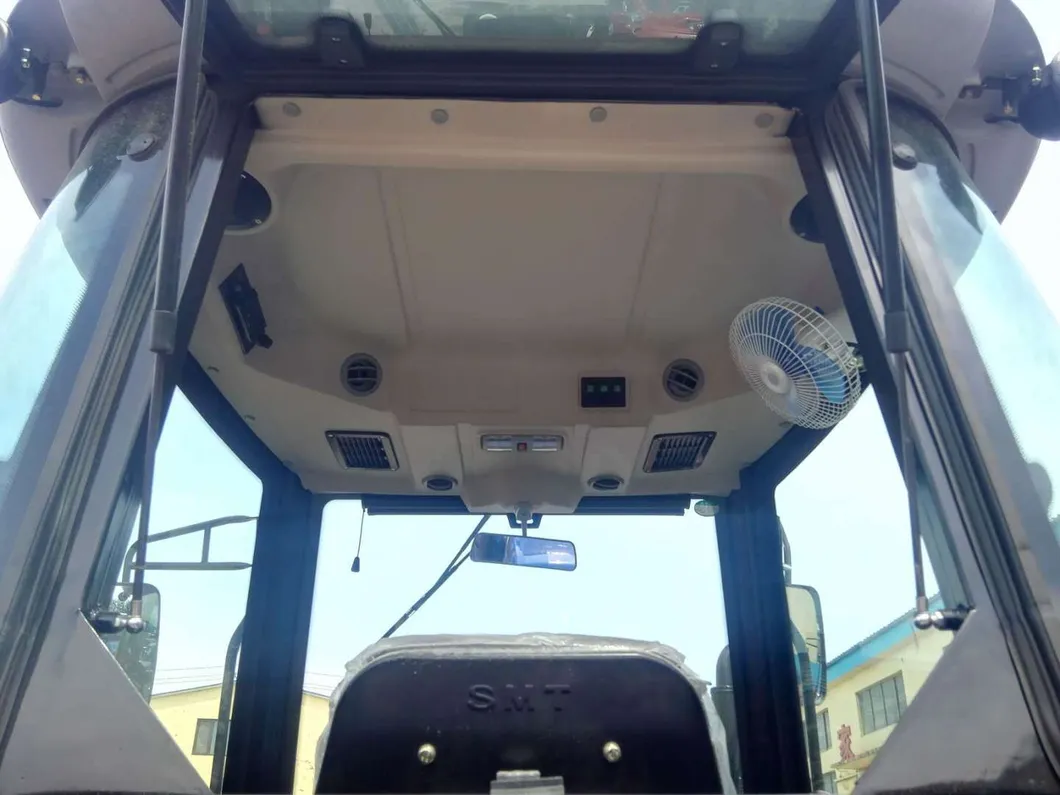

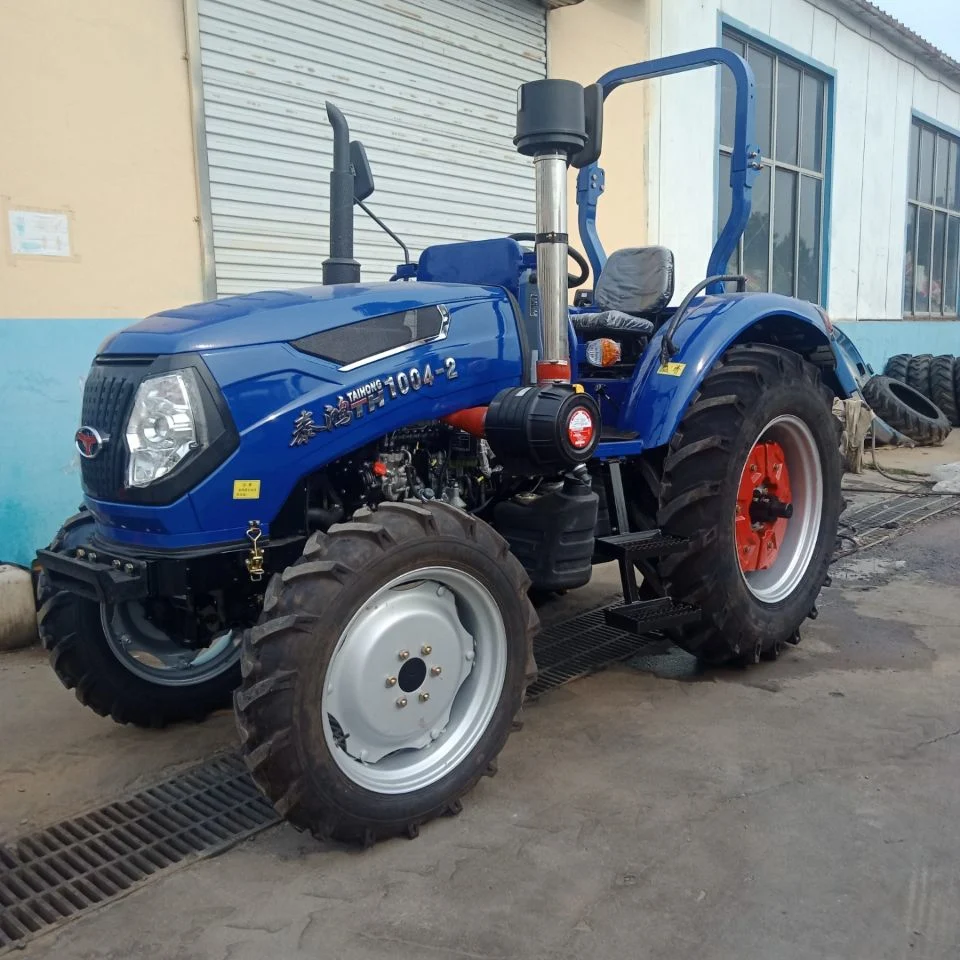

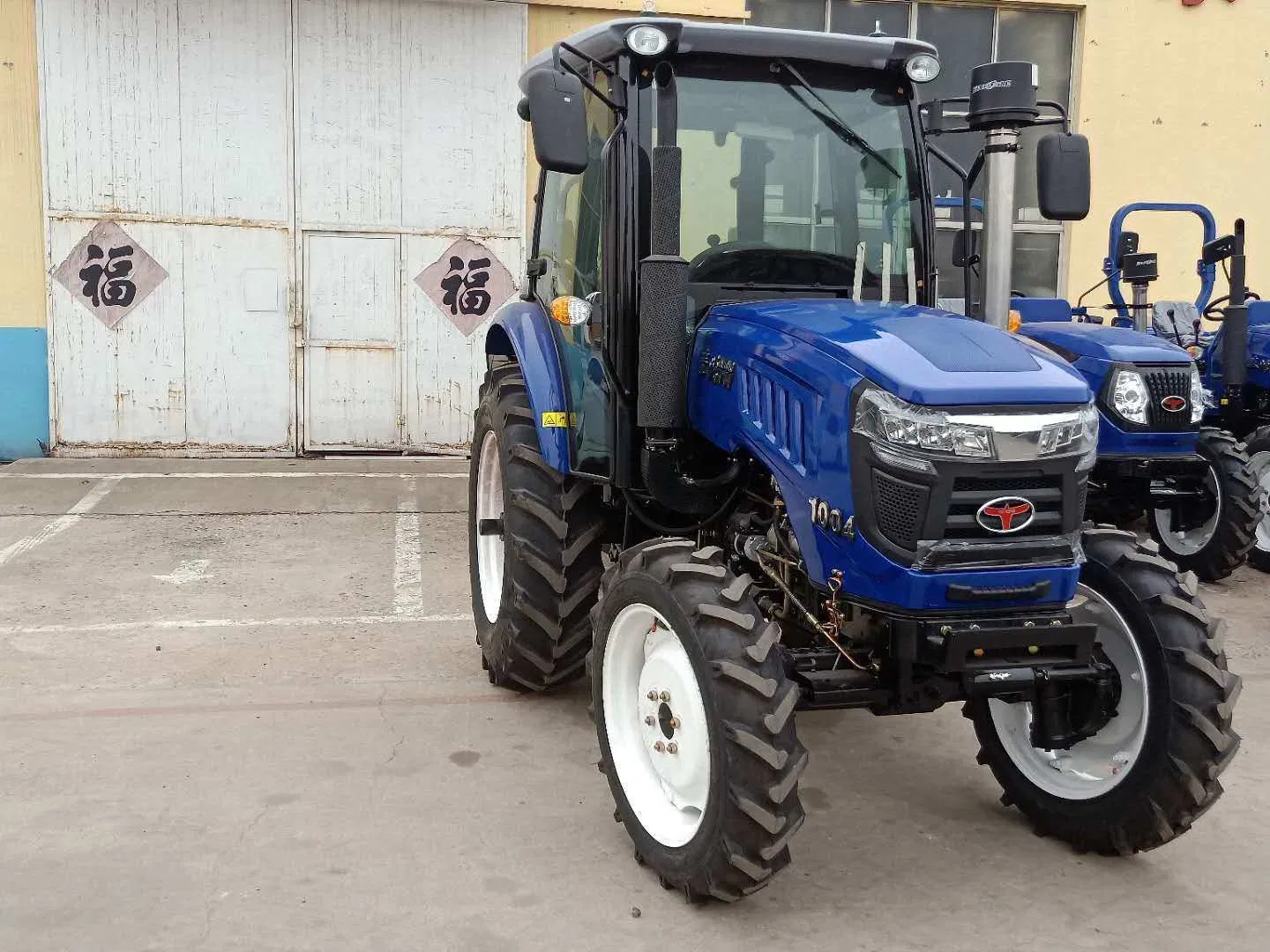

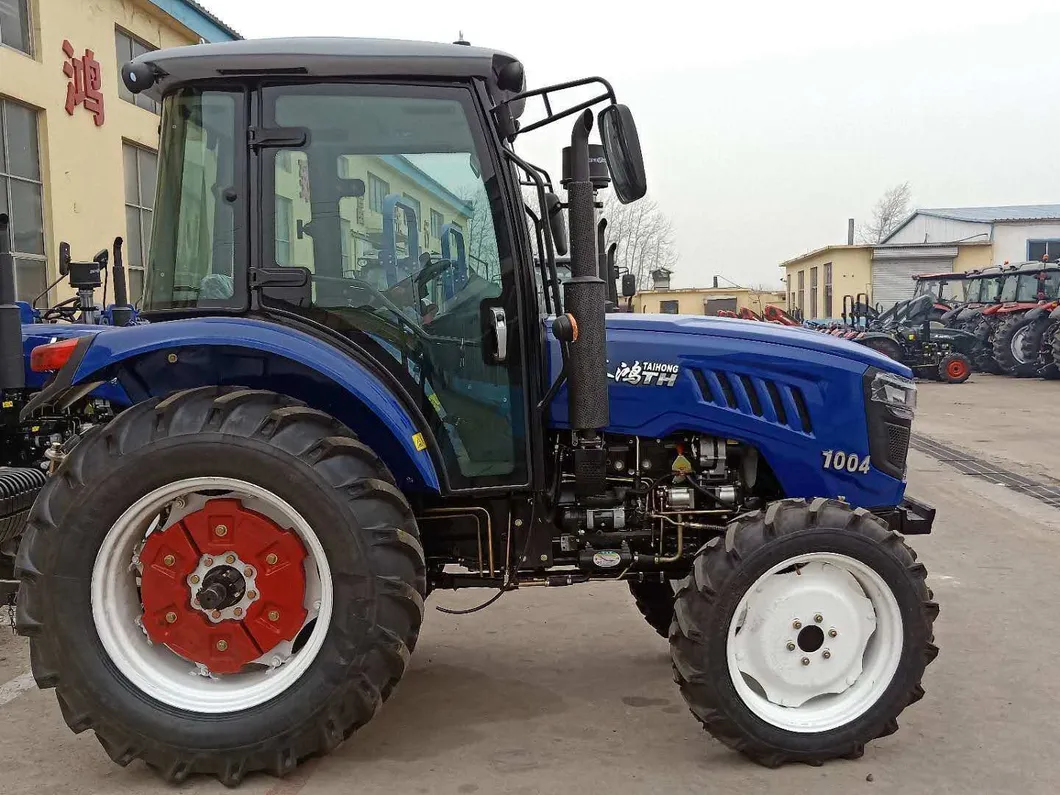

100HP 4WD Farm Tractor show:
Taihong Tractor Company Profile:
Weifang Taihong Tractor Co.,Ltd established in 1990, with coverage of 206677 square meters, is one of the most professional tractor manufacturer in China. With 20 years development, Taihong is capable of producing tractor from 25hp to 240hp and has a large market share at home and abroad. Taihong has its own foundry, casting, machinery processing center. Some parts are made by itself to realize the whole quality control from spare parts.
The products are certified by ISO9001, SGS, CCC and BV.

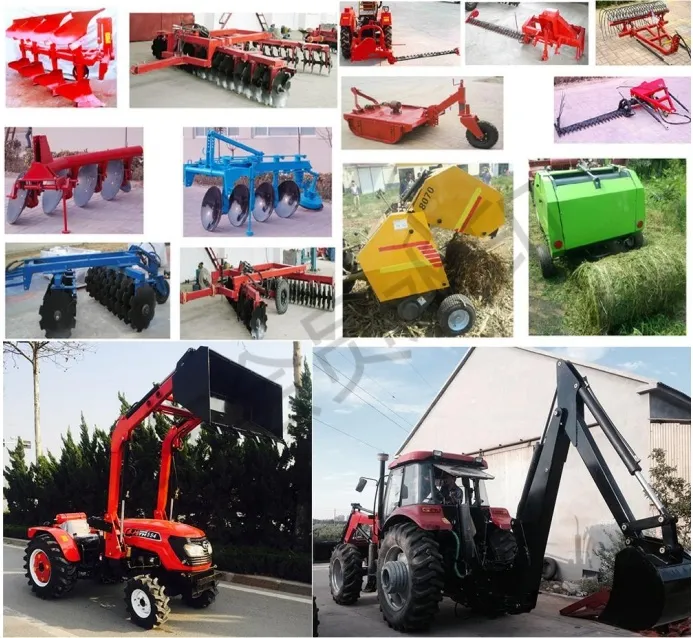

Implements matched for TH series tractor
Taihong Tractor Company Profile:
Weifang Taihong Tractor Co.,Ltd established in 1990, with coverage of 206677 square meters, is one of the most professional tractor manufacturer in China. With 20 years development, Taihong is capable of producing tractor from 25hp to 240hp and has a large market share at home and abroad. Taihong has its own foundry, casting, machinery processing center. Some parts are made by itself to realize the whole quality control from spare parts.
The products are certified by ISO9001, SGS, CCC and BV.
Implements matched for TH series tractor

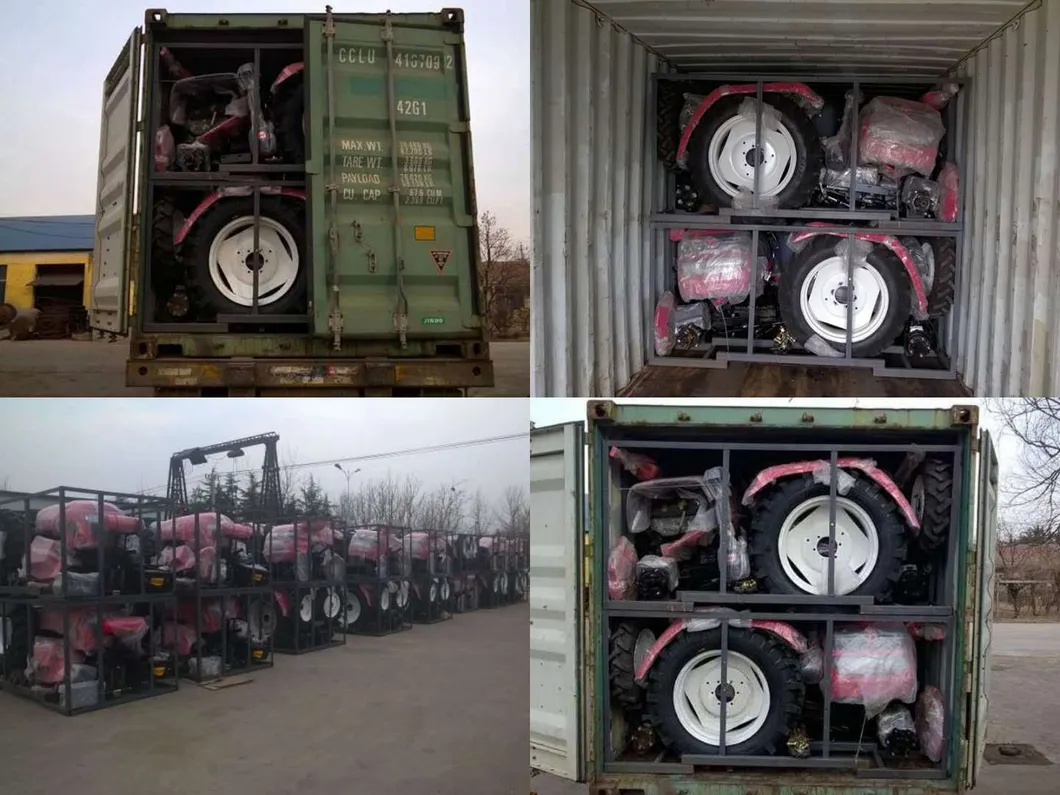

Professional packing and delivery:

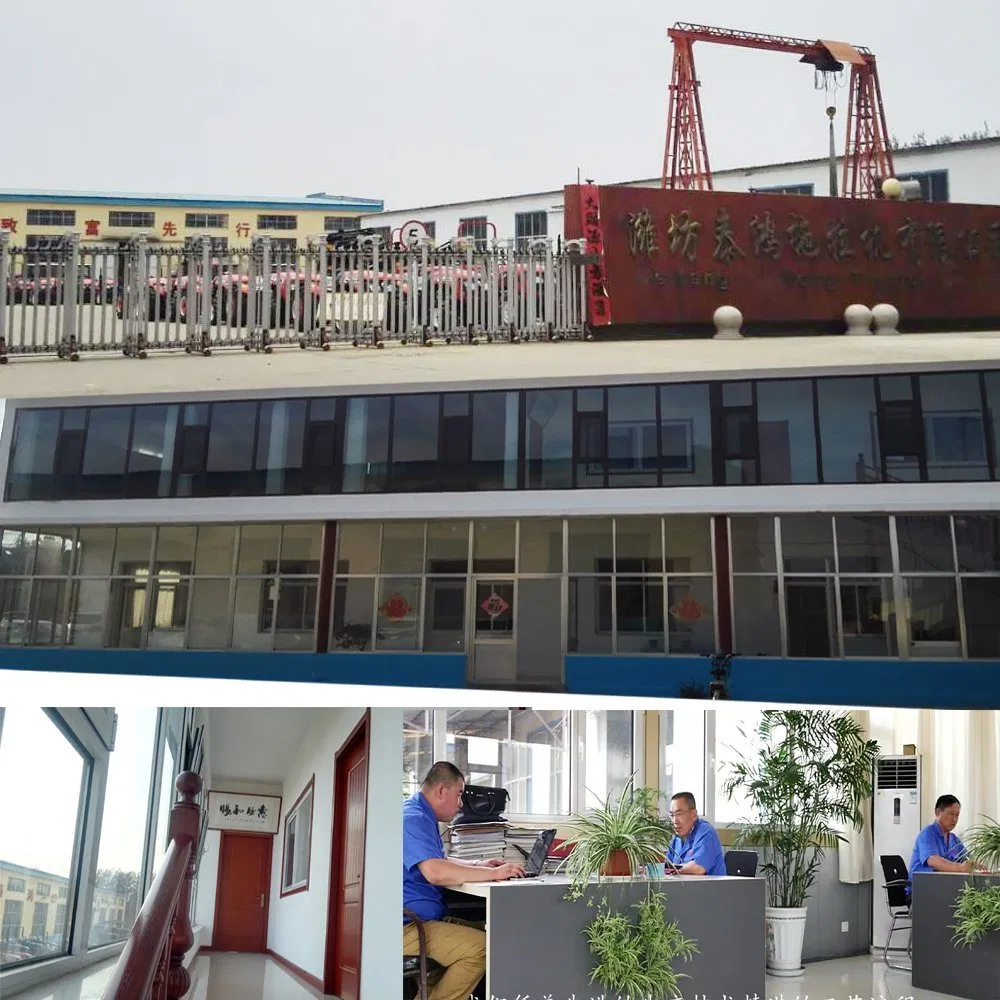

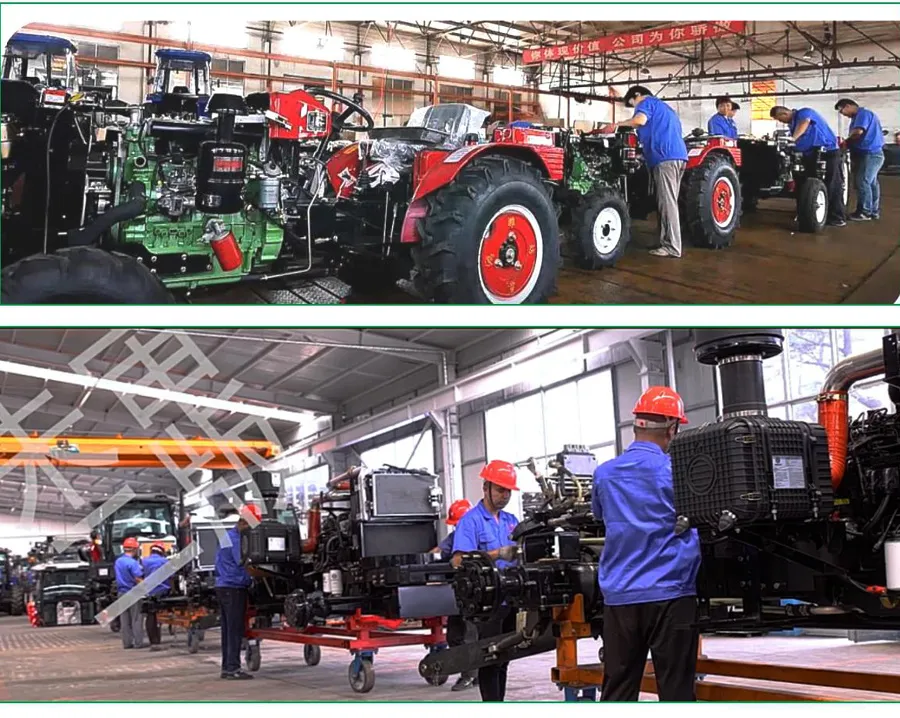

Factory&office Show :

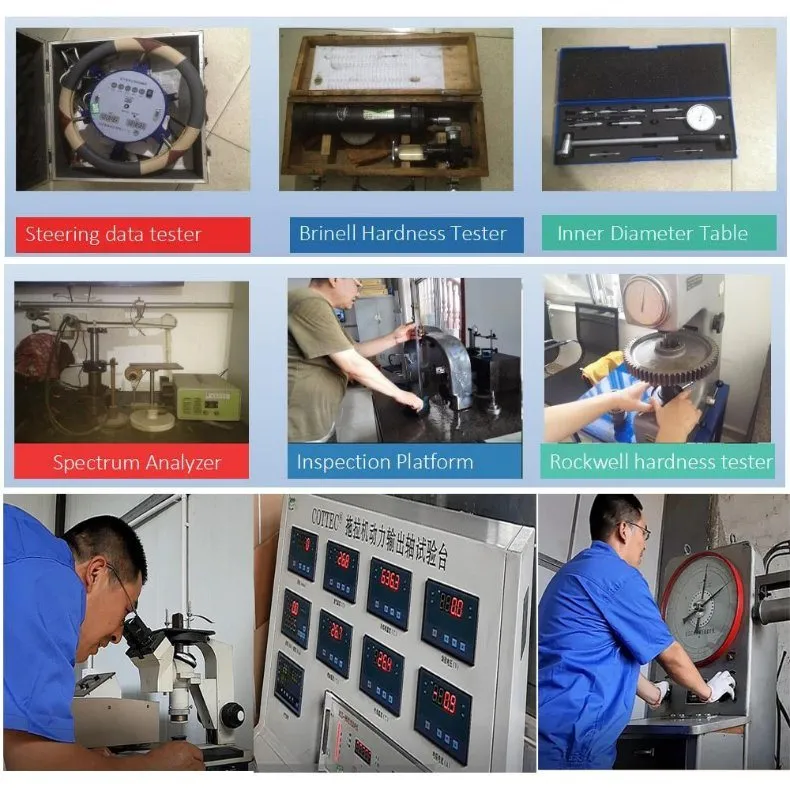

Strict quality control :
Service and Warranty:For main parts,warrnty period is one year from the BL date. During the warranty, if the problem is occuring, please send us problem desctriptions and photos for technical analysis, we will be acting immediately and give solution within 24 hours. From technical analysis,if the problem is because of make, craftsmanship and the manufacturing reason; the relative charges will be borne by seller; if the problem is caused by improper operation, the buyer will take the responsibility and bear the relative charges and seller will try his best provide and other possible support and assistance to solve the problem.
Contact information:
