Product Description

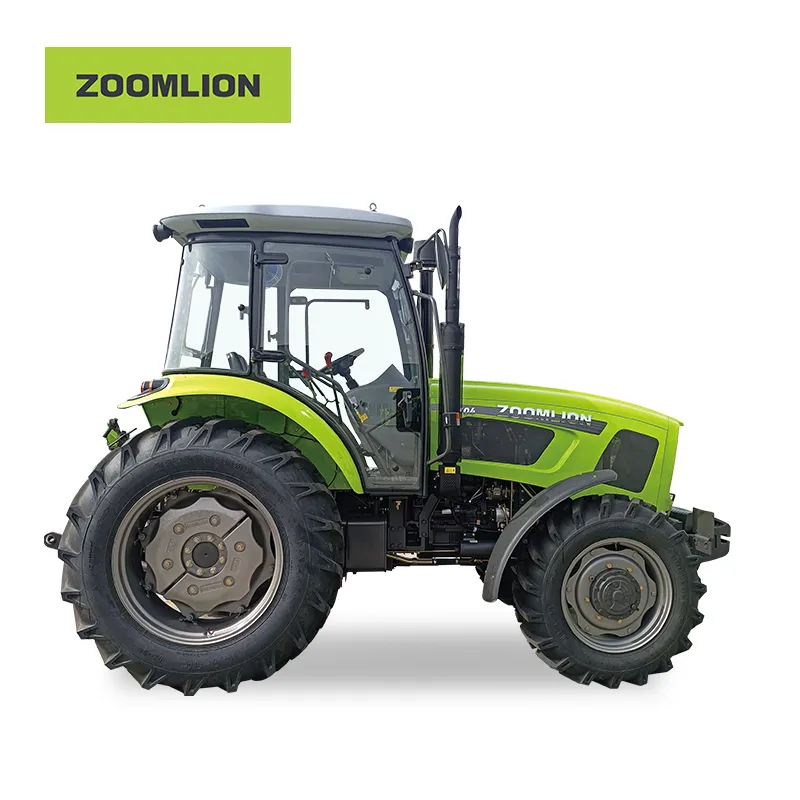

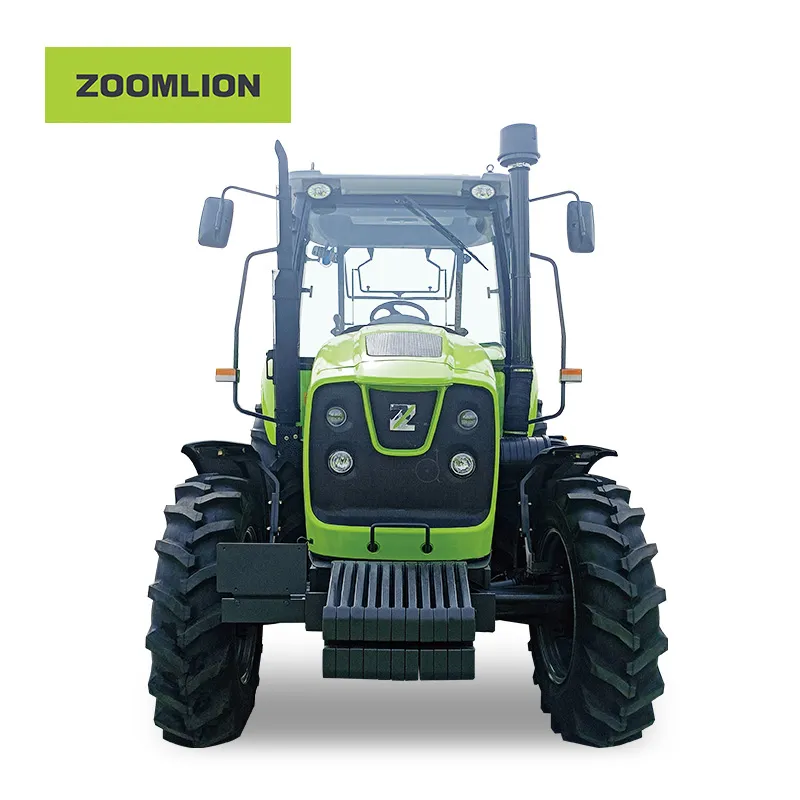

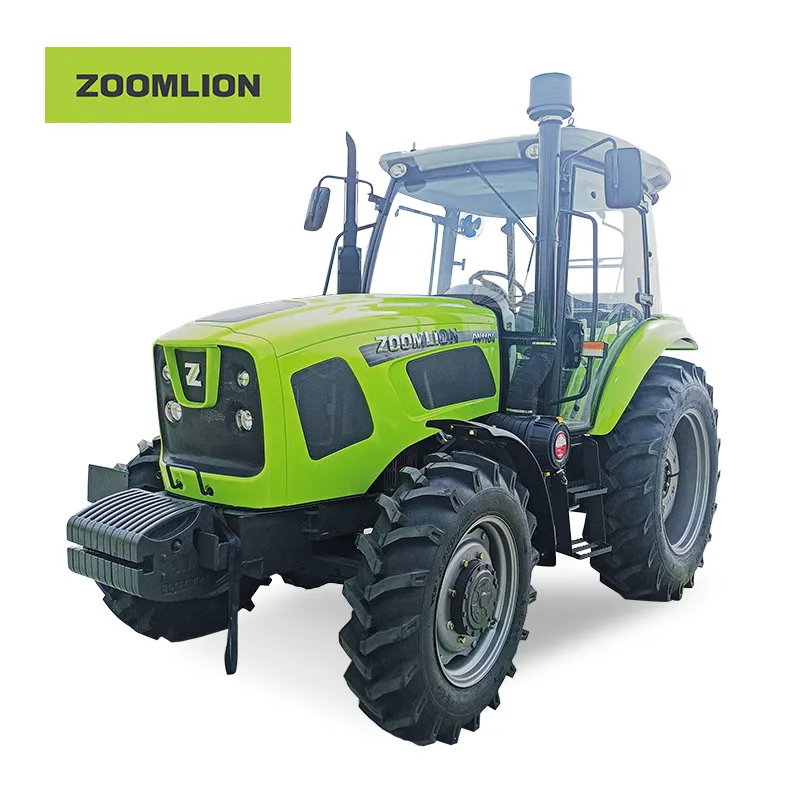

RN904 Wheeled tractor
All-terrain use, how versatile
Powerful and reliable
Excellent performance, high efficiency
Comfortable and easy operation
Parameters
All-terrain use, how versatile
Powerful and reliable

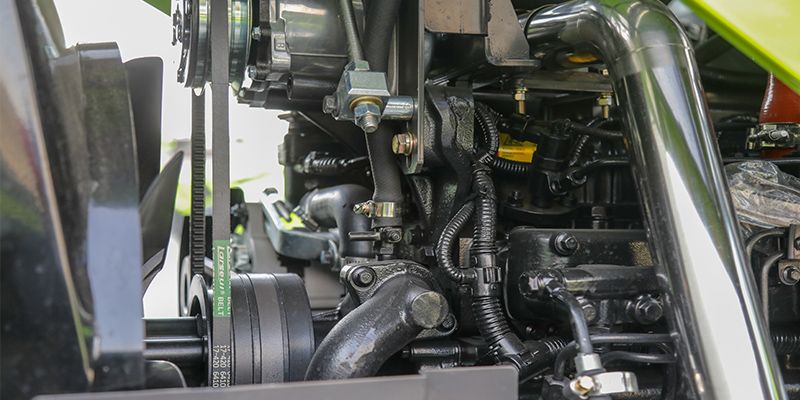

- Matched with CRDI engine, Powerful and diesel saving
- Enhanced independent double-acting clutch, imported high strength wearing resistant material, high torque and reliable
- The gearbox reverse speeds are optimized, the key parts of the shift fork are forged as a whole, the service life is greatly improved
- By selecting high-quality water-proof oil seals for key parts, the sealing performance of the transmission system is improved, the risk of oil leakage is reduced, and the quality is improved.
Excellent performance, high efficiency
- 16F+8R Transmission box, various ideal working speeds required for various operations, high efficiency

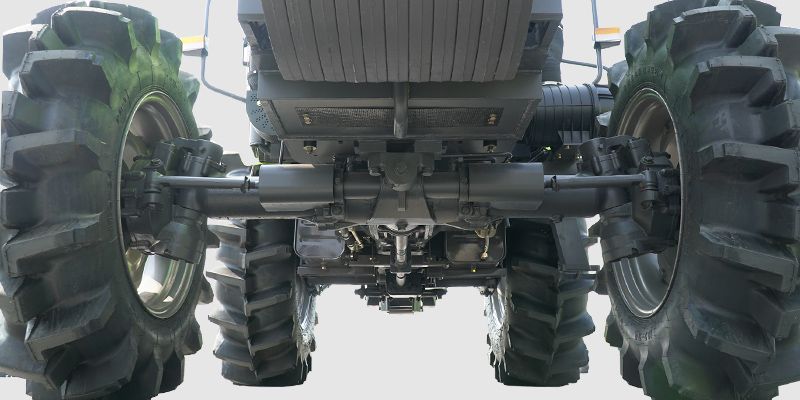

- Adopting special drive axle for paddy field, water resistance is excellent, 4.8m turning radius, steering is flexible, working efficiency is higher;
- The minimum ground clearance at the front axle position can reach 485mm, and the vehicle has good passability;
- Two-speed power output options, wide range of supporting equipment;
- Full hydraulic steering system with independent oil circuit, flexible steering, safe and reliable;
- Strong pressure lifter, with single and double action switch, CAT II suspension system, meeting the matching requirements of various machinery;
- Two hydraulic outputs, capable of matching with folding rake, turnover plow and etc., good adaptability;
- Large area raditor, good heat dissipation efficiency
- 150L diesel tank, Long operation time.
Comfortable and easy operation

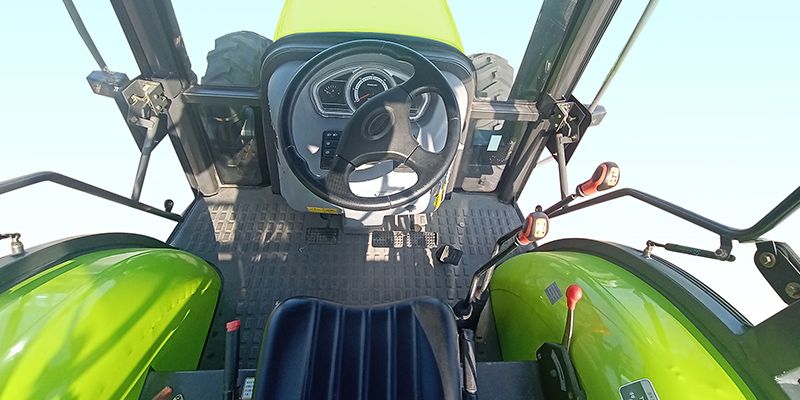

- New generation ZOOMLION 3.0 cabin
- A/C cab is designed based on ergonomics, which has good dust-proof, noise-reduction and heat-insulation effects.
Parameters
| Type | Unit | RN904 |
| Size(L×W×H) | mm | 4640×2095×2950 |
| Wheelbase | mm | 2350 |
| Minimum operation weight | kg | 5060 |
| Minimum ground clearance | mm | 485 |
| Emission | / | Nation III |
| Rated power | kw | 66 |
| Diesel consumption | g/kw•h | ≤225 |
| Cluth type | / | Dry type, independent control double action |
| Transmission gearbox | / | 16F+8R |
| Braking system | / | Single disc, wet and disc type |
| Tire size(front/rear) | / | Paddy field:Standard11.2-24/16.9-34, Paddy field:optional 12.4-28/16.9-34 or 11.2-24/13.6-38 Dry field:Standard 12.4-24/16.9-34 |
| Hydraulic lifting system type | / | Split type |
| Tillage control method | / | Position control, Height control |
| Hydraulic output valve | / | Two sets |
| Hydraulic hitch | / | Three-point rear suspension, Type II |
| Traction force | KN | 36.9 |
| Power output speed | r/min | 760/850,optional 760/1000,540/1000,540/760 |
| Safety frame or cab | / | A/C cab |
