Manufacturer 1004 4WD 110HP 100HP 90HP Farm Wheel Tractor
Product name:Manufacturer HX1004 4wd 100hp farm wheel tractorProduct specification From 90hp to 100hp tractor specification :Item 90hp100hp110hp120hpModel904100411041204Drive 4X4Demession (mm) 4530x2050x2930weight 3690-3840Front wheel ......
Send Inquiry
Product Description
Product name:
Manufacturer HX1004 4wd 100hp farm wheel tractor
Product specification
From 90hp to 100hp tractor specification :
| Item | 90hp | 100hp | 110hp | 120hp | ||
| Model | 904 | 1004 | 1104 | 1204 | ||
| Drive | 4X4 | |||||
| Demession (mm) | 4530x2050x2930 | |||||
| weight | 3690-3840 | |||||
| Front wheel | 1490.1580.1650.1740Adjustable | |||||
| Back wheel | 1520.1620.1740.1850 Adjustable | |||||
| Wheel base | 2195(1970) | |||||
| Minimum ground clearance | 405(390) | |||||
| Number of gears | 16F+8R | |||||
| Engine Model | YTO LR4M5 | YTO LR4M3Z | YTO LR6B3-23 | YTO LR4M5Z-23/QC6105 | ||
| Engine Form | Water-cooled, inline, four-stroke, direct injection | |||||
| Rated power | 66.2 | 73.5 | 81 | 88.2 | ||
| Rated speed | 2300/2400 | |||||
| Transmission | Composition formula 4X(2+1) x2 | |||||
| Clutch | Monolithic, dry, often combined, double-acting clutch | |||||
| PTO speed | 540/760 or 540/1000 or 760-850 | |||||
| Tire | 12.4-24/16.9-34 | |||||

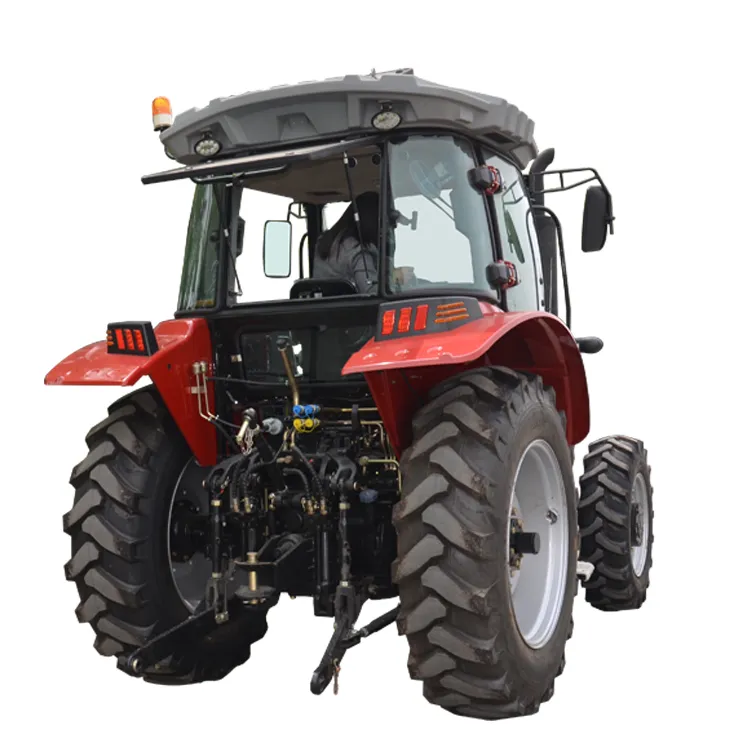

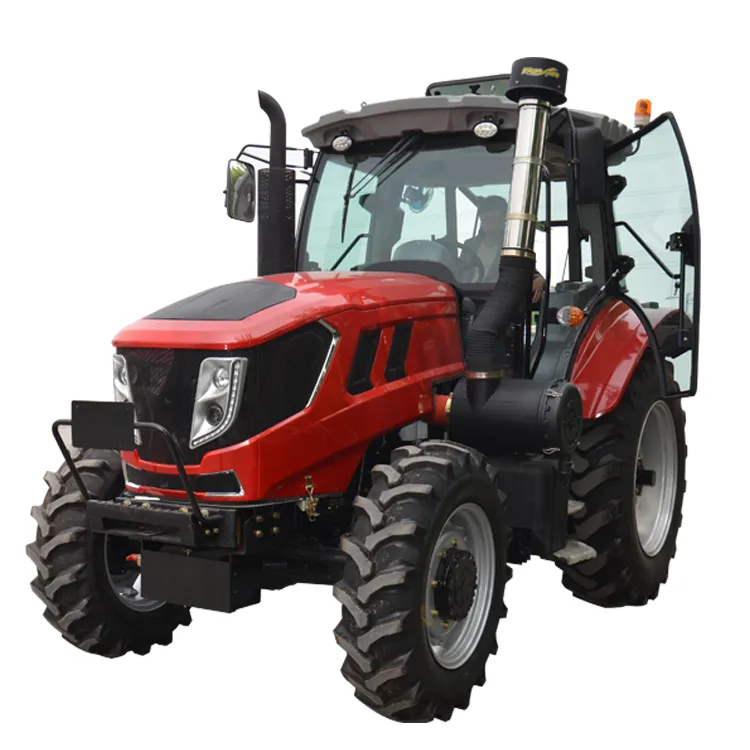

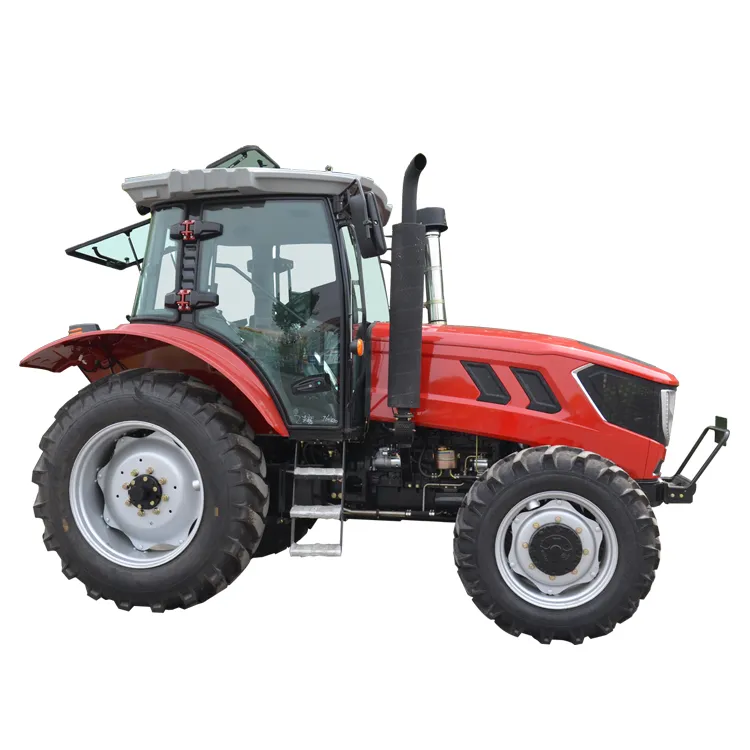

product pictures:
Packaging & Shipping:
Process wheel package,
without cab ,20ft container load 1 unit .
with cab ,90hp to 110hp ,20ft container load 1 unit ,40ft container load 3 units.
120hp with cab ,40ft container load 2 units .

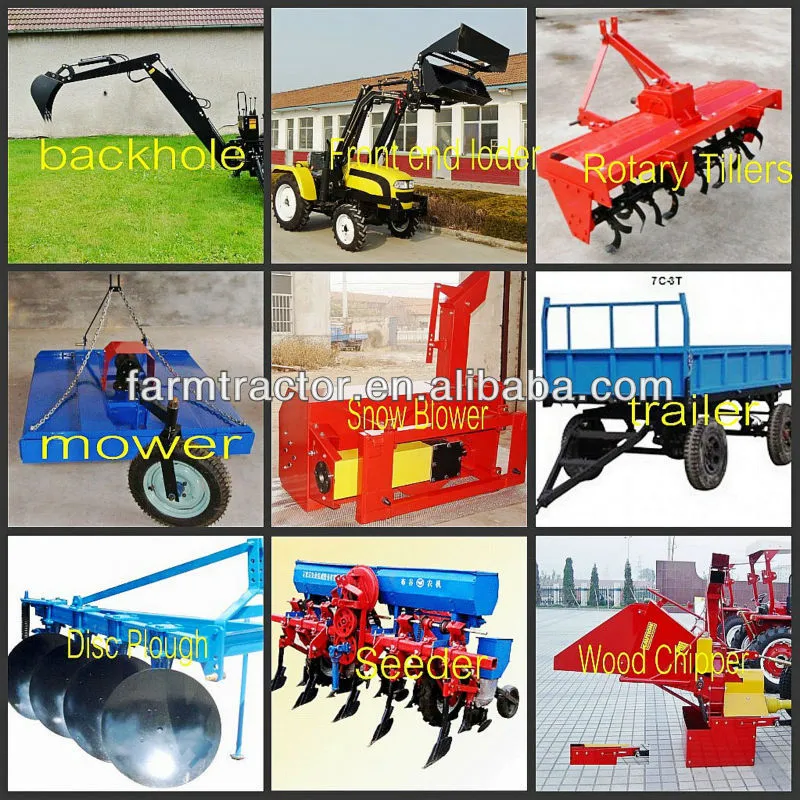

Implement (more implements,kindly contract me):
Service :
Warranty time and the Spare Parts
1. Warranty time
We supply you 2 years warranty time.
2. Spare Parts
The Easy-damage parts, we will send you together with the tractor for free. And in warranty period, if the spare part is not work because of the quality, we will send you new parts for free.
3. Tool Box
We will send you the tool Box For free.

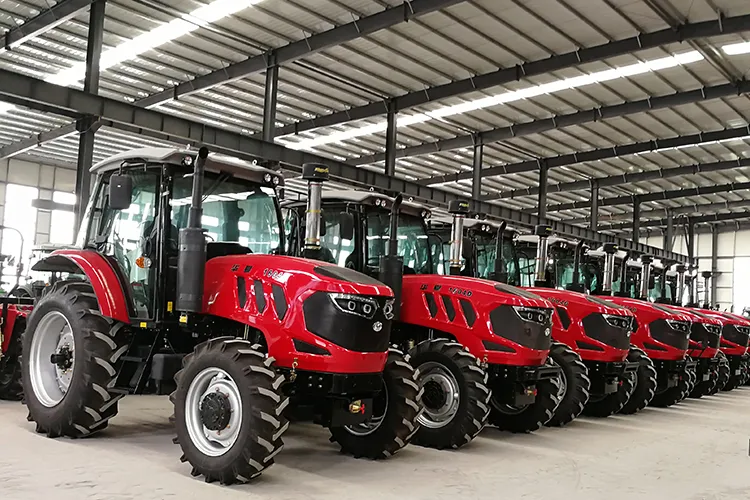

Company :
we are tractor manufacturer in china for 17 years ,
