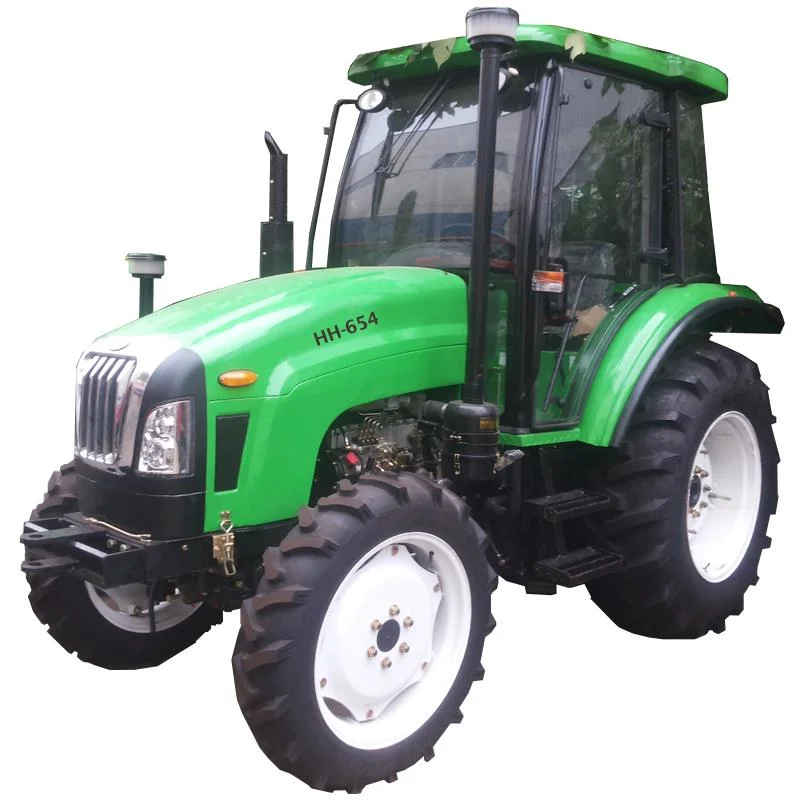

China Small Power 45HP 2WD Agricultural Tractor/Farm Tractor

Product Description

Popular 45HP 2WD Mini Tractor

Superiority of 45HP 2WD Farm Tractor

A). Assembled with creeping shift, double stage clutch, dual-way hydraulic output and hydraulic steering, which is popular on international market.

B). With the characteristics of compact structure, mini size, reasonable power, various function, easy operation, reliable performance and environment protected, it is a right tractor for family and farm for agriculture and gardening.

C). With front loader and back hoe, this series tractor can do various kind of job engineering

D). With the fluid driving on whole structure, it has characteristics as compact structure and agile operation, which leads it work freely in incommodious field where large machine can not achieve.

E). The working implements are connected with tractor in quick linkage type, and hydraulic pipes are connected by quick coupling, which are easy for assembly.

F). The tractor hydraulic system affords power to front loader, back hoe and tractor lift equipments. Hydraulic oil tank is designed according to the international standard, which is easy for maintenance.

Technical Data

Model		CHHGC450
General Specifications	Type	4*2
	Overall dimensions LWH(mm)	382917082200
	Constructional weight(kg)	1790
	Rated traction force(kn)	9.1
	Wheel base(mm)	2044
	Front wheel tread(mm)	1270-1670(Adjustable)
	Rear wheel tread(mm)	1220-1620(Adjustable)
	Min. land clearance(mm)	420
	Min. quality in use(kg)	1950/2330
	Front wheel tyre size	6.0-16
	Rear wheel tyre size	12.4-28
	Min.turning radius(mm)(Unilateral Nonbraking/Unilateral Braking)	3800/3400
	Theoretical speed(km/h)	Creeper	Shuttle gear
	I	0.45	2.63
	II	0.71	4.13
	III	1.1	6.44
	IV	1.7	9.93
	V		7.91
	VI		12.45
	VII		19.4
	VIII		29.86
	Reverse I	0.6
	Reverse II	0.95
	Reverse III	1.49
	Reverse IV	2.28
Engine	Model	JD495T
	Type	Inline,Vertical,Water-cooling,Four-stroke
	12 hours power(kw)	33.1
	Rated speed(r/min)	2300
	Fuel consumption(g/kw.h)	<=245
	Max.torque(n.m)	>=190.8
	Speed of Max.torque(r/min)	<=1725
	Bore stroke(mm)	Φ95*105
	Diesel consumption(g/kw.h)	<=2.04
	Starting mode	Electric start
Break System	Service brake	Mechanical\Hydraulic\Wet\Disc
	Parking brake	Locking footplate type
Transmission	Clutch	Dry\Single piece\Double acting\Constant combining
	Gear box	8 forward gear,4 reverse gear,straight mesh sleeve shift,additional equipment creeper,shuttle structure
	Steering	Hydraulic steering
	Steering type	Front wheel steering
	Main drive	Spiral bevel gear
	Differential mechanism	Pin-type,two planet bevel gear,closed
	Final drive	Single srage,external,planetary gear
Operating System	Lifter tilling depth control	Linksening,force and position control
	Max.lifting capacity(kn)	>=7.5
	Suspension type	Postposition\Three-point\I category
	Speed of P.T.O.(r/min)	(540,1000) or (720,1000) or (540,720)
	Type of P.T.O.	Postposition,semi-independent
	Traction Equipment	Swing rod
Optional Disposition		Front ballast\Rear ballast\Air brake\Sealed luxury cabin and no hydraulic output\CC 4L68 engine

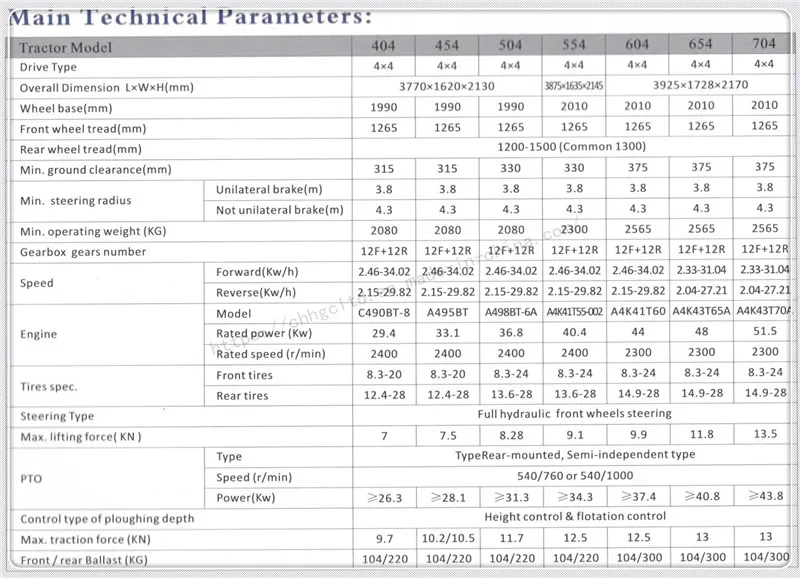

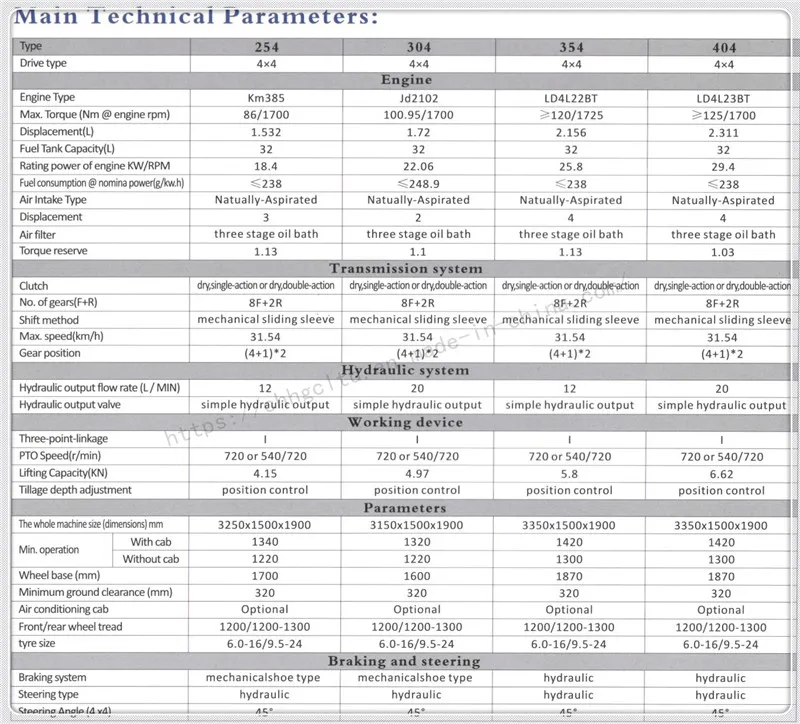

Technical Parameters

Small Power 45HP 2WD Agricultural Tractor/Farm Tractor

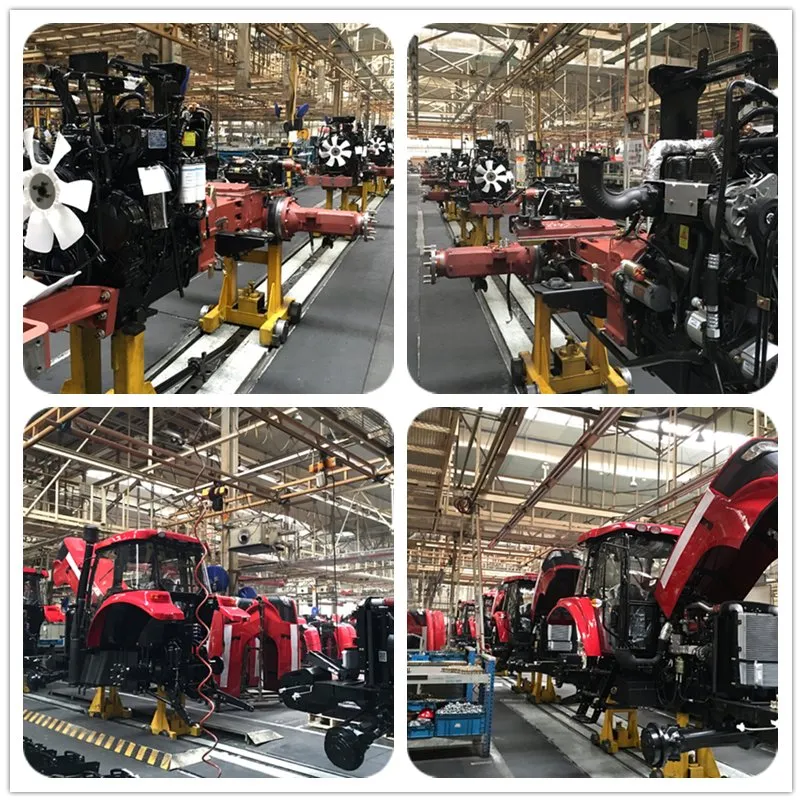

Production Workshop
Small Power 45HP 2WD Agricultural Tractor/Farm Tractor

Certificate
Small Power 45HP 2WD Agricultural Tractor/Farm Tractor

Business Partners
Small Power 45HP 2WD Agricultural Tractor/Farm Tractor

FAQ

Q1. How to ship the Tractors?
A: By container, bulk ship, RORO.

Q2. Do you have different horsepower tractors?
A: Yes,we supply different model tractors and exported to many countries.

Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
T/T, deposit in advance, and balance paid before delivery from factory.

Q4. Which model tractors do you supply?
A: We supply all kinds of tractors such as walking tractors, wheel tractors etc,.

Q5. What is your terms of delivery?
A: FOB, CIF.

Q6. How about your delivery time?
A: Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: What can you guarantee to your business partner?
A: Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
