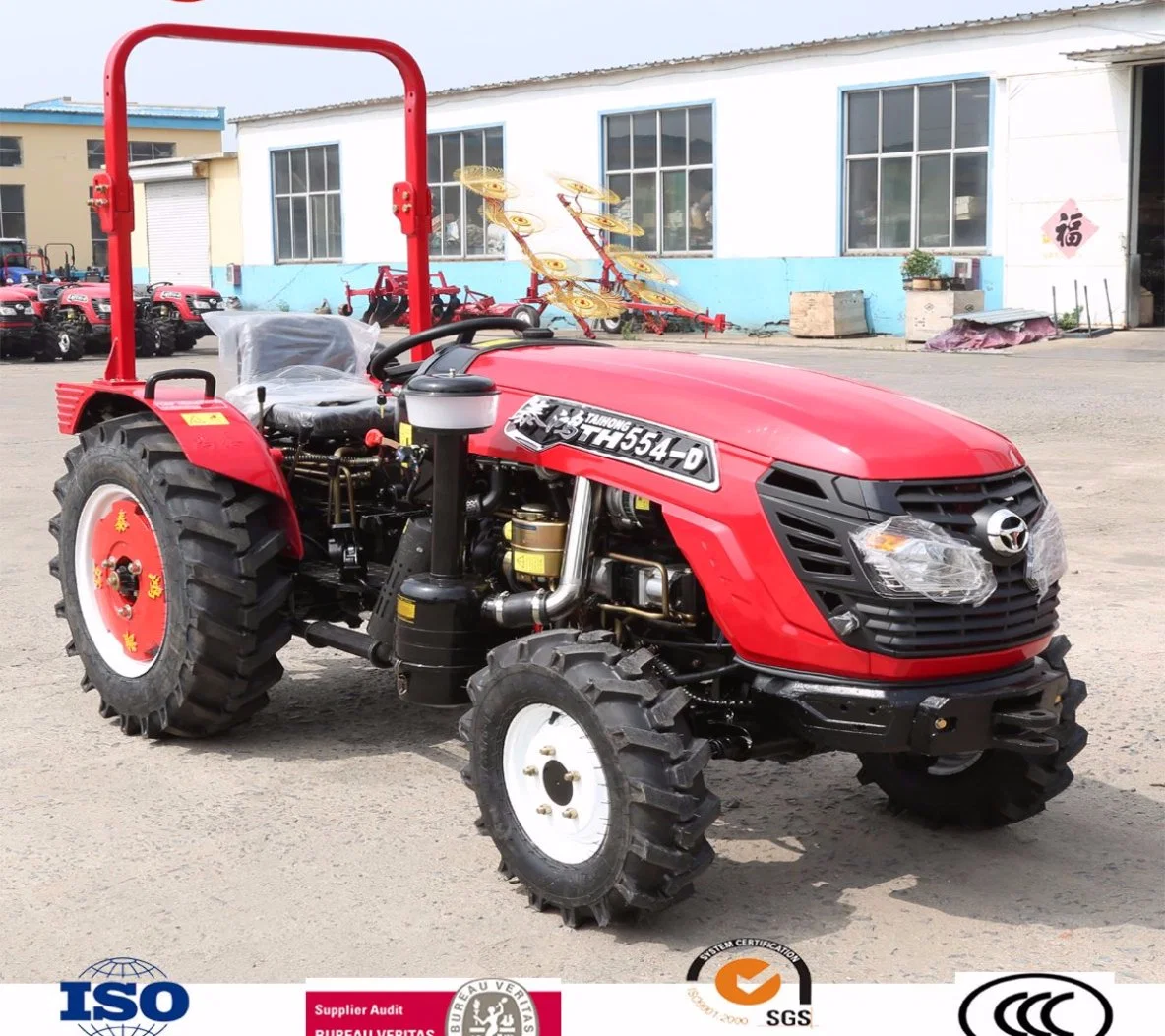

Vineyard Low Profile Big Power Orchard Garden Tractor 80HP Farm Mini Tractor
1. Basic Technical DataModel TH804-3type 4×4 wheel typeOverall dimension(mm) length3510 width 1320 height 1230 wheel treadfront wheel 960.1000rear wheel 1200-1350Wheel base 1900Min.Ground clearance290structure weight (kg)1597Diesel engine model LD4TD80 type inline water cooled four stroke......
Send Inquiry
Product Description
1. Basic Technical Data
2. Characteristics
Strong Power:
The farm tractor is in the top rank among the same industry in China. Its matched power brand can be Laidong
High efficiency:
1.The tractor adopts fully power steering hydraulic brakes system ,three-point linkage with Category I.
2.PTO speed can be selected as 540/1000rpm to be suitable for different farm implements.
3.The tractor independently operated two stage clutch, reasonable 8F+2R shift gears to keep high working efficiency in various field work, transportation and engineering tasks.
High reliability: Strong double pressure lifting device, powerful lifting power, fast lifting speed, stable and reliable.
Comfortable driving experience: Hydraulic steering,cabin with AC, anti-dust, low noise and wide field vision in operation.

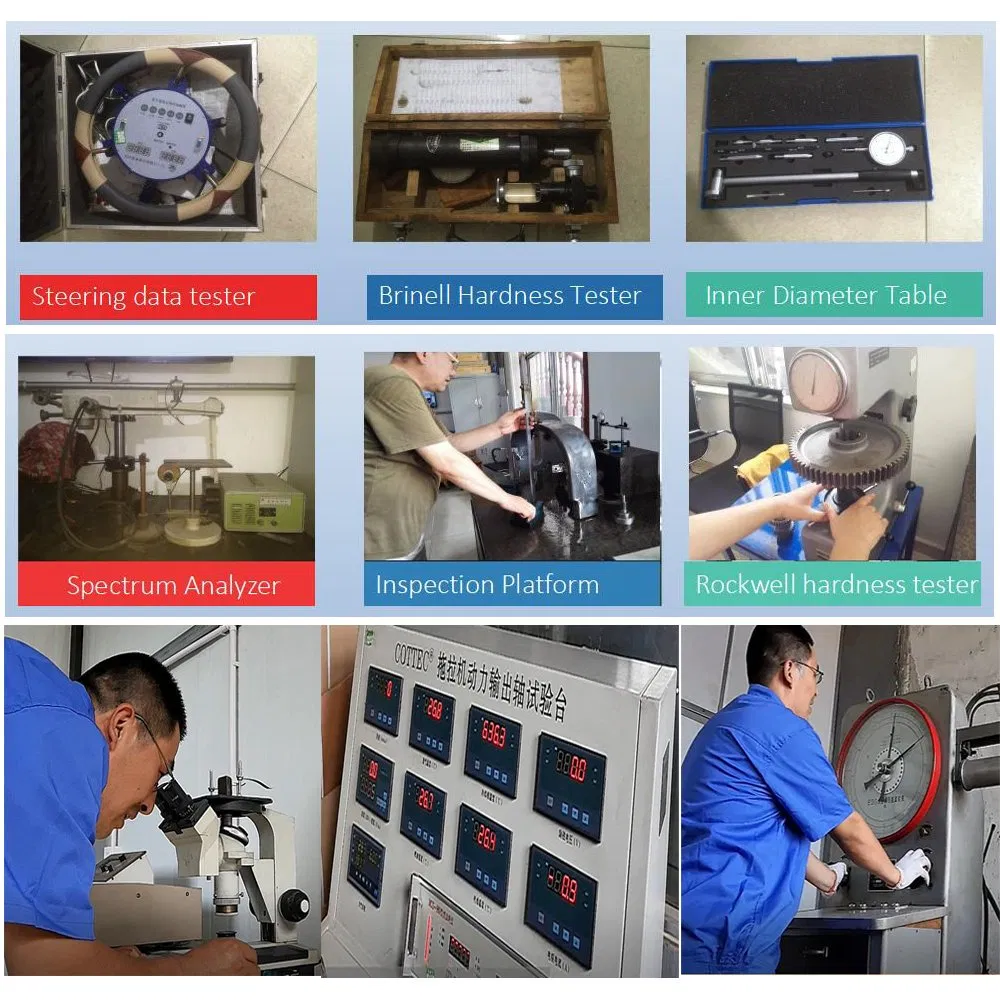

3. Quality control on Spares and finished to keep quality and performance consistent.

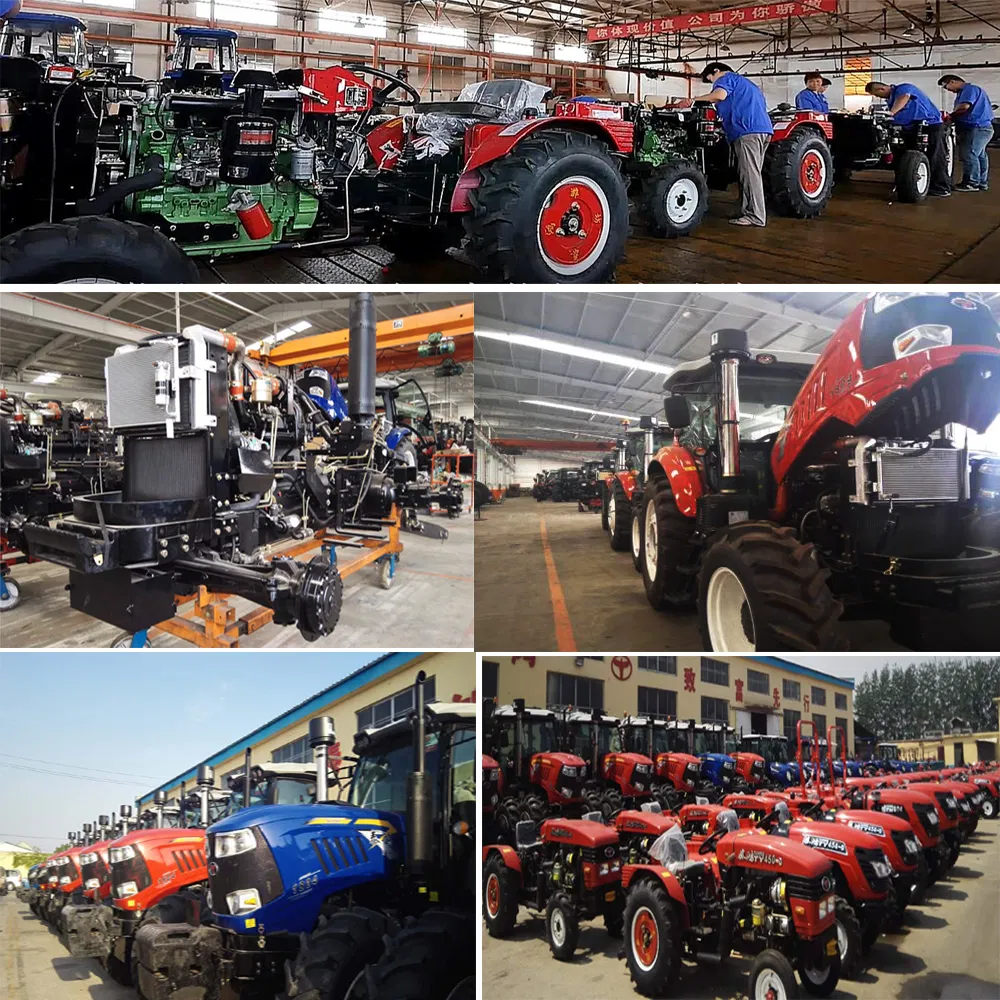

5. Assembly lines and suffiecient stock

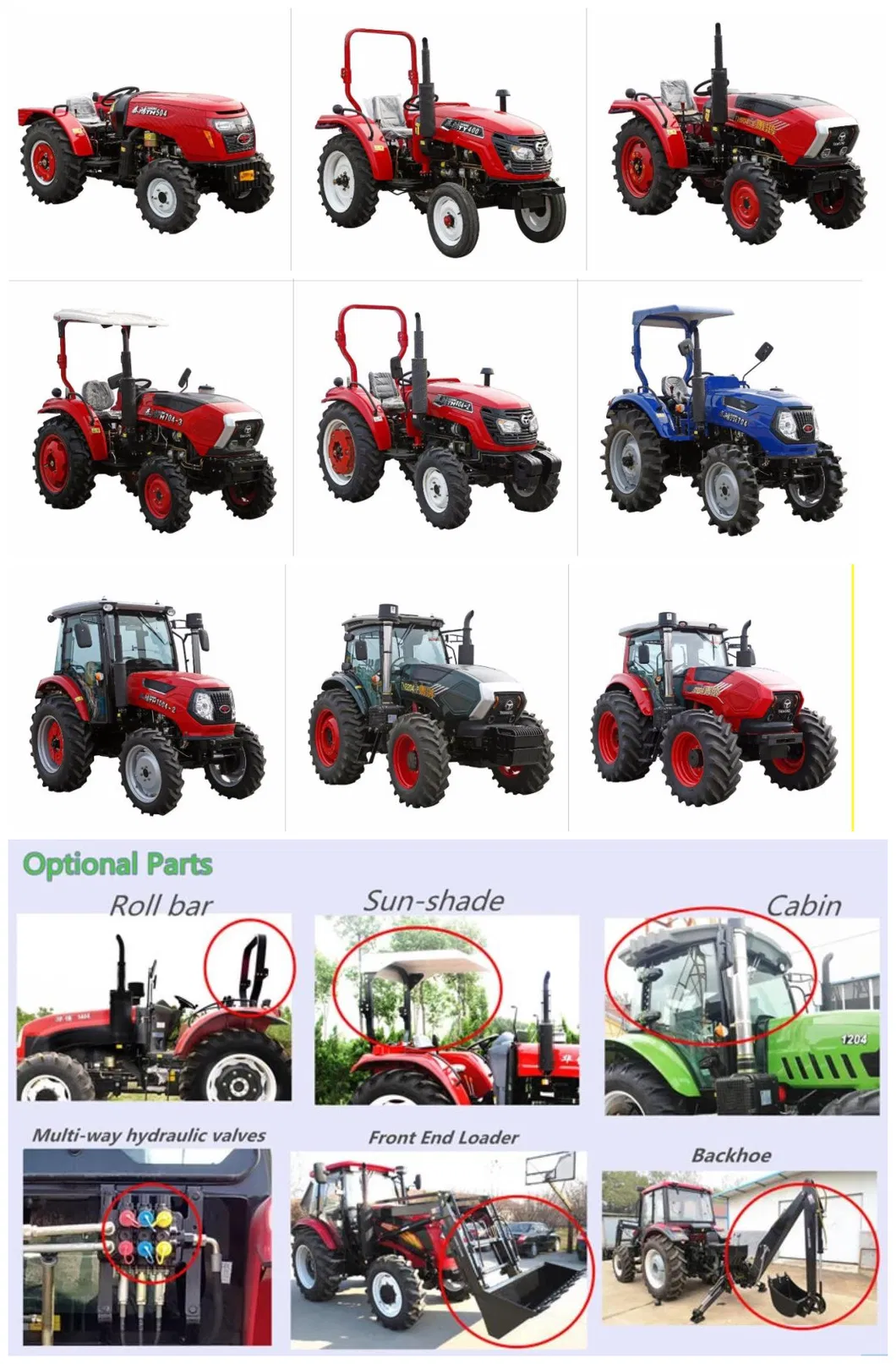

6. Our Tractor 25hp-240hp

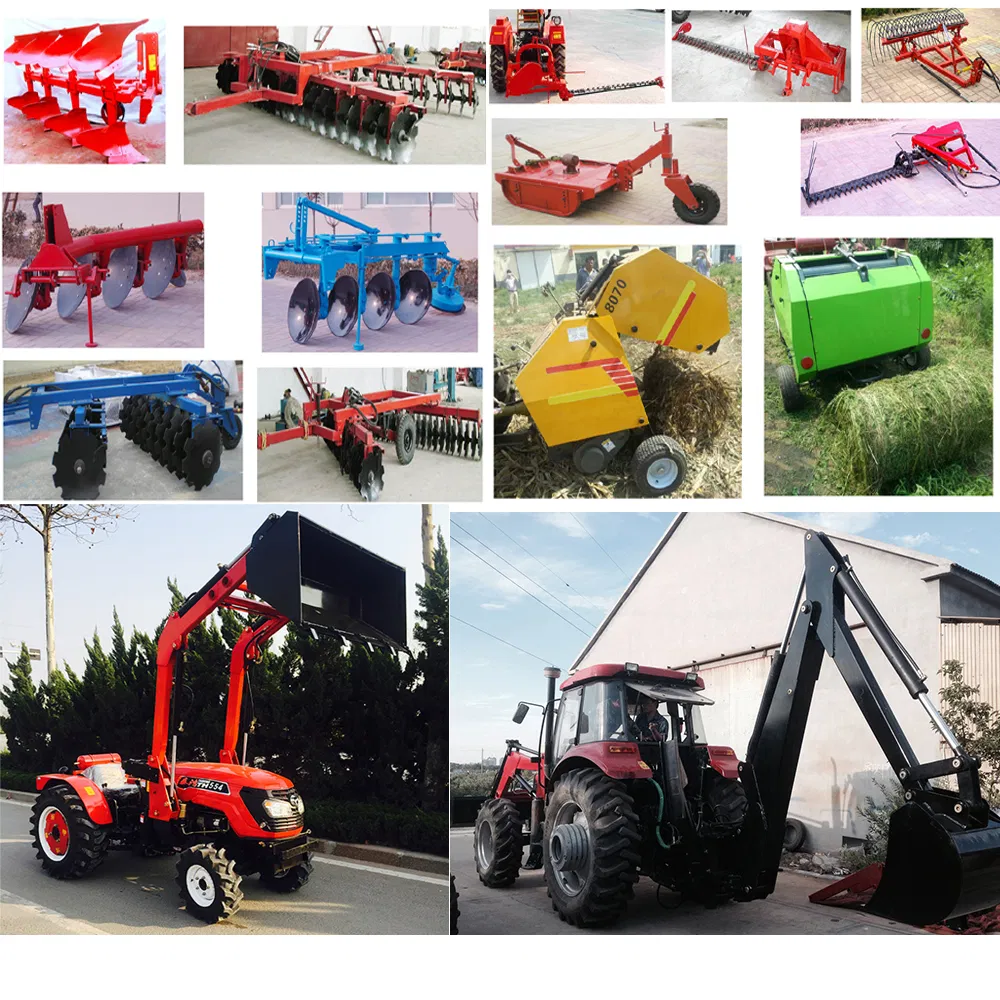

The farm implements: Disc plough, disc harrow, cultivator, potato harvestor, mower, front end loader and pbackhoe, snowbrush, hay baler, planter etc.
7.Package: metal frame package or nude package
Service and Warranty: For main parts,warrnty period is one year from the BL date. During the warranty, if the problem is occuring, please send us problem desctriptions and photos for technical analysis, we will be acting immediately and give solution within 24 hours. From technical analysis,if the problem is because of make, craftsmanship and the manufacturing reason; the relative charges will be borne by seller; if the problem is caused by improper operation, the buyer will take the responsibility and bear the relative charges and seller will try his best provide and other possible support and assistance to solve the problem.
| Model | TH804-3 | ||
| type | 4×4 wheel type | ||
| Overall dimension(mm) | length | 3510 | |
| width | 1320 | ||
| height | 1230 | ||
| wheel tread | front wheel | 960.1000 | |
| rear wheel | 1200-1350 | ||
| Wheel base | 1900 | ||
| Min.Ground clearance | 290 | ||
| structure weight (kg) | 1597 | ||
| Diesel engine | model | LD4TD80 | |
| type | inline water cooled four stroke four cylinder | ||
| rated power (kw) | 58.8 | ||
| rated speed (r/min) | 2200 | ||
| fuel type | diesel | ||
| tire | front wheel | 600-12 | |
| rear wheel | 950-16 | ||
| clutch | dual stage clutch | ||
| steering | cycloid rotary valve ,all hydraulic steering | ||
| transimission | 8F+2R | ||

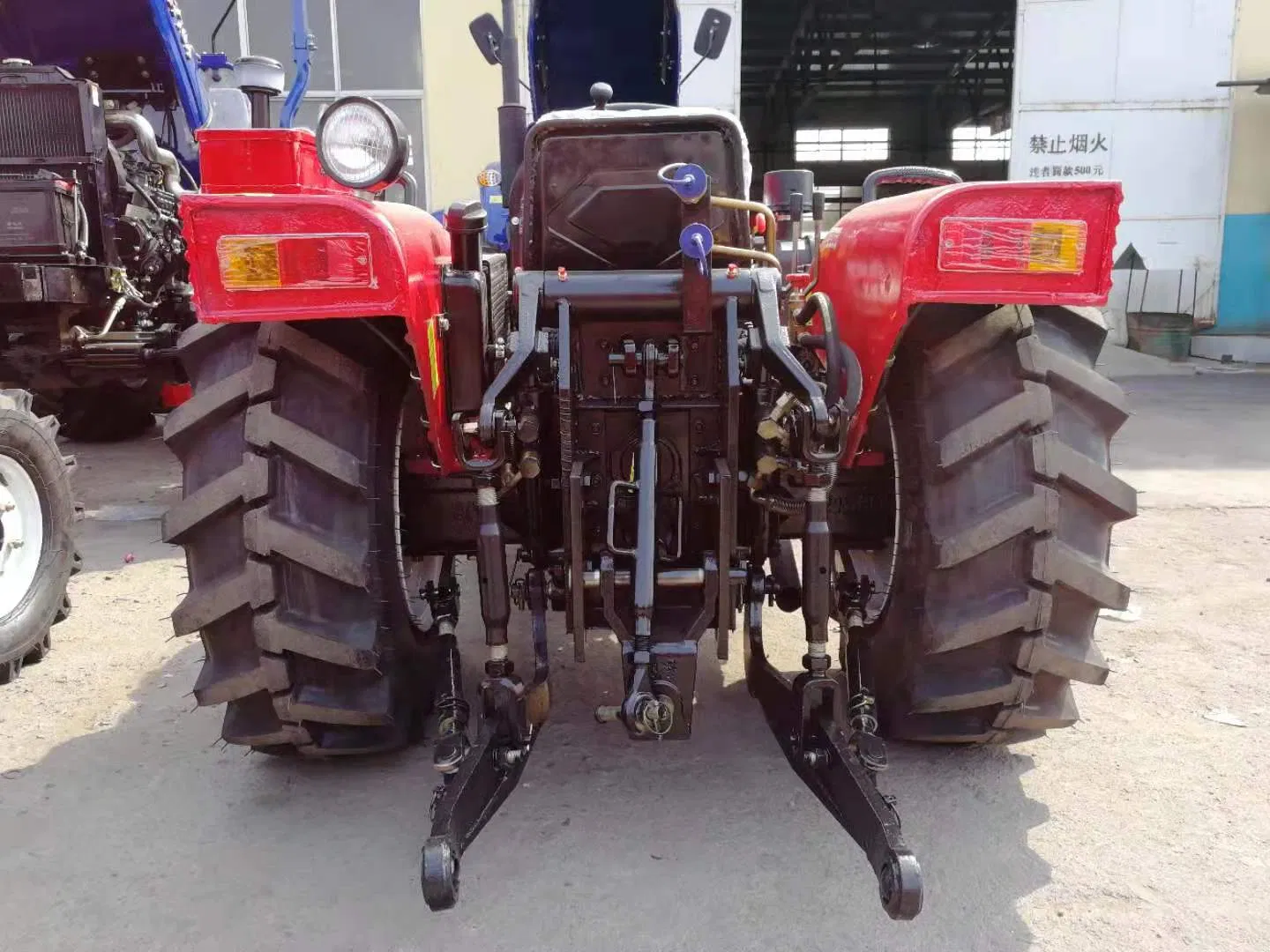

| Suspension type | rear postioned 3-ponit links catageory I | ||
| PTO | type and speed | 540/1000 or 720/1000 | |
| spline size | ø35 6 teeth | ||
2. Characteristics
Strong Power:
The farm tractor is in the top rank among the same industry in China. Its matched power brand can be Laidong
High efficiency:
1.The tractor adopts fully power steering hydraulic brakes system ,three-point linkage with Category I.
2.PTO speed can be selected as 540/1000rpm to be suitable for different farm implements.
3.The tractor independently operated two stage clutch, reasonable 8F+2R shift gears to keep high working efficiency in various field work, transportation and engineering tasks.
High reliability: Strong double pressure lifting device, powerful lifting power, fast lifting speed, stable and reliable.
Comfortable driving experience: Hydraulic steering,cabin with AC, anti-dust, low noise and wide field vision in operation.
3. Quality control on Spares and finished to keep quality and performance consistent.
5. Assembly lines and suffiecient stock
6. Our Tractor 25hp-240hp
The farm implements: Disc plough, disc harrow, cultivator, potato harvestor, mower, front end loader and pbackhoe, snowbrush, hay baler, planter etc.
7.Package: metal frame package or nude package
Service and Warranty: For main parts,warrnty period is one year from the BL date. During the warranty, if the problem is occuring, please send us problem desctriptions and photos for technical analysis, we will be acting immediately and give solution within 24 hours. From technical analysis,if the problem is because of make, craftsmanship and the manufacturing reason; the relative charges will be borne by seller; if the problem is caused by improper operation, the buyer will take the responsibility and bear the relative charges and seller will try his best provide and other possible support and assistance to solve the problem.
